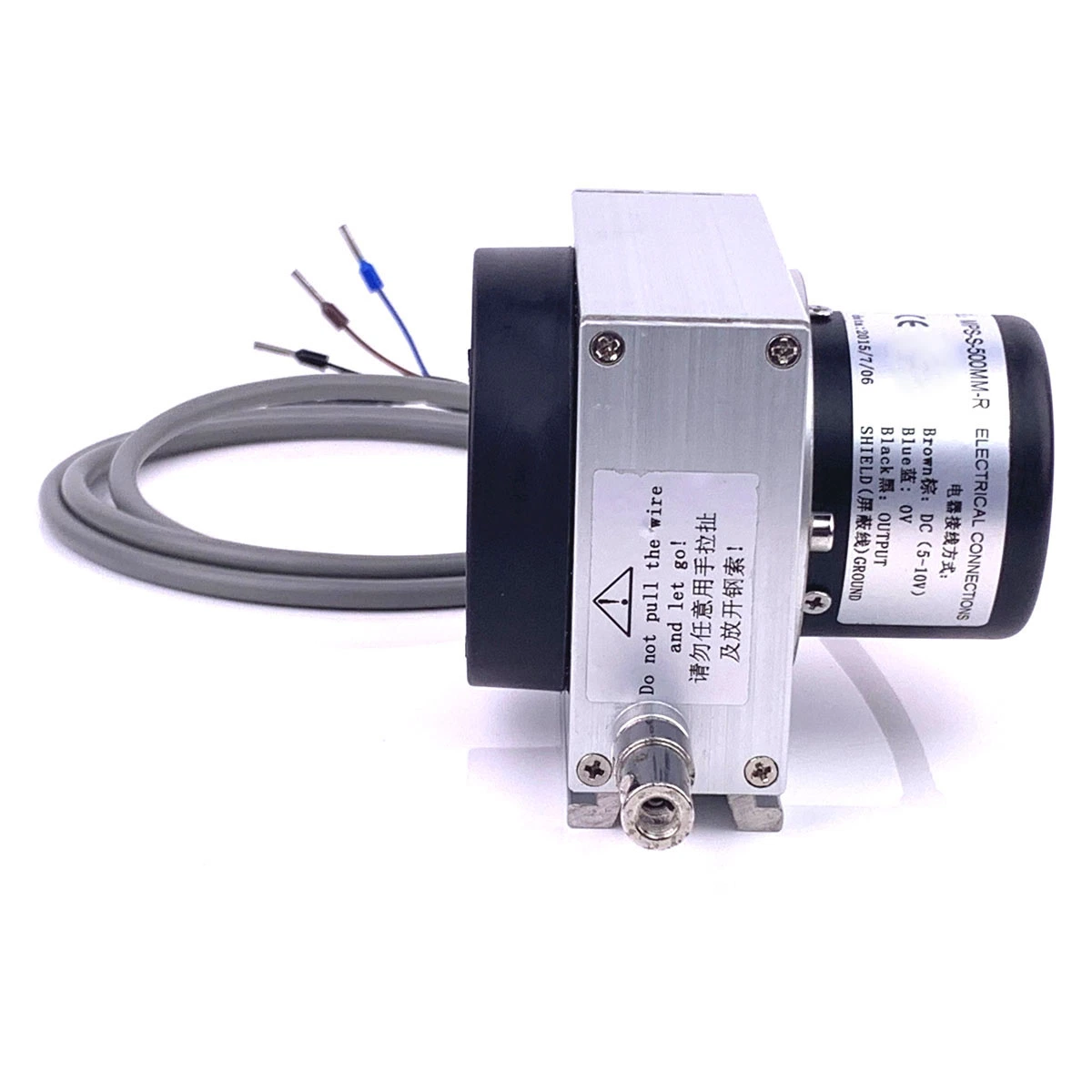

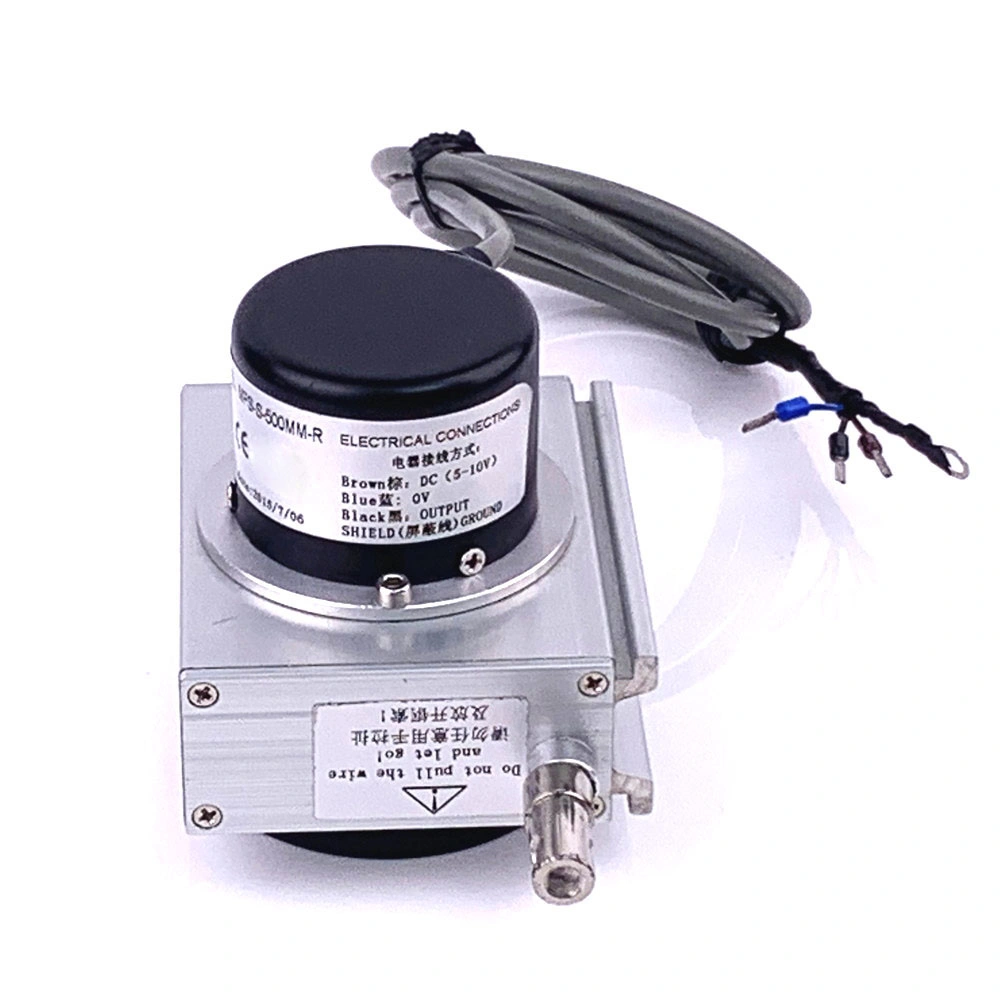

Miran Mps -S-R Draw Wire Displacement Sensor Resistance String Potentiometer
Product DescriptionMiran Mini-type MPS-S-R Measurement Range 100-1000mm Wire Rope Potentiometer Miran Draw Wire Potentiometer MPS type is widely used in storage positioning, dam protections, sluice gate control, screw machines, paper machines, sewing machines, sheet metal machines, printing machin......
Send Inquiry
Product Description

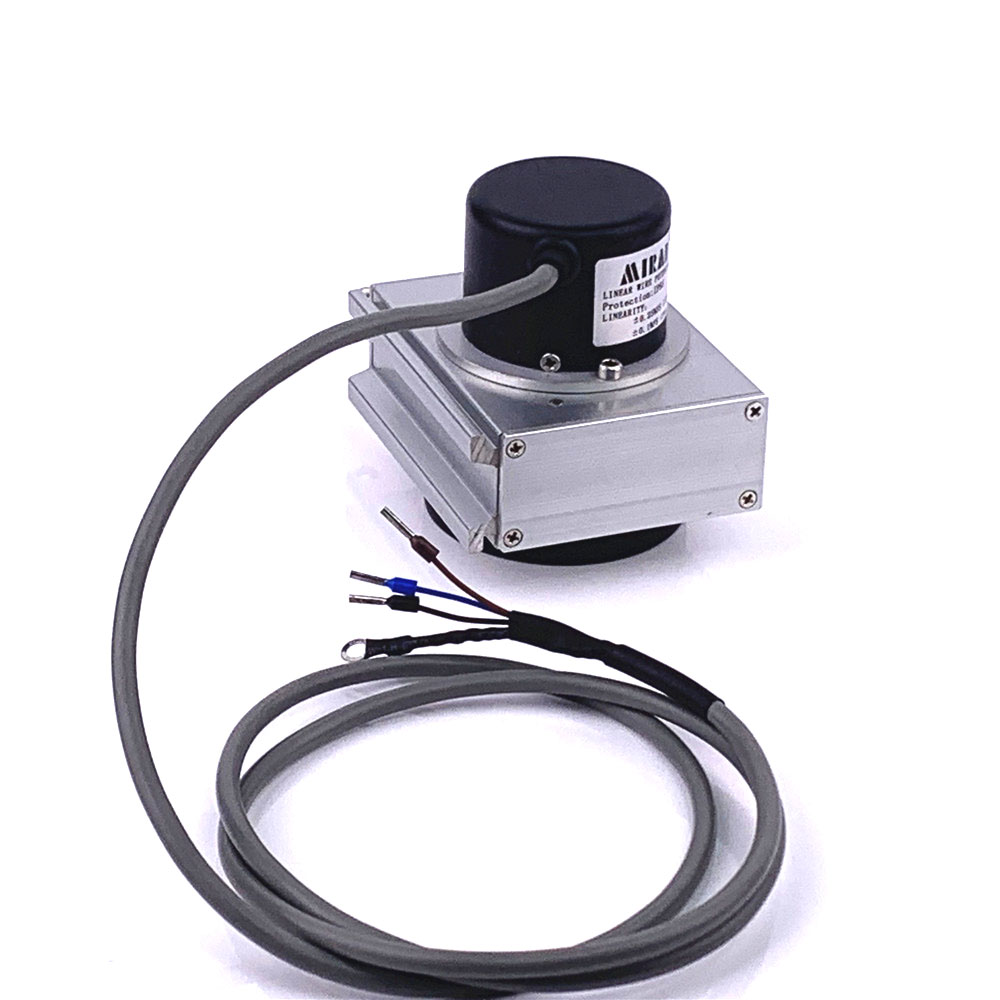

Miran Mini-type MPS-S-R Measurement Range 100-1000mm Wire Rope Potentiometer

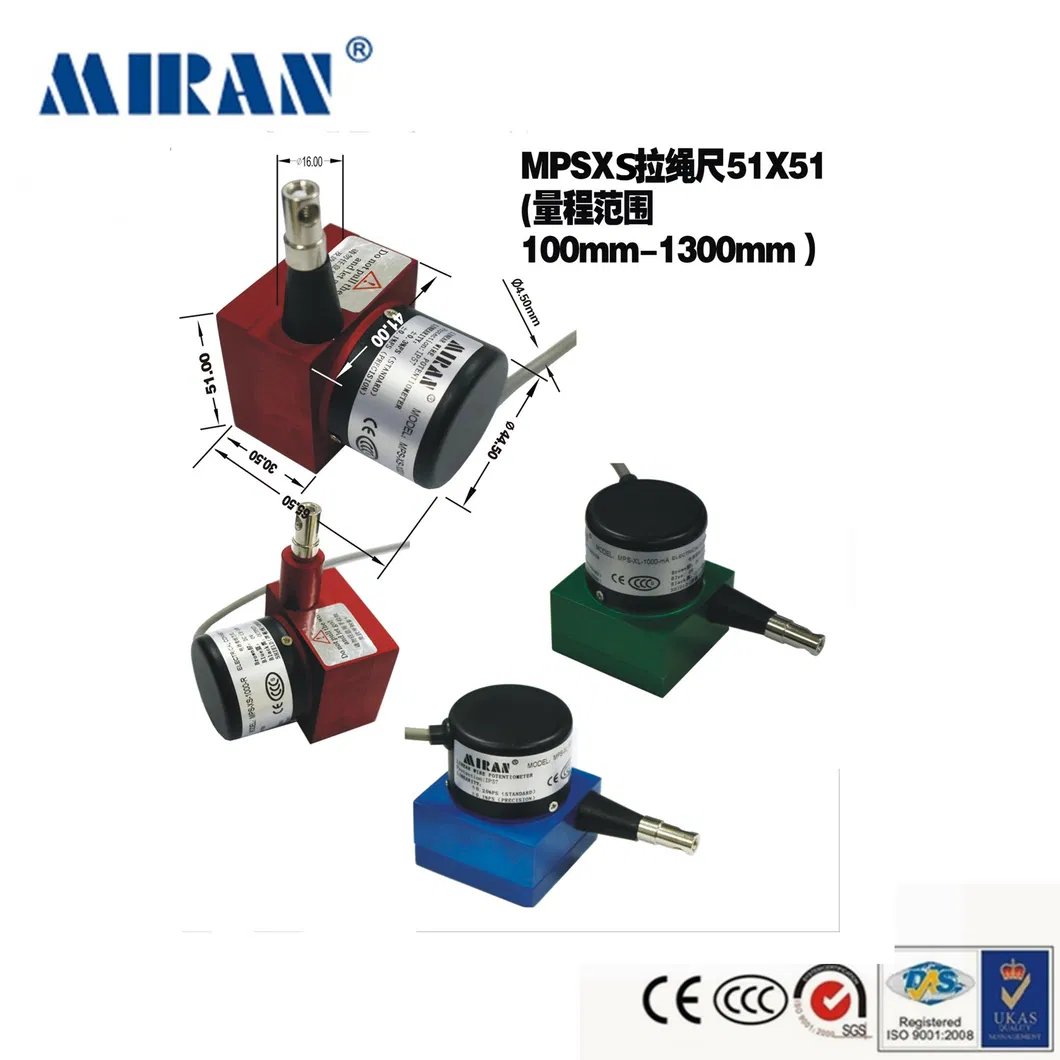

| Miran Draw Wire Potentiometer MPS type is widely used in storage positioning, dam protections, sluice gate control, screw machines, paper machines, sewing machines, sheet metal machines, printing machines, horizontal control equipment, construction machines, industrial robot, injection machines, woodworker machines, elevators, air compressors, hydraulic machines, X-Y axis displacement, liquid level measurements and position control. XXXS:100-200mm XXS:100-800mm XS:100-1000mm S:100-1250mm M:1100-4000mm L:4500-8000mm XL:9000-100000mm There are 6 kinds of output as below,please choose the one you need. R: 0-5KΩ Resistance V1:0-5V V2:0-10V A1:4-20mA with 3 wires A2:4-20mA with 2 wires P:incremental pulse phase output AB phase or ABZ phase. | |
| Electric Specifications of Resistance Wire sensor: | |
| Stroke Length(mm) | (100mm~1250mm) |
| Output Signal | Resistance (Potentiometer) |
| Linearity | ± 0.3%FS(normal standard); ± 0.1%FS(precision) |
| Repeatability | ± 0.02%FS |
| Resolution | Essentially Infinite |
| Wire Measurement | Diameter 0.7mm SUS304 with fluorin-coated,Breaking load at 16kg |
| Sensor Type | Wire-Winding potentiometer |
| Starting Force | ≤600g |
| Max Measuring Speed (back and forth) | 500mm/sec |
| Weight | ≤600g |
| Mechanic Specifications of Resistance Wire sensor: | |
| Input Resistance | 5ΚΩ ± 10%FS(normal); ±5%FS(precision) |
| Rated Power (Watts) | 1W at 70ºC(500mm); 2W at 70ºC(1000mm) |
| Recommended Input Voltage | 12-24VDC |
| Enviroment Specifications of Resistance Wire sensor: | |
| Working Temperature | 0ºC~+70ºC |
| Storage Temperature | -20ºC~+80ºC |
| Vibration | 10Hz to 2000Hz |
| Ingress Protection | IP65 |
| Applications: storage positioning, dam protections, sluice gate control, screw machines, paper machines, sewing machines, sheet metal machines, printing machines, horizontal control equipment, construction machines, industrial robot, injection machines, woodworker machines, elevators, air compressors, hydraulic machines, X-Y axis displacement, liquid level measurements and position control. | |

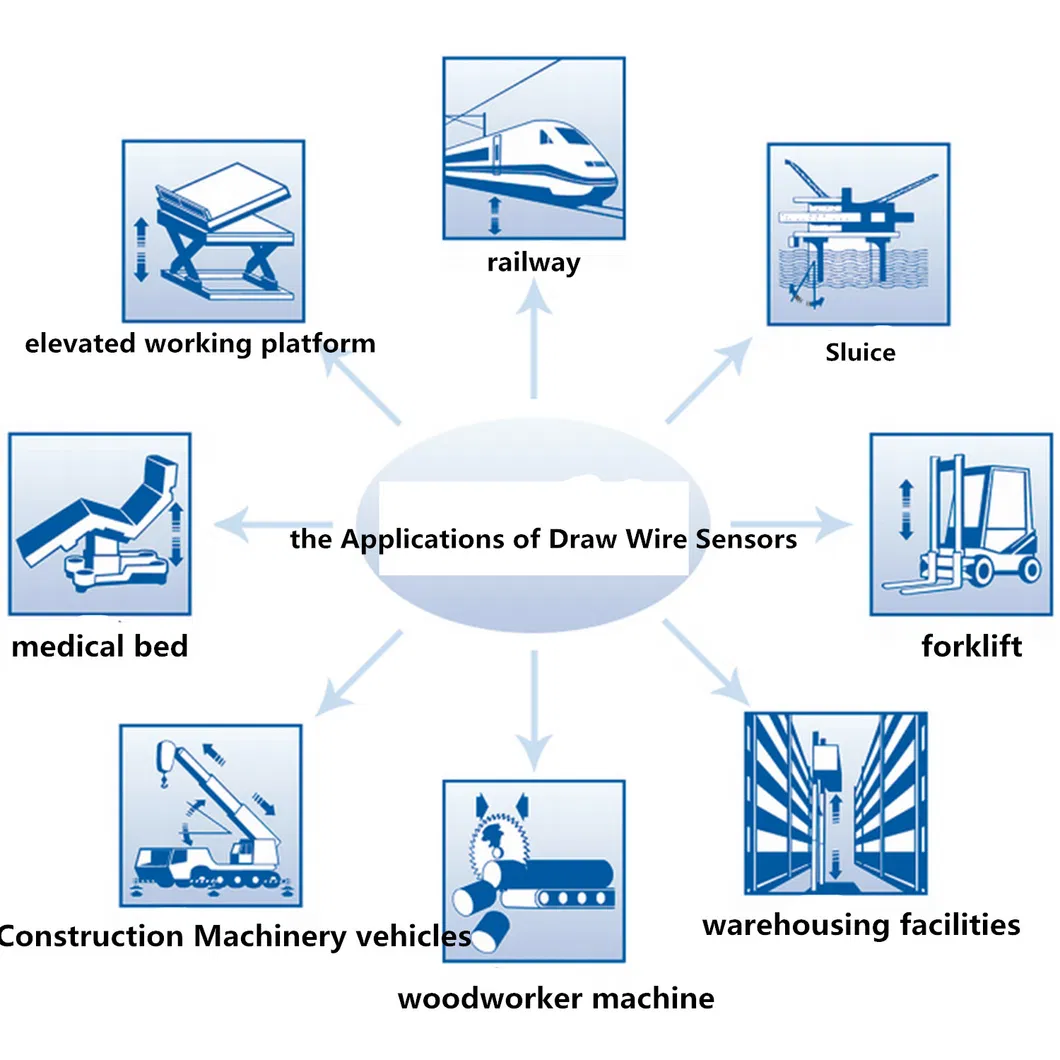

Field of Application

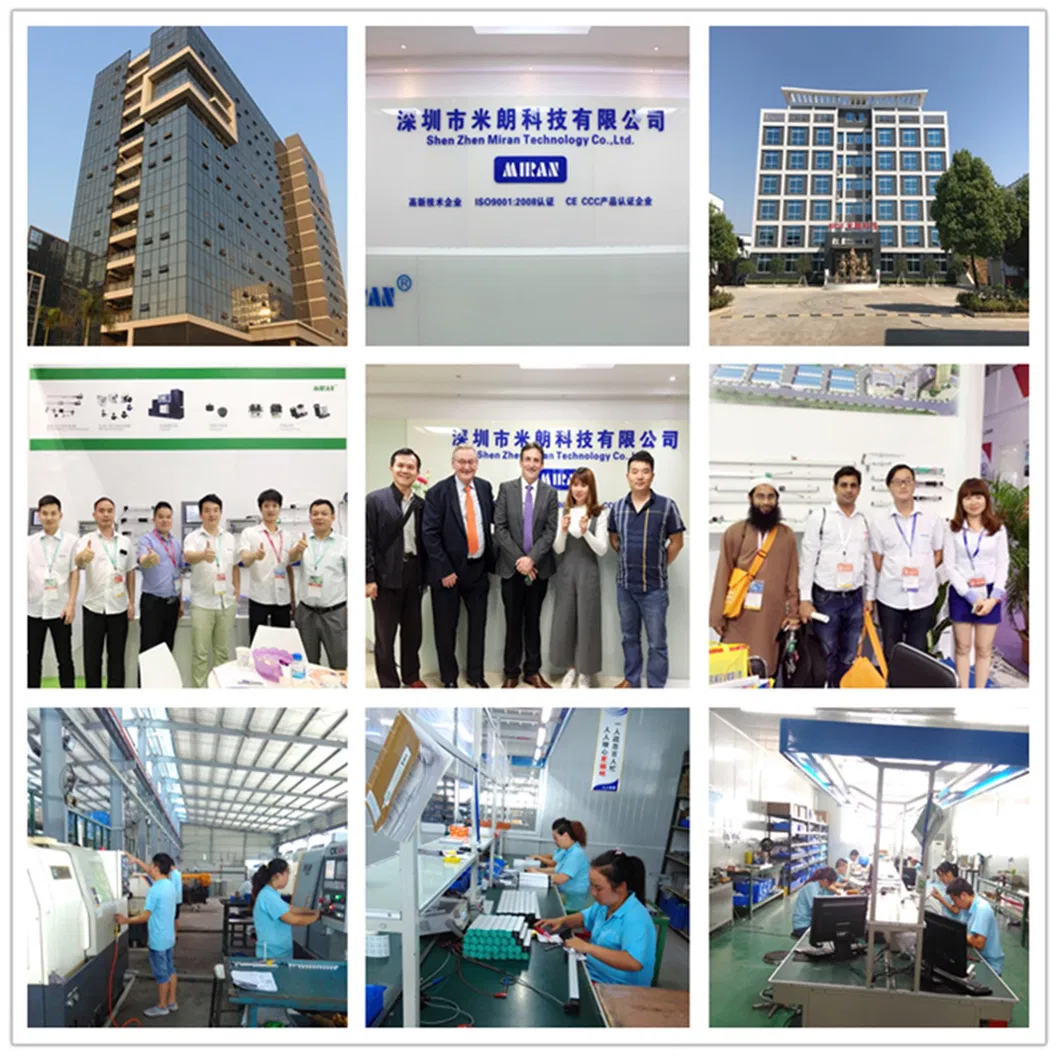

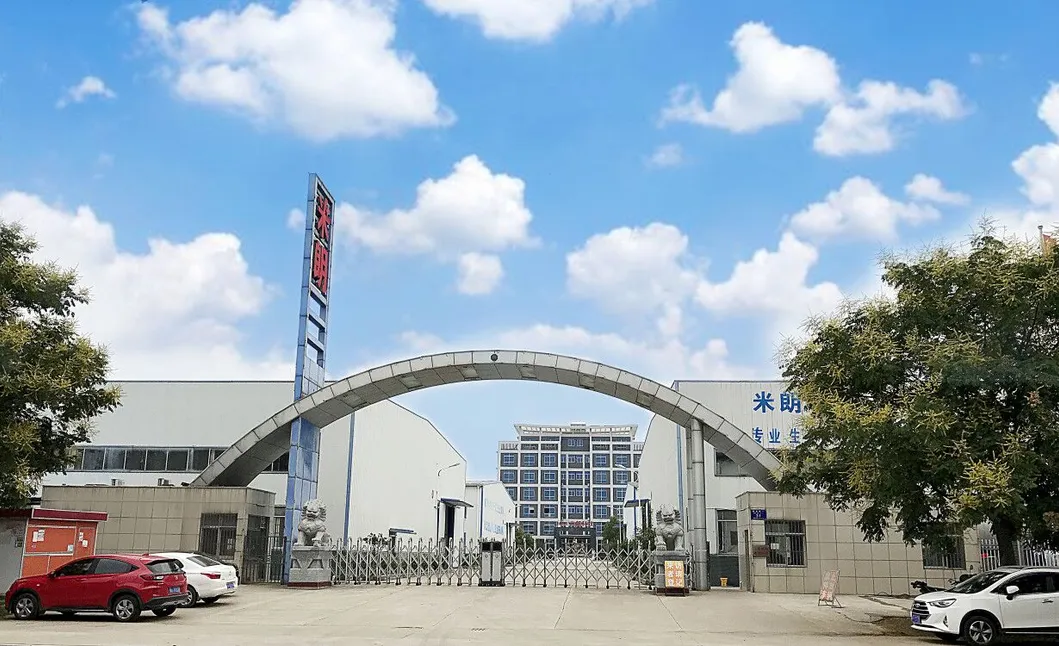

MIRAN Industry Zone

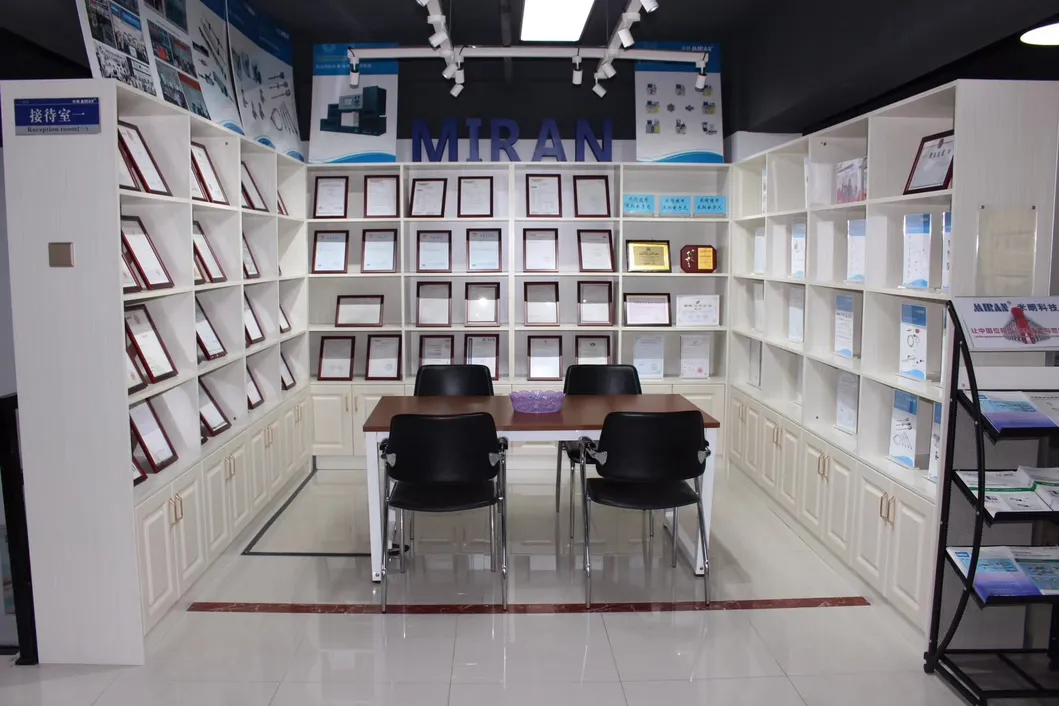

Certificate Show Room

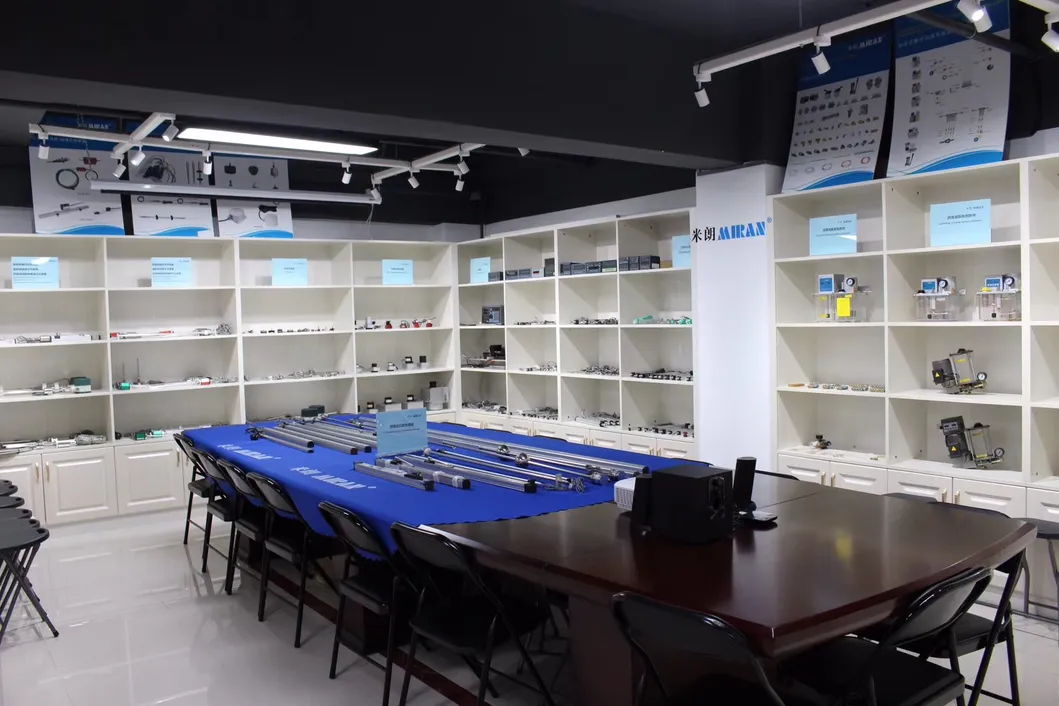

Show Room
