220V 2 Transmitter with 1 Receiver 6 Single Speed Push Button Wireless Remote Control for Grab Crane, Overhead Crane, Single Gider Crane

Product Description

6 Single Speed Push Button Wireless Remote Control for Grab Crane, overhead crane, single gider crane

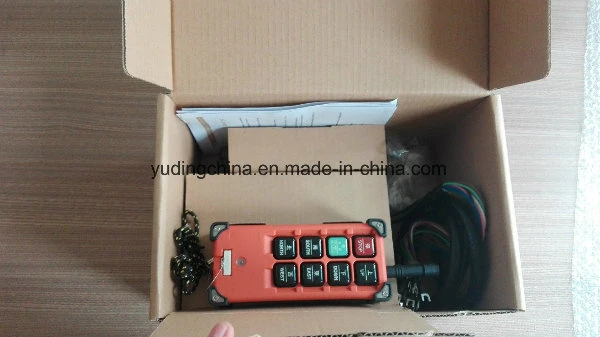

Standard Configuration:
1. One transmitter ;
2. One receiver;
3. One 1m cable connect with receiver
4. One operation and maintain manual.

Our advantage:

1. More than 10 years researching and exporting experience in remote control for crane industry.
2. Well and high quality control, all working process according to ISO9001:2008.
3. CE, FCC & ISO certificates.
4. One year warranty.
5. Sample order acceptable.
6. OEM acceptable.

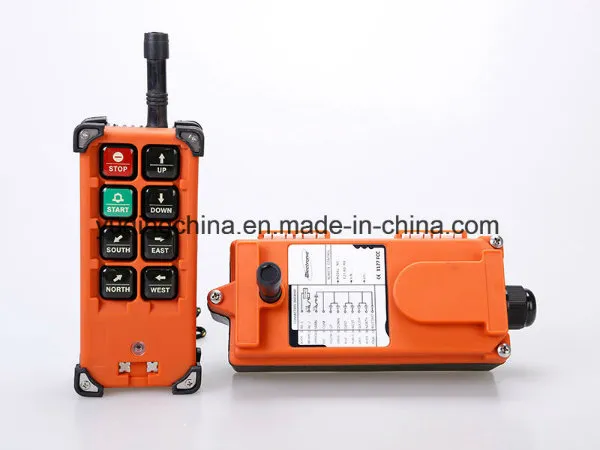

Products Features:

* 8 push buttons with 7 single-speed buttons and 1 stop buttons
* control points up to 6
* With the battery voltage alarm device to cut off the circuit when voltage is insufficient.
* with the Rotate key switch to guarantee the safety.
* set the internal functions by computer interface
* up/down ,east/west , south/ north push button can be set mutual inhibition or not .
* spare 1 key can be set start ,speed up,jump strokes, ordinary etc.

Briefly Introduction:

transmitter:	size :1647546mm	weight: 350g
Receiver:	size:1858585mm	weight:550g

Specification of remote control for crane:

Application	Hoist, winches, lifts, doors and other industrial machine.
Frequency	310.0325~331.165Mhz
Frequency generation:	Crystal (plug in)
Channel	80
Channel Spacing	0.2675MHz
Control motions	6
Control distance	Up to 100m
Certificates	CE, FCC, ISO9001:2008
Number of push button	6 Single speed push button +1 start+1 stop
Unique code	Over 4.3billon unique ID codes .
Working temperature	-35°C ~ +80°C
Enclosure protection class	IP65
Transmitter power	AA-size batteries
Receiver power	AC 380v/220V/110v/48v/ 36v/24v or AC/DC12V
Output capacity	Full sealed relay output with 5 amperes
Warranty	1 year
Material	glass fiber

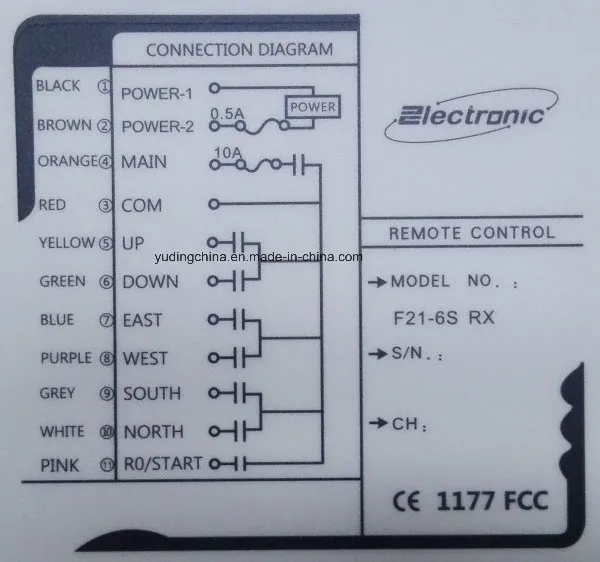

Connection Diagram

220V 2 Transmitter with 1 Receiver 6 Single Speed Push Button Wireless Remote Control for Grab Crane, Overhead Crane, Single Gider Crane

Packing:

1 set / box , 10 box / carton

Application :

Application :Single hook electric cable hoist ,monorails,single speed electric hoist or electric single speed hoist crane,floating crane ,overhead crane ,vehicles equipment ,door control system ,engineering machinery ,lifting platform ,traveling crane ,hydraulic equipment and used for industrial remote control which are under 6 connection.

Remote control is widely used in lifting equipment ,construction machinery , loading/unloading cargo , water supply system , data transmission, the iron smelting and steel- making , automobile manufacturing ,paper making and chemical industry ,steel structure processing ,galvanization ,shipbuilding ,railroad ,bridge ,tunnel construction and other equipment and sites which can by worked by radio controls .
