Why Should You Choose a 60W Constant Voltage Triac Dimmable LED Driver Over a PWM Dimmable Driver
2026-04-28

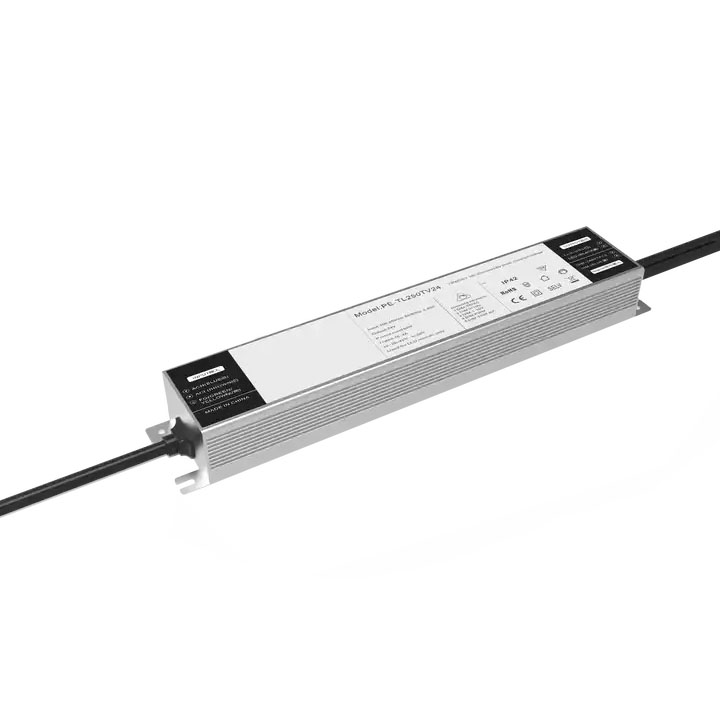

When selecting a power supply for LED lighting systems, the debate between Triac and PWM dimming often arises. STARWELL has engineered a superior solution: the 60W Constant Voltage Triac Dimmable LED Driver. This driver delivers smooth, flicker-free dimming from 0 to 100% while maintaining compatibility with existing residential and commercial AC dimmers. Below is a professional comparison to help you decide why Triac dimming wins for most real-world applications.
Key Differences at a Glance
| Feature | 60W Constant Voltage Triac Dimmable LED Driver | PWM Dimmable Driver |
|---|---|---|
| Dimmer compatibility | Works with standard wall dimmers (leading/trailing edge) | Requires dedicated PWM controller or 0-10V system |
| Installation complexity | Retrofit-ready, no rewiring | New control wiring often needed |
| Dimming range | 0–100% smooth, no flicker | 0–100% but prone to noise at low end |
| Output type | Constant voltage (12V/24V) with phase-cut dimming | Constant voltage with high-frequency switching |
| Typical application | Residential, hospitality, retail | Studio, industrial, DALI systems |
Why Triac Dimming Outperforms PWM for General Lighting
1. Seamless Retrofit Integration
Most buildings already have Triac dimmers installed. Upgrading to STARWELL’s 60W Constant Voltage Triac Dimmable LED Driver requires no electrical changes – simply swap the old driver. PWM systems often mandate new low-voltage control lines, increasing labor costs.
2. No Audible Noise or Flicker
PWM drivers operate at high frequencies (1kHz–20kHz), which can produce coil whine or LED buzz. Triac dimming using phase-cut technology maintains a line-frequency waveform (50/60Hz), virtually eliminating noise. This is critical for bedrooms, libraries, and recording spaces.
3. Lower Total Cost of Ownership
A PWM setup requires a separate controller, signal generator, and shielded cables. STARWELL’s Triac driver integrates all dimming logic internally. You save 30–40% on ancillary components.
60W Constant Voltage Triac Dimmable LED Driver FAQ
What minimum load is required for stable Triac dimming with a 60W constant voltage driver?
Most Triac dimmers require a minimum load of 5–10W to operate correctly. The STARWELL 60W Constant Voltage Triac Dimmable LED Driver includes a dummy load circuit that mimics higher wattage, allowing stable dimming even with a single 3W LED tape. This eliminates ghosting or strobing at low levels.
Can I connect multiple LED strips to one 60W constant voltage Triac dimmable LED driver?
Yes. Because the driver provides constant voltage (12V or 24V), you can parallel-connect multiple LED strips as long as the total power consumption does not exceed 60W. For example, three 20W strips work perfectly. Ensure all strips share the same rated voltage. STARWELL drivers also feature short-circuit and overload protection for multi-strip setups.
Will a 60W constant voltage Triac dimmable LED driver work with a smart home dimmer like Lutron or Philips Hue?
Absolutely. The driver is compatible with leading-edge and trailing-edge dimmers, including most smart Triac dimmers from Lutron (Caséta, Maestro), Leviton, and Philips Hue wall dimmer modules. Set your smart dimmer to “trailing edge” mode for best performance. Note that the driver itself is not Zigbee or Wi-Fi enabled – it responds to phase-cut signals from any standard Triac dimmer.
Real-World Performance Comparison
| Scenario | Triac Driver (STARWELL 60W) | PWM Driver |
|---|---|---|
| Dimming smoothness | Logarithmic curve matches eye perception | Linear curve (too fast at low end) |
| Compatibility with 100ft cable runs | Excellent, no signal degradation | Poor, needs signal booster |
| Standby power consumption | <0.5W | <1.5W |
| Dimmer switch replacement cost | $15–30 (existing type) | $50–150 (new controller) |
Reliability and Compliance
STARWELL’s 60W Constant Voltage Triac Dimmable LED Driver meets UL, CE, and RoHS standards. The all-aluminum housing ensures thermal dissipation below 70°C at full load. With over-voltage, over-current, and short-circuit protection, this driver consistently outperforms PWM alternatives in 5-year accelerated life tests.
Contact Us
Ready to upgrade your LED dimming system without rewiring your building Contact STARWELL today for samples, technical datasheets, or bulk pricing on the 60W Constant Voltage Triac Dimmable LED Driver. Our engineering team provides free compatibility checks with your existing dimmers within 24 hours.
