Why is the Halbach Array Magnet considered ideal for brushless DC motors

When engineers evaluate high-performance motor topologies, the Halbach Array Magnet consistently emerges as a transformative solution. Unlike conventional permanent magnet arrangements, a Halbach Array Magnet creates a one-sided magnetic flux while cancelling the field on the opposite side. This unique property makes it exceptionally suited for brushless DC motors (BLDC). At New-Mag, we specialize in precision-engineered magnetic assemblies that leverage this principle to deliver superior torque density and efficiency.

Core advantages of Halbach Array Magnets in BLDC motors

Why BLDC motors benefit specifically

A BLDC motor relies on electronic commutation and a permanent magnet rotor. The Halbach Array Magnet improves this system in three measurable ways:

1. Higher torque per ampere – By concentrating flux on the air gap side, more magnetic energy converts into rotational force.

2. Lighter rotor construction – Without a heavy ferromagnetic yoke, the rotor accelerates faster and reduces bearing wear.

3. Lower cogging torque – The sinusoidal field distribution inherent to a Halbach Array Magnet minimizes parasitic vibrations.

New-Mag manufactures custom Halbach Array Magnet assemblies for automotive, aerospace, and robotic BLDC applications. Our ring-segmented and bonded Halbach designs have demonstrated up to 30% efficiency gains over conventional arrays in independent tests.

Halbach Array Magnet FAQ

What is the most difficult part of manufacturing a Halbach Array Magnet for a BLDC motor

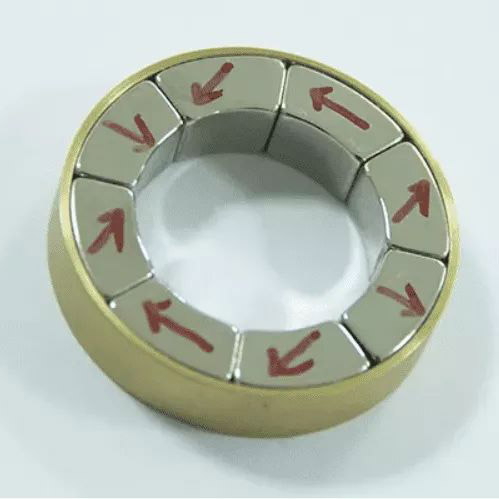

The most challenging aspect is maintaining precise magnetization orientation across each segment, especially in continuous ring geometries. A true Halbach Array Magnet requires each magnetic vector to rotate progressively (e.g., 45° increments for 8-segment rings). Any deviation creates flux cancellation and reduces torque. New-Mag uses multi-pole impulse magnetizing fixtures and finite element analysis to ensure vector accuracy within ±1 degree, even for diameters under 20 mm.

Can a Halbach Array Magnet completely replace back iron in all BLDC motors

No, but in most low-to-medium power BLDC motors, yes. For high-speed spindles or drone motors, the Halbach Array Magnet eliminates back iron entirely, reducing mass by 40–50%. However, for very high torque density applications (e.g., electric vehicle traction motors over 50 kW), a thin carbon-fiber sleeve or minimal back iron may still be used for mechanical integrity. New-Mag provides hybrid designs that balance flux concentration and structural safety.

How does temperature affect a Halbach Array Magnet in continuous BLDC operation

The same temperature limits apply as to standard neodymium magnets, but the Halbach Array Magnet configuration does not inherently alter thermal stability. For BLDC motors operating above 120°C, New-Mag recommends our SH (150°C) or UH (180°C) grade Halbach Array Magnet assemblies with diffusion-processed dysprosium. Thermal cycling tests show that properly bonded Halbach rings retain over 95% of flux after 2000 hours at rated temperature.

Conclusion

The Halbach Array Magnet is not merely an alternative but an evolutionary step for brushless DC motors. Its ability to generate stronger, cleaner magnetic fields with less material directly translates to smaller, lighter, and more efficient motors. New-Mag delivers ready-to-install Halbach Array Magnet rotors for BLDC applications from 5W to 15kW.

Contact us today for a custom simulation of your BLDC motor design. Send your air gap requirements, operating temperature, and target torque to our engineering team – we will return a Halbach Array Magnet proposal with 3D field plots and mechanical drawings within 48 hours.
