Why Is Copper Braid Essential for Electrical Applications?
2025-09-11
Copper braid, often referred to as braided copper wire or copper grounding braid, is a flexible conductor made by intertwining multiple copper strands into a woven structure. This unique braiding technique results in a product that offers high electrical conductivity, exceptional flexibility, and mechanical strength. Because of these advantages, copper braid is widely used in electrical, automotive, industrial, and telecommunication applications.
But what makes copper braid so important in modern industries? The answer lies in its ability to provide safe electrical connections, effective shielding from electromagnetic interference (EMI), and strong grounding protection in systems where stability and safety are critical.
Unlike rigid copper conductors, copper braids can easily bend and adapt to different environments without losing their conductive efficiency. This makes them an ideal solution for moving parts, high-vibration machinery, and situations where frequent electrical connections and disconnections occur.
Copper braid is manufactured in various forms, such as tinned copper braid, bare copper braid, and even silver-plated versions depending on the application. Its versatility allows engineers and manufacturers to choose the exact specifications that meet their electrical and mechanical requirements.
The demand for copper braid has grown in parallel with industries’ increasing reliance on stable, durable, and flexible electrical solutions. From aerospace to renewable energy projects, copper braid plays a silent but critical role in ensuring operational safety and performance.
Key Features and Technical Parameters of Copper Braid
To evaluate copper braid professionally, it’s essential to look at the product parameters that define its performance. Below is a technical overview of copper braid specifications:
| Parameter | Description |
|---|---|
| Material | High-conductivity copper (bare, tinned, or silver-plated) |
| Structure | Braided strands of fine copper wires woven into flat or tubular shapes |
| Wire Diameter Range | 0.05 mm – 0.3 mm per strand |
| Standard Cross-sectional Area | 1 mm² – 500 mm² (custom sizes available) |
| Electrical Conductivity | ≥ 99.9% IACS (International Annealed Copper Standard) |
| Flexibility | Excellent; designed for dynamic and static applications |
| Operating Temperature Range | -60°C to +200°C (depending on plating and insulation, if applicable) |
| Surface Finish | Bare copper, tinned copper, or silver plating for enhanced corrosion resistance |
| Applications | Grounding, shielding, bonding, flexible connectors, EMI suppression |
| Standards | RoHS compliant, IEC, and ASTM standards available upon request |

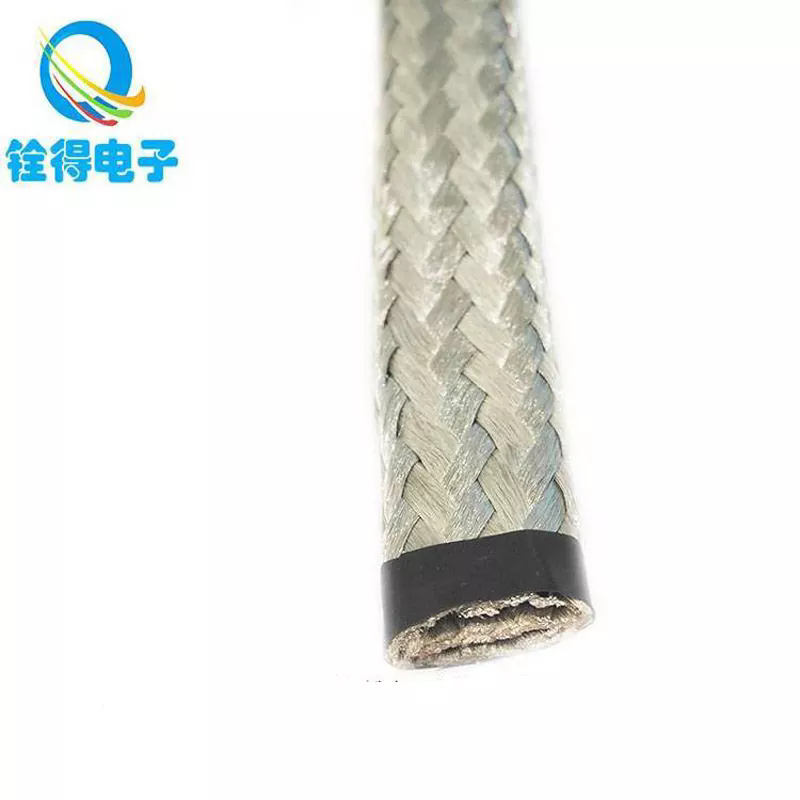

The table demonstrates how copper braid is engineered to meet diverse industry requirements. Tinned copper braid, for example, is highly resistant to corrosion and oxidation, making it suitable for outdoor or marine environments. Bare copper braid, on the other hand, is favored in indoor installations where maximum conductivity is required without additional coatings.
Engineers appreciate copper braid because it balances electrical performance, durability, and adaptability. Its lightweight yet strong design allows for simplified installations while still guaranteeing high safety standards.
Applications: How Copper Braid Powers Modern Industries
The strength of copper braid lies in its versatility across industries. Its applications span a wide range of environments, each highlighting a different aspect of its functionality:
-
Electrical Grounding
Copper braid is extensively used as a grounding conductor to protect equipment and personnel from electrical surges and faults. It provides a secure path for leakage current, preventing accidents and damage. -
Automotive Industry
In vehicles, copper braid ensures reliable grounding between components such as batteries, chassis, and engines. Its flexibility makes it perfect for handling the constant vibration and movement in automotive systems. -
Telecommunications and Electronics
Copper braid acts as an EMI shield in cables, reducing electromagnetic interference in sensitive devices. This ensures stable performance in communication networks and electronic equipment. -
Aerospace and Railway Systems
Safety and reliability are paramount in these industries. Copper braid is used for bonding, grounding, and shielding to guarantee uninterrupted operations even in demanding conditions. -
Renewable Energy and Power Systems
With the rise of solar and wind energy projects, copper braid is increasingly deployed for grounding and flexible connections in power transmission systems. -
Industrial Machinery
In factories and heavy-duty equipment, copper braid offers flexible current-carrying capacity, supporting both static and moving components without wear and tear.
These real-world applications show how copper braid continues to evolve alongside technological advancements. Wherever there is a need for stable conductivity and flexibility, copper braid delivers.
FAQs and Why Quande Is Your Trusted Copper Braid Supplier
FAQ 1: What is the difference between copper braid and copper cable?
Answer: Copper braid is made of fine copper wires woven together, creating a flat or tubular braid with superior flexibility and EMI shielding properties. Copper cable, in contrast, is usually a solid or stranded conductor with insulation designed for general power transmission. While copper cables carry electricity efficiently, copper braid is better suited for grounding, bonding, shielding, and flexible connections.
FAQ 2: How do I choose the right type of copper braid for my project?
Answer: Choosing the right copper braid depends on factors such as environment, required flexibility, electrical load, and exposure to corrosion. For outdoor or marine environments, tinned copper braid is recommended because of its corrosion resistance. For maximum conductivity indoors, bare copper braid is often sufficient. When projects demand both durability and resistance to oxidation at high temperatures, silver-plated copper braid may be the best solution.
Why Copper Braid Is the Backbone of Reliable Electrical Connections
Copper braid has become an indispensable material in modern electrical and industrial systems because of its high conductivity, flexibility, and protective capabilities. From grounding to shielding and bonding, it ensures safety and efficiency across industries like automotive, aerospace, telecommunications, and renewable energy.
When selecting copper braid, choosing a reliable supplier ensures consistent quality, compliance with global standards, and customization for specific applications. Quande provides a comprehensive range of copper braid solutions designed for high performance and long-term reliability.
If you are looking for professional-grade copper braid tailored to your project requirements, contact us today to discuss specifications and solutions that best fit your needs.
