Why Is Braided Copper Shielding Tube the Future of Electromagnetic Protection?

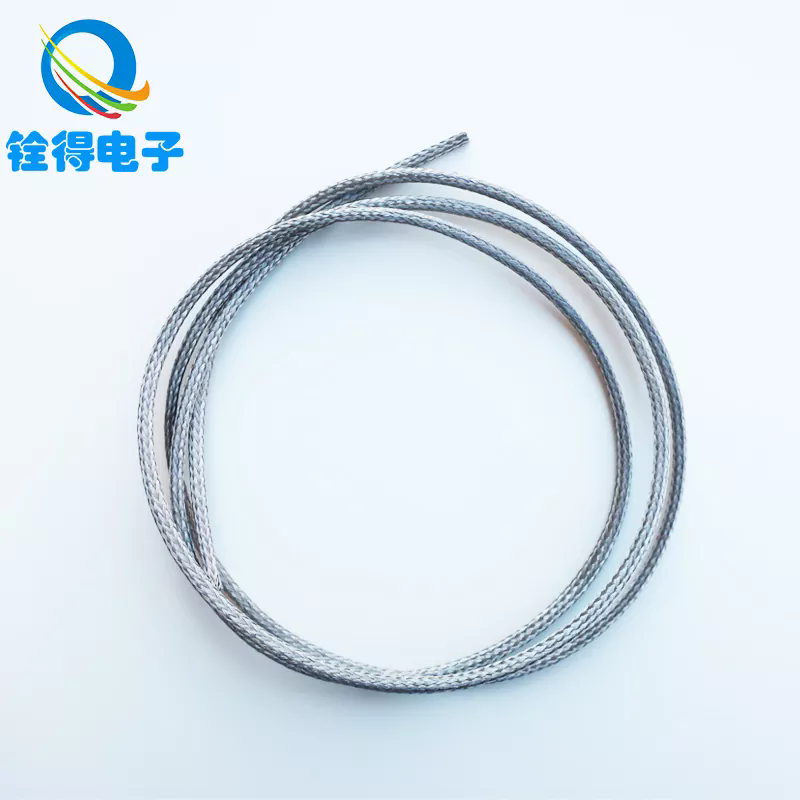

In the field of electrical and electronic engineering, Braided Copper Shielding Tubes have become one of the most reliable and effective materials for protecting cables and components against electromagnetic interference (EMI) and radio frequency interference (RFI). As industries expand their reliance on data transmission, automation, and power electronics, the need for durable and flexible shielding materials grows exponentially. A braided copper tube is a tubular structure woven from fine copper wires. Its primary function is to act as a conductive barrier that absorbs and redirects electromagnetic noise away from sensitive circuits and systems.

The copper braiding structure allows for excellent coverage and flexibility, which ensures both electrical continuity and mechanical protection. Unlike solid shielding, which can crack under bending or vibration, a braided shield maintains stable performance even in harsh environments such as aerospace systems, automotive wiring, and industrial automation lines.

Below is a detailed parameter table illustrating the key technical characteristics of a standard Braided Copper Shielding Tube:

This data underscores why the braided copper shielding tube remains a preferred choice across numerous sectors—from telecommunications and energy systems to automotive and military applications.

Why Is Braided Copper Shielding Tube So Widely Used in Modern Industries?

The answer lies in its unique combination of electrical performance, mechanical resilience, and adaptability. With the continuous advancement of electronic devices, EMI issues have become a major challenge affecting signal quality, communication stability, and equipment longevity. Braided copper shielding tubes directly address these concerns through several key advantages:

a. Superior Electromagnetic Protection

The dense copper braiding creates a low-resistance path that effectively absorbs and dissipates external interference. This helps maintain clean signal transmission even in complex environments such as industrial plants or aerospace applications.

b. High Mechanical Flexibility

Because of its woven design, the tube can bend, twist, and stretch without losing shape or conductivity. This property makes it suitable for cable assemblies requiring frequent motion or installation in narrow spaces.

c. Corrosion and Heat Resistance

Copper, especially when tinned or silver-plated, resists corrosion caused by humidity, oxidation, and chemical exposure. This ensures long service life even in outdoor or marine environments.

d. Cost Efficiency and Customization

Braided copper shielding tubes can be manufactured in a range of diameters, densities, and finishes, allowing customization based on specific performance requirements. Compared to solid shielding or foil wraps, they offer a balanced cost-to-performance ratio for both small-scale and mass-production needs.

e. Environmental Compliance

In line with modern sustainability and safety standards, most high-quality shielding tubes, such as those produced by Quande, are fully RoHS and REACH compliant. This ensures that the materials are free of harmful substances while maintaining high shielding integrity.

In short, braided copper shielding tubes combine science and engineering precision to deliver unmatched protection against electromagnetic hazards, ensuring performance stability for decades.

How Is Braided Copper Shielding Tube Manufactured and Installed?

Understanding the production and installation process helps reveal why these tubes perform so efficiently.

Manufacturing Process

1. Wire Drawing – High-purity copper rods are drawn into fine strands to achieve the desired diameter.

2. Annealing – The copper wires are heat-treated to increase flexibility and reduce brittleness.

3. Braiding – Multiple wires are interlaced into a tubular form using advanced braiding machines that maintain consistent density and coverage.

4. Surface Treatment – The finished tube is either tinned or silver-plated to enhance conductivity and oxidation resistance.

5. Quality Inspection – Each batch undergoes rigorous EMI shielding, tensile strength, and corrosion tests to ensure compliance with international standards.

Installation Process

1. Cable Preparation – The cable is measured and cleaned to ensure full contact with the braid.

2. Sleeving – The braided tube is slid over the cable, with ends properly secured using heat shrink tubing or conductive clamps.

3. Grounding – To maximize shielding performance, both ends of the braid are connected to a grounding point, creating a closed-loop conductive path.

4. Final Testing – Electrical continuity and resistance are checked to verify system integrity.

This manufacturing precision and structured installation process make braided copper shielding tubes a vital component for reliable electrical performance in multiple applications, including automotive harnesses, medical equipment, military electronics, and high-speed data systems.

What Are the Common Questions About Braided Copper Shielding Tubes?

Below are two of the most frequently asked questions from engineers, installers, and manufacturers regarding the use and maintenance of braided copper shielding tubes:

Q1: How do you choose the right braid density for optimal shielding?
A1: Braid density directly affects EMI suppression efficiency. For high-frequency or highly sensitive circuits, choose a coverage rate between 90–95%. Lower coverage (around 80–85%) is sufficient for general applications like power cables or mechanical protection. The higher the density, the greater the attenuation of interference—but it also increases weight and material cost. A balanced selection based on the operating environment ensures both performance and economy.

Q2: Can braided copper shielding tubes be reused or re-soldered during maintenance?
A2: Yes, in most cases. Braided copper tubes, especially tinned or silver-plated ones, can be re-soldered without significant loss of conductivity. However, if the braid has experienced corrosion, mechanical fatigue, or oxidation, replacement is recommended to maintain consistent shielding efficiency. For long-term reliability, always inspect the surface for discoloration or structural deformation before reuse.

Future Trends and Industry Outlook for Braided Copper Shielding Tubes

As the world advances toward 5G networks, autonomous vehicles, and electrified infrastructure, the role of shielding materials becomes more critical. The demand for lightweight, high-conductivity, and eco-friendly shielding solutions is driving innovation in copper braiding technology.

Key Future Developments Include:

• Hybrid Shielding Designs: Integration of copper with aluminum or conductive polymers to achieve lighter yet durable shielding.

• Nanocoating Technologies: Surface treatments that improve corrosion resistance while minimizing conductivity loss.

• Automation in Braiding Processes: AI-controlled machinery to ensure higher precision and uniformity.

• Sustainable Copper Recycling: Environmentally responsible methods for reclaiming and reusing copper in production cycles.

In the next decade, braided copper shielding tubes will not only protect electrical systems but also evolve as part of the sustainability and smart-manufacturing revolution. Their balance of conductivity, flexibility, and environmental safety ensures they remain a cornerstone of next-generation EMI protection materials.
