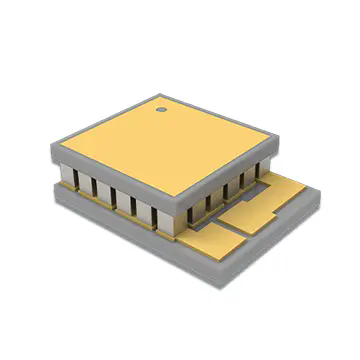

Why Can Two Thermoelectric Coolers With Similar Rated Specifications Deliver Different Results?

A procurement manager orders samples of Thermoelectric Coolers from two suppliers. Both samples are rated 50 W, 12 V, and both use a single-stage Peltier module. The manager installs both samples in identical insulated boxes and runs a pull-down test at 25°C ambient. Sample A reaches 3°C inside the box after 30 minutes. Sample B reaches only 10°C. The manager checks the current draw: both are drawing 4.2 A at 12 V. The electrical input is the same. The cooling output is not. The difference is in the thermal design of the cooler assembly. This guide explains the factors that cause two nominally identical Thermoelectric Coolers to deliver different results and how to test for them before placing a bulk order.

1. Why Does the Heat Sink Determine the Real Cooling Capacity?

The Peltier module moves heat from the cold side to the hot side. The amount of heat that can be moved depends on the temperature difference across the module. If the hot side cannot dissipate the heat to the ambient air, the hot side temperature rises, and the temperature difference across the module increases. The module's cooling capacity decreases as the temperature difference increases. The heat sink determines how effectively the hot side is cooled. A larger heat sink with a higher fin density and a more powerful fan will maintain a lower hot-side temperature, which allows the module to deliver more cooling to the box. The table below shows the effect of heat sink thermal resistance on cooling performance for a 50 W TEC.

Sample A likely has a heat sink thermal resistance of 0.15 to 0.20°C/W. Sample B likely has a thermal resistance of 0.35 to 0.50°C/W. The difference in cooling capacity is 2 to 3 times, even though the electrical input is the same. In our factory, we specify the heat sink thermal resistance for each Thermoelectric Coolers model and test it under controlled conditions. Fuzhou X-Meritan Technology Co., Ltd. has been designing thermoelectric cooler assemblies for over 12 years.

2. How Does the Thermal Interface Material Affect Performance?

The thermal interface material (TIM) is the layer between the Peltier module and the heat sink and between the module and the cold plate. The TIM fills the microscopic air gaps between the surfaces and reduces the thermal contact resistance. If the TIM is poorly applied, or if the wrong type is used, the contact resistance increases, and the cooling performance drops. The table below shows the effect of TIM thermal conductivity on the temperature difference across the module.

3. How Does the Operating Point Affect COP and Cooling Output?

A Peltier module has a characteristic curve of cooling capacity versus current. The cooling capacity increases with current up to a maximum, and then decreases. The COP (coefficient of performance) is the cooling capacity divided by the electrical input power. The COP decreases as the current increases. The operating point is determined by the voltage and the module resistance. Two suppliers may use different module grades with different internal resistance, even though the rated voltage and power are the same. The table below shows the performance of two 50 W modules with different internal resistance.

The high-performance module draws more current and delivers more cooling at 12 V. The standard module draws less current and delivers less cooling. If the power supply is limited to 4 A, the high-performance module will be current-limited and will not reach its full potential. This is why the power supply must be matched to the module. In our factory, we select the module grade based on the power supply and the cooling requirement. Fuzhou X-Meritan Technology Co., Ltd. provides the module characteristic curve for each Thermoelectric Coolers model.

4. How Should You Test Thermoelectric Coolers Before Ordering?

The most reliable way to compare two Thermoelectric Coolers is to perform a pull-down test under identical conditions. The test should measure the internal temperature at regular intervals, the ambient temperature, the current draw, and the hot-side temperature. The test should run for at least 60 minutes or until the internal temperature stabilizes. The table below shows the test parameters and the acceptance criteria.

In our factory, we perform a pull-down test on every Thermoelectric Coolers prototype before it is released for production. We also provide a test report with the sample shipment so that the customer can verify the performance. X-Meritan recommends that buyers test at least three samples from each supplier before making a decision. The sample that performs best in the pull-down test is not necessarily the one with the highest rated power. It is the one with the best thermal design.

Summary for Buyers and Product Managers

Two Thermoelectric Coolers with similar rated specifications can deliver different results because the rated specifications do not capture the thermal design of the assembly. The heat sink thermal resistance, the thermal interface material, the module grade, and the operating point all affect the actual cooling performance. The only reliable way to compare two coolers is to perform a pull-down test under identical conditions. The test should measure the internal temperature, the current draw, and the hot-side temperature. By understanding these factors, buyers can select the cooler that delivers the required performance in the actual application. Fuzhou X-Meritan Technology Co., Ltd. has been designing thermoelectric cooler assemblies for over 12 years and provides full performance data and testing support for our customers.

Fuzhou X-Meritan Technology Co., Ltd. manufactures Thermoelectric Coolers with high-performance heat sinks, controlled TIM application, and matched module grades. We provide pull-down test reports, performance curves, and thermal analysis for all of our products.
