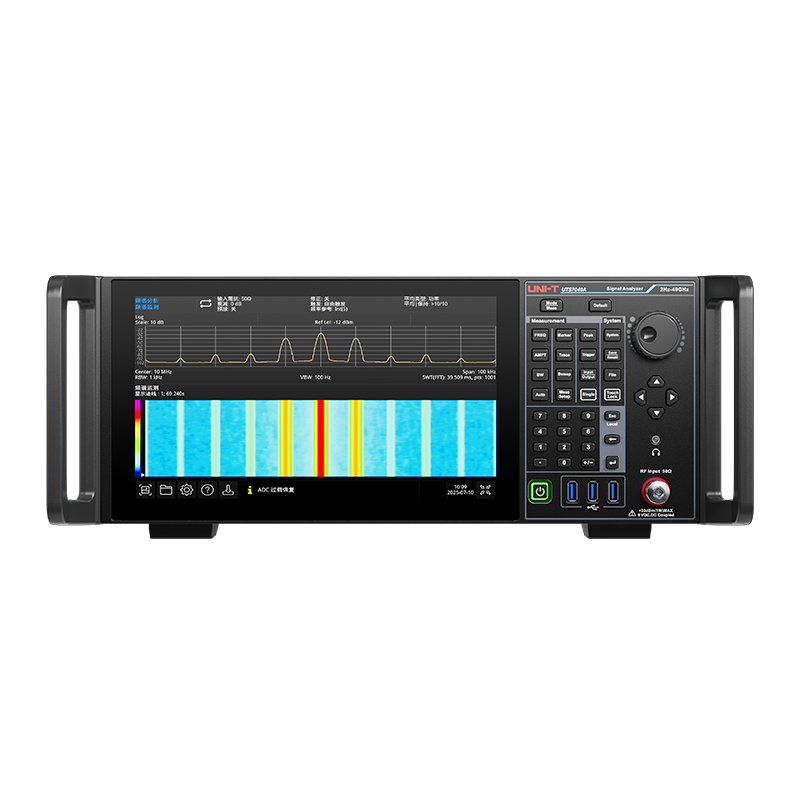

Which Uniform UTS7000A Series Signal Analyzer Supports Accurate RF Measurement?
2026-09-28
The Uniform UTS7000A Series Signal Analyzer is designed for engineers who need accurate RF measurement, spectrum monitoring, modulation analysis, and signal troubleshooting in modern communication systems. This article explains which factors make the UTS7000A Series suitable for laboratory research, production testing, wireless communication development, and electronic system verification. With advanced measurement capability, high sensitivity, wide frequency coverage, and flexible analysis functions, it helps engineers solve common challenges such as weak signal detection, interference identification, and complex signal characterization.
Which Challenges Does a Signal Analyzer Need to Solve?
Modern electronic systems are becoming increasingly complex. Wireless communication equipment, RF modules, automotive electronics, aerospace systems, and industrial control devices all require precise signal measurement during development and production.
However, engineers often face several practical difficulties. Weak signals may be hidden by background noise, unwanted interference can affect system stability, and high-speed communication signals require advanced analysis methods to identify performance issues.
A professional signal analyzer must do more than display frequency information. It needs to provide accurate measurement results, flexible analysis functions, and reliable operation for different testing environments.
The Uniform UTS7000A Series Signal Analyzer addresses these requirements by combining spectrum analysis capability with advanced signal analysis functions. The series supports frequency coverage up to 40 GHz, low displayed average noise level, wide analysis bandwidth options, and multiple measurement modes for different engineering scenarios.
Which Features Define the Uniform UTS7000A Series Signal Analyzer?
Selecting a signal analyzer requires understanding the technical performance that directly influences measurement accuracy. The following features make the UTS7000A Series suitable for demanding RF and electronic testing tasks.
Wide Frequency Coverage for Diverse Testing Requirements
Frequency range is one of the most important factors when selecting an analyzer. Different industries may require testing from low-frequency signals to microwave communication bands.
The UTS7000A Series supports a frequency range from 2 Hz to 40 GHz depending on the model, allowing engineers to analyze a wide variety of signals without changing measurement platforms frequently.
| Measurement Capability | Engineering Benefit |
|---|---|
| 2 Hz to 40 GHz frequency coverage | Supports low-frequency and microwave signal analysis |
| Minimum 1 Hz resolution bandwidth | Helps separate closely spaced signals |
| Up to 255 MHz analysis bandwidth option | Suitable for wideband communication analysis |
| Low noise floor performance | Improves weak signal detection ability |
High Sensitivity for Weak Signal Measurement
When measuring low-power RF signals, the instrument's internal noise can influence the final result. A high sensitivity analyzer allows engineers to identify signals that may otherwise be difficult to observe.
The UTS7000A Series provides a displayed average noise level (DANL) down to approximately -167 dBm, helping improve measurement confidence when analyzing weak signals.
Accurate Phase Noise Analysis
Phase noise measurement plays an important role in oscillator evaluation, communication system development, and frequency stability testing.
The UTS7000A Series provides phase noise performance better than -110 dBc/Hz at a 10 kHz offset under typical conditions, supporting accurate analysis of frequency source stability.
Flexible Signal Analysis Functions
Different testing tasks require different analysis methods. A versatile instrument reduces the need for multiple dedicated devices.
- Spectrum analysis for frequency and amplitude evaluation
- I/Q analysis for detailed signal characterization
- Phase noise analysis for oscillator performance testing
- LTE and communication signal analysis options
- Vector signal analysis functions for complex modulation evaluation
Which Applications Benefit From This Signal Analyzer?
A signal analyzer is widely used wherever accurate RF measurement is required. The right instrument can improve product development efficiency and reduce troubleshooting time.
| Industry | Typical Testing Requirements |
|---|---|
| Wireless Communication | Signal quality verification, modulation analysis, interference testing |
| Electronic R&D | Prototype testing and circuit performance evaluation |
| Manufacturing Production | Quality inspection and production line verification |
| Automotive Electronics | RF module testing and electromagnetic compatibility evaluation |
| Education and Research | Laboratory experiments and signal analysis training |
Communication System Development
As communication technologies continue evolving, engineers need equipment capable of analyzing complicated modulation formats and high-frequency signals. The UTS7000A Series can support modern communication testing requirements through optional advanced analysis functions.
Electronic Manufacturing Testing
During production, unstable signal performance may lead to product failures. A reliable signal analyzer allows manufacturers to identify frequency errors, unwanted emissions, and signal abnormalities before products reach customers.
Research Laboratory Applications
Research teams often need flexible instruments that can adapt to different experiments. The UTS7000A Series provides multiple measurement functions within one platform, reducing equipment switching and simplifying test workflows.
Which Technical Advantages Improve Measurement Efficiency?
Large Number of Sweep Points for Detailed Observation
Signal details can be missed when measurement resolution is insufficient. The UTS7000A Series supports up to 100,001 sweep points, allowing engineers to observe frequency components with greater detail.
Large Touchscreen Interface for Convenient Operation
A clear interface improves testing efficiency. The series uses an 11.6-inch high-resolution TFT LCD touchscreen, making parameter adjustment and waveform observation more convenient during daily operation.
Multiple Control Methods for Integration
Modern test environments often require automated measurement systems. The analyzer supports various interfaces and remote control methods, helping engineers integrate testing equipment into automated workflows.
Which Factors Should Engineers Consider Before Purchasing?
Choosing a signal analyzer requires matching equipment capability with actual testing needs. Important considerations include:
- Frequency Range: Confirm the analyzer covers the required operating frequency.
- Signal Type: Consider whether spectrum, modulation, I/Q, or EMI analysis is required.
- Bandwidth Requirement: Wideband signals may require higher analysis bandwidth.
- Measurement Accuracy: Low noise floor and stable performance improve testing reliability.
- Future Expansion: Optional functions can provide flexibility for future applications.
Why Choose Dongguan Qihang Electronic Technology Co.,Ltd.?
Dongguan Qihang Electronic Technology Co.,Ltd. focuses on providing professional electronic testing solutions for customers requiring reliable measurement equipment and technical support.
With experience in electronic measurement applications, the company understands that customers need more than a testing instrument. They also need stable supply, application guidance, and solutions that match their specific engineering requirements.
By combining quality products with responsive service, Dongguan Qihang Electronic Technology Co.,Ltd. helps customers improve testing efficiency and achieve more reliable electronic system verification.
Frequently Asked Questions
1. What is the main purpose of the Uniform UTS7000A Series Signal Analyzer?
The analyzer is mainly used for RF signal measurement, spectrum analysis, signal characterization, and communication system testing. It helps engineers evaluate signal quality and identify performance problems.
2. Which frequency range does the UTS7000A Series support?
The series supports frequency measurement from 2 Hz up to 40 GHz depending on the selected model, covering a wide range of electronic and RF applications.
3. Can the UTS7000A Series analyze weak signals?
Yes. Its low displayed average noise level improves sensitivity when detecting low-power signals and analyzing complex RF environments.
4. Is the signal analyzer suitable for production testing?
Yes. The instrument can be used for manufacturing inspection, quality verification, and automated testing environments where stable measurement performance is required.
5. How can customers select the suitable model?
Customers should consider required frequency range, analysis bandwidth, testing functions, and future application needs before selecting the appropriate configuration.
