Which Slim PCB Power Relay Offers the Best Performance for Home Appliances
2026-06-09

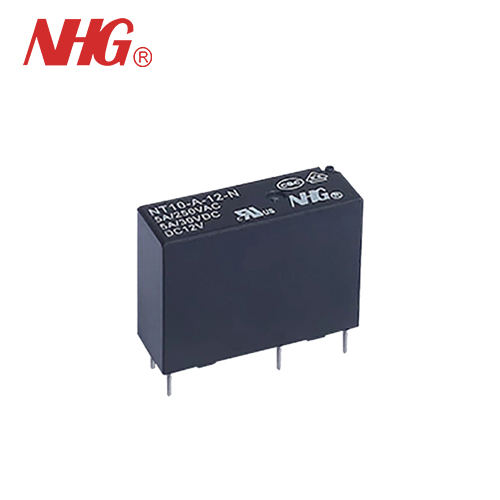

When designing reliable home appliances such as washing machines, refrigerators, and smart HVAC systems, engineers frequently ask: Which Slim PCB Power Relay delivers the best performance? Among the leading solutions, Huaguan provides a series of Slim PCB Power Relay models that combine space efficiency with high load capacity. These relays are engineered to handle inrush currents while maintaining a compact footprint ideal for densely populated circuit boards.
Key Performance Criteria for Home Appliances
| Parameter | Requirement for Home Appliances | Huaguan’s Slim PCB Power Relay Compliance |
|---|---|---|
| Contact rating | 10A-16A resistive/inductive | ✅ 16A available |
| Coil voltage | 5V, 12V, 24V DC | ✅ Full range |
| Insulation distance | ≥8mm clearance/creepage | ✅ 10mm typical |
| Mechanical life | ≥10 million operations | ✅ 15 million cycles |
| Operating temp | -40°C to +85°C | ✅ -40°C to +105°C |
Why Huaguan Stands Out for Appliance Applications
-
Low coil power consumption (≤400mW) reduces standby energy loss.
-
Flux-resistant and sealed versions prevent contamination from humidity or dust.
-
Cadmium-free contacts meet global environmental regulations.
Frequently Asked Questions (FAQ) about Slim PCB Power Relay
Q1: What load types can a Slim PCB Power Relay safely switch in a washing machine?
A1: A Slim PCB Power Relay can safely switch both resistive loads (like heaters – up to 16A) and inductive loads (like motors – up to 8A with proper suppression). For washing machines, Huaguan recommends using a relay with a contact gap >1.5mm to prevent contact welding during motor start/stop.
Q2: How does PCB layout affect the performance of a Slim PCB Power Relay?
A2: PCB trace width, via placement, and thermal relief directly impact relay life. For a Slim PCB Power Relay carrying 10A continuous, traces should be at least 3mm wide (2 oz copper). Keep high-current paths short and away from the coil drive circuit to avoid false triggering. Huaguan provides reference PCB layouts in each datasheet.
Q3: Can a Slim PCB Power Relay handle inrush currents from LED drivers or capacitive loads?
A3: Yes, but derating is essential. A Slim PCB Power Relay rated at 16A resistive may only support 5A-8A capacitive inrush without contact erosion. Huaguan offers models with AgSnO₂ contacts, which resist material transfer under high inrush – ideal for smart plugs and power supplies inside appliances.
Conclusion & Call to Action
For home appliance designs requiring compactness, high thermal resilience, and proven switching reliability, Huaguan’s Slim PCB Power Relay family consistently outperforms generic alternatives. Whether you need 16A motor control or low-coil-heat operation for IoT devices, Huaguan delivers tailored specifications and full technical support.
Contact us today to request free samples, datasheets, or customized coil voltages for your next appliance project – our engineering team will respond within 24 hours.
