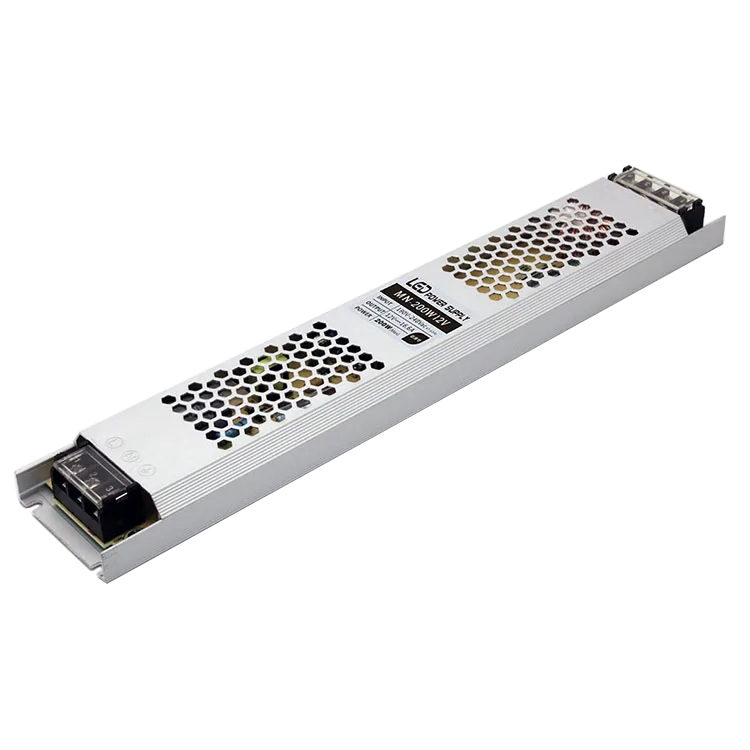

What Safety Standards Must a 200W Ultra Thin Switching Power Supply Meet for Global Certification
2026-04-20
When designing a 200W Ultra Thin Switching Power Supply, global market access depends on rigorous safety certifications. For Starwell, a leader in compact power solutions, meeting these standards ensures reliability, thermal stability, and electrical isolation in slim-profile applications such as LED displays, medical devices, and industrial control systems.
Core Safety Standards for Global Certification
A 200W Ultra Thin Switching Power Supply must comply with regional and international norms. Below are the primary standards:
| Standard | Region | Key Requirement |
|---|---|---|
| IEC 62368-1 | International | Audio/video and ICT equipment safety, replacing IEC 60950-1 |
| UL 60950-1 / UL 62368-1 | USA | Dielectric strength, creepage distances, and fire enclosure |
| EN 60335-1 | Europe | Household appliance safety, including thermal cutoff |
| GB 4943.1 | China | Insulation coordination and fault protection |
| IEC 61558-1 | International | Isolating transformers for ultra-thin SMPS |
| CISPR 32 | International | EMI emission limits for Class B environments |
Each standard imposes specific tests: input/output isolation (typically 3000 VAC), leakage current (<0.25 mA), and temperature rise limits under full load.
Additional Certifications for Market Access
Beyond basic safety, a 200W Ultra Thin Switching Power Supply often requires:
-
CE Marking – Self-declaration for EU, requiring LVD and EMC directives.
-
FCC Part 15 – US conducted and radiated emissions compliance.
-
CCC – Mandatory for China, including CQC energy efficiency.
-
UKCA – United Kingdom’s post-Brexit certification.
-
PSE – Japan’s Electrical Appliance and Material Safety Law.
Starwell integrates all these into a single thin-profile design, reducing time-to-certification for OEM customers.
Frequently Asked Questions
What makes safety certification harder for an ultra-thin design compared to a standard power supply?
The reduced height limits creepage and clearance distances between primary and secondary circuits. A 200W Ultra Thin Switching Power Supply must achieve at least 6 mm clearance (for 300 VAC working voltage) within a profile often under 20 mm. This demands precision PCB layout, reinforced insulation, and often triple-insulated wire on the transformer. Starwell uses automated optical inspection to verify these gaps, preventing arc faults and meeting IEC 62368-1 Annex G.
How does thermal management affect safety compliance for a 200W Ultra Thin Switching Power Supply?
Excessive temperature degrades insulation and increases fire risk. Safety standards like UL 62368-1 require a maximum 85°C on accessible surfaces and 105°C on internal components (Class B). An ultra-thin form factor lacks airflow, so Starwell employs aluminum substrates and synchronous rectification to keep hotspots below 90°C at full 200W load, passing the 48-hour burn-in test required for CB certification.
Does a 200W Ultra Thin Switching Power Supply need different certifications for medical vs. industrial use?
Yes. Medical applications require IEC 60601-1 with 2 MOPP (Means of Patient Protection), demanding 4000 VAC isolation and lower leakage current (<0.1 mA). Industrial use follows IEC 62368-1 with 3000 VAC and higher leakage allowances. Starwell offers two variants: one with 2 MOPP for BF-rated medical devices and another with industrial-grade protection, both sharing the same 19 mm ultra-thin mechanical envelope.
Why Starwell Prioritises Pre-Compliance Testing
Most failures occur in radiated emissions (CISPR 32) and transformer insulation. Starwell operates an in-house EMC chamber and HiPot tester at 4.5 kV DC, ensuring every 200W Ultra Thin Switching Power Supply passes before final audit. This reduces certification rework costs by up to 40%.
