What Role Does the Communication Module Play in ABB PLC Systems?

2026-10-13

An automation engineer commissions a new production line with an ABB PLC at the center. The system includes 12 remote I/O stations, 4 variable frequency drives, and a vision system. In the workshop, all devices communicate perfectly. On the factory floor, the remote I/O stations drop offline every few hours, and the vision system sends corrupted data. The engineer checks the wiring, the grounding, and the power supply. All are within specification. The problem is the communication module. The module is configured for a protocol that does not handle the electromagnetic interference on the factory floor. This guide explains the role of the communication module in an ABB PLC system and how to select and troubleshoot it.

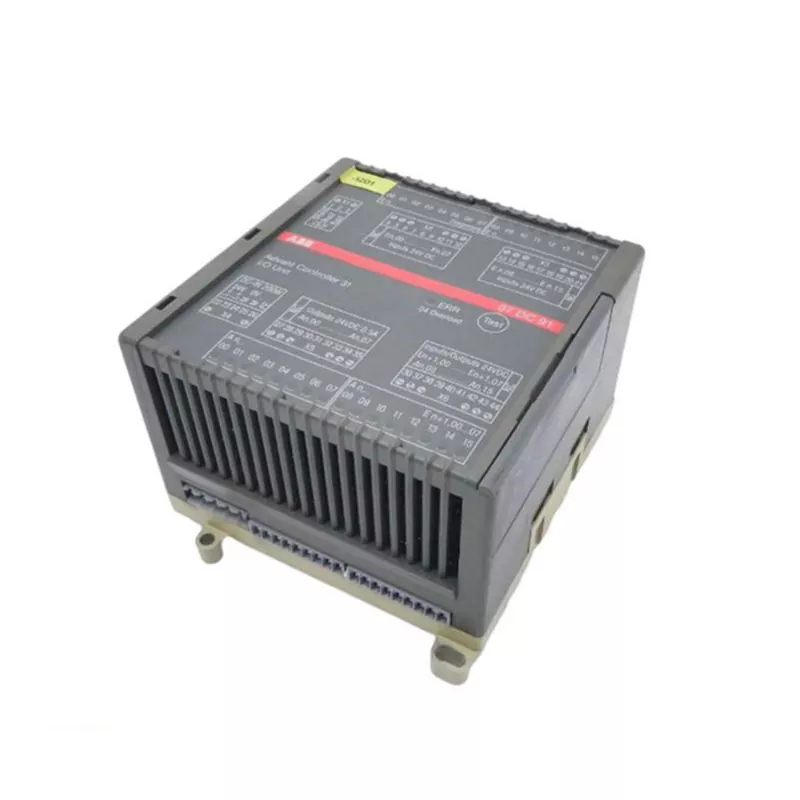

1. What Functions Does the Communication Module Perform in an ABB PLC?

The communication module is the interface between the ABB PLC and the rest of the automation system. It performs three functions. First, it converts the parallel data from the PLC backplane into a serial data stream that can be transmitted over a network. Second, it manages the protocol handshaking, error checking, and retransmission. Third, it provides electrical isolation between the PLC and the network, which protects the PLC from voltage spikes and ground loops. The table below shows the communication modules available for our ABB PLC systems and their primary functions.

Module type	Protocol	Max speed	Max nodes	Typical application
Ethernet module	Modbus TCP, PROFINET, EtherNet/IP	100 Mbps	Unlimited (switch dependent)	Plant-wide integration
PROFIBUS module	PROFIBUS DP	12 Mbps	126	Remote I/O, drives
CANopen module	CANopen	1 Mbps	127	Motion control, sensors
Serial module	RS-232, RS-485, Modbus RTU	115 kbps	32 (RS-485)	Legacy devices, barcode readers

In our factory, we integrate ABB PLC systems with a range of communication modules. The choice of module depends on the devices that need to be connected, the required data rate, and the distance between nodes. Yueyang Tongtu E-commerce Co., Ltd. supplies ABB PLC communication modules and provides integration support for our customers.

2. How Does Network Topology Affect Communication Reliability?

The network topology determines how the communication module handles data traffic and faults. There are three common topologies: star, ring, and daisy chain. A star topology uses a central switch. If one cable fails, only that node is affected. A ring topology provides redundancy. If one cable fails, the data can travel the other way around the ring. A daisy chain topology is the simplest but the least reliable. If one node fails, the entire chain is affected. The table below compares the topologies for ABB PLC communication.

Topology	Fault tolerance	Cable length	Cost	Typical application
Star (switched Ethernet)	Moderate (single node failure)	100 m per segment	Moderate	Plant-wide Ethernet
Ring (redundant)	High (cable break tolerated)	100 m per segment	High	Critical processes
Daisy chain (PROFIBUS)	Low (single node failure stops chain)	1,200 m total	Low	Remote I/O, drives

In our factory, we recommend a star topology for Ethernet-based communication because it is the easiest to troubleshoot. If a node goes offline, the engineer can check the switch port to see if the link is active. For critical processes, we recommend a ring topology with a managed switch that supports rapid spanning tree protocol. This provides redundancy without the complexity of a dual network. Yueyang Tongtu E-commerce Co., Ltd. provides network design support for ABB PLC systems.

3. How Does Communication Load Affect PLC Scan Time?

The communication module shares the PLC backplane with the CPU and the I/O modules. If the communication load is too high, the CPU scan time increases, which can cause the control program to miss deadlines. The communication load is determined by the number of nodes, the data size per node, and the update rate. The table below shows the relationship between communication load and scan time for a typical ABB PLC.

Number of nodes	Data per node (bytes)	Update rate (ms)	Communication load (%)	Scan time increase (ms)
4	16	10	5	0.2
8	32	10	12	0.5
16	64	10	25	1.2
32	128	10	50	3.5
64	256	10	85	8.0

Commissioning tip: Keep the communication load below 40 percent to ensure that the scan time is not affected by network traffic. If the load exceeds 40 percent, reduce the update rate, reduce the data size, or add a second communication module. In our factory, we use a network analyzer to measure the actual load during commissioning. We also recommend that the PLC program include a watchdog timer that detects communication faults and takes the system to a safe state.

4. What Are the Common Communication Faults and How Are They Diagnosed?

Communication faults in an ABB PLC system can be caused by hardware, software, or wiring. The most common faults are cable breaks, loose connectors, incorrect termination, duplicate addresses, and protocol mismatches. The table below shows the fault symptoms and the diagnostic steps.

Symptom	Probable cause	Diagnostic step
All nodes offline	Module failure or power loss	Check module LEDs; verify power supply
One node offline	Cable break or loose connector	Check cable continuity; reseat connector
Intermittent data loss	EMI or incorrect termination	Check shielding; verify terminating resistor
Duplicate node address	Address conflict	Scan network for duplicate addresses
Protocol mismatch	Wrong module configuration	Verify module GSD file; check baud rate

In our factory, we use a protocol analyzer to diagnose communication faults. The analyzer captures the data traffic and identifies the source of the error. For PROFIBUS networks, we use a PROFIBUS tester that measures the signal quality and the termination resistance. For Ethernet networks, we use a network analyzer that shows the traffic load and the error counters. Yueyang Tongtu E-commerce Co., Ltd. provides diagnostic tools and training for ABB PLC communication systems.

Frequently Asked Questions About Communication Modules in ABB PLC Systems

Question 1: Can I use a third-party communication module with an ABB PLC?

Answer: In some cases, yes, but it is not recommended for critical applications. ABB PLC systems use a proprietary backplane protocol. A third-party module must be designed specifically for the ABB backplane, and it must be certified by ABB. Using an uncertified module can cause communication errors, scan time fluctuations, and even damage to the PLC. In our factory, we recommend using ABB original communication modules for all critical applications. For non-critical applications where cost is a concern, we can supply compatible modules from qualified third-party manufacturers. These modules are tested with our ABB PLC systems and are covered by our warranty. We provide the test report and the compatibility certificate with every third-party module.

Question 2: How do I calculate the maximum number of nodes for a PROFIBUS network?

Answer: The maximum number of nodes on a PROFIBUS network depends on the baud rate and the cable length. At 12 Mbps, the maximum cable length is 100 meters, and the maximum number of nodes is 32. At 1.5 Mbps, the cable length can be 200 meters, and the number of nodes is still 32. At 500 kbps, the cable length can be 400 meters, and the number of nodes is 32. The number of nodes is limited by the electrical load on the bus. Each node presents a load of approximately 10 mA. The bus can supply a maximum of 400 mA. Therefore, the maximum number of nodes is 32. If more nodes are required, a repeater must be used. In our factory, we provide a network design guide that includes the node count and cable length calculations for PROFIBUS and other protocols.

Question 3: How does the communication module handle data consistency in a redundant system?

Answer: In a redundant ABB PLC system, two communication modules are used, one in each PLC. The modules synchronize the data so that both PLCs have the same process image. If one module fails, the other module continues to communicate without interruption. The synchronization is performed by a redundancy link between the two PLCs. The link is typically a fiber optic cable or an Ethernet crossover cable. The communication module must support redundancy, which is indicated by the module model number. In our factory, we supply redundant communication modules for critical applications such as power plants and chemical processes. We also provide the configuration guide for setting up the redundancy link and the switchover logic. The switchover time is typically less than 50 milliseconds.

Summary for Automation Engineers and System Integrators

The communication module is the interface between the ABB PLC and the automation system. It converts data, manages protocols, and provides electrical isolation. The choice of module, the network topology, and the communication load all affect the reliability and performance of the system. Common faults include cable breaks, loose connectors, incorrect termination, and protocol mismatches. By selecting the right module, designing the network correctly, and using the proper diagnostic tools, engineers can ensure reliable communication in the most demanding industrial environments. Yueyang Tongtu E-commerce Co., Ltd. supplies ABB PLC communication modules and provides integration support for our customers.

Yueyang Tongtu E-commerce Co., Ltd. supplies ABB PLC systems with Ethernet, PROFIBUS, CANopen, and serial communication modules. We provide network design support, diagnostic tools, and configuration guides for all of our products.

Need help selecting or troubleshooting a communication module for your ABB PLC system? Contact Yueyang Tongtu E-commerce Co., Ltd. for a free consultation. We will review your network requirements and recommend the optimal module configuration.
