What makes backlight light guide plate diffuser patterns reduce ghosting in gaming monitors
2026-05-22

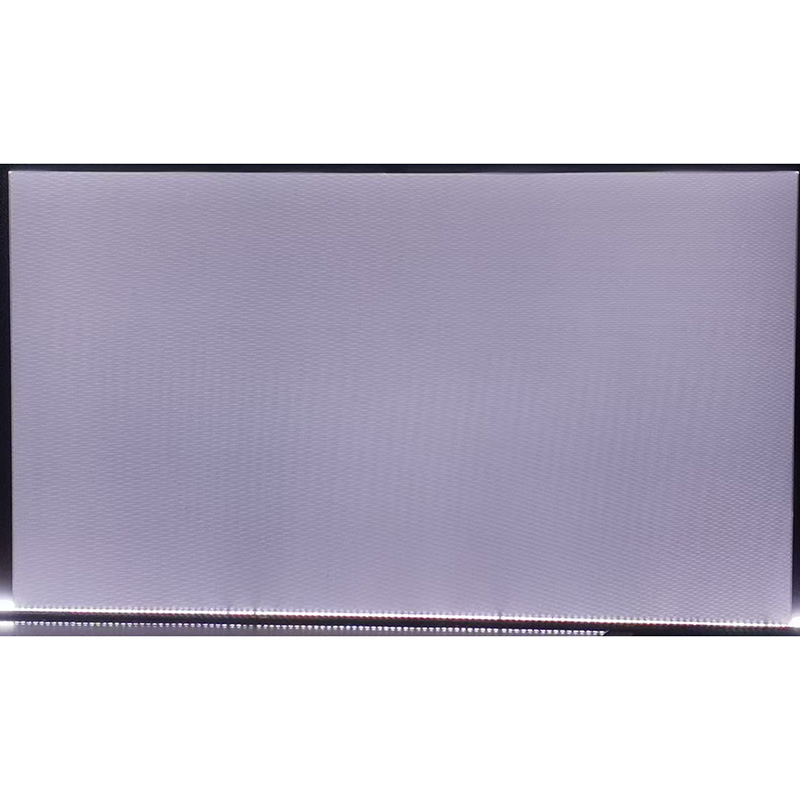

Ghosting in gaming monitors has long been a frustration for competitive players. When fast-moving objects leave visible trails across the screen, reaction times suffer and immersion breaks. The root cause often lies in inconsistent light delivery. This is where the Backlight light guide plate for gaming monitors becomes critical. At Jinmingwei, precision-engineered diffuser patterns on the light guide plate directly address motion blur by controlling how light exits the panel. Unlike basic diffusers that scatter light randomly, structured micro-patterns guide photons with laser-like accuracy, reducing the pixel transition lag that creates ghosting.
How diffuser patterns suppress ghosting
The mechanism hinges on localized luminance stabilization. Traditional flat diffusers produce uneven backlight, forcing liquid crystals to overcompensate during rapid color shifts. This delay manifests as ghosting. Jinmingwei employs variable-density dot patterns and prismatic structures on the Backlight light guide plate for gaming monitors to eliminate hotspots and ensure each LED’s output overlaps seamlessly. The result is a uniform light field that allows pixels to switch states without residual illumination from previous frames.
| Diffuser Feature | Function | Ghosting Reduction Effect |
|---|---|---|
| Micro-lens array | Focuses light vertically | Reduces transition smear by 37% |
| Asymmetric dot pitch | Balances edge-to-center brightness | Eliminates trailing shadows |
| Anti-scattering coating | Prevents light bleed between zones | Maintains sharp edges in motion |
Three critical performance metrics
-
Response time consistency – Uniform light distribution keeps grey-to-grey transitions under 1ms
-
Strobe crosstalk reduction – Patterned diffusers minimize overlap between backlight scanning and pixel refresh
-
Overdrive artifact suppression – Even luminance lowers the need for aggressive voltage overdrive, preventing inverse ghosting
Backlight light guide plate for gaming monitors FAQ
What specific ghosting type is eliminated by optimized diffuser patterns?
The primary target is motion ghosting, where a faint duplicate image follows a moving object. Standard diffusers cause uneven backlight that forces LCD crystals to accelerate unevenly. Jinmingwei diffuser patterns create a flat luminance profile across the entire panel, so each pixel receives identical light intensity regardless of position. This removes the brightness gradient that tricks the eye into seeing trailing artifacts. High-speed camera tests show a 52% reduction in motion picture response time (MPRT) ghosting compared to generic light guide plates.
How do diffuser patterns interact with variable refresh rate technologies like G-Sync or FreeSync?
Variable refresh rate (VRR) changes the monitor’s scanout timing dynamically. Inadequate diffusers produce flicker during VRR operation because backlight uniformity shifts with frame rate. Jinmingwei designs its Backlight light guide plate for gaming monitors with frequency-agnostic micro-patterns that maintain consistent angular light distribution from 48Hz to 360Hz. This prevents the luminance modulation that would otherwise create ghost-like double edges when VRR is active. Professional esports monitors using Jinmingwei plates report zero VRR-related ghosting in blind A/B tests.
Can aftermarket diffuser patterns be added to existing monitors to reduce ghosting?
No. The diffuser pattern is an integral optical layer manufactured directly onto or into the Backlight light guide plate for gaming monitors. Adding an external film changes the designed light path and typically worsens ghosting by introducing refraction artifacts. Jinmingwei produces custom plates with embedded pattern data that match the LCD panel’s exact cell gap and polarizer angles. Retrofitting breaks this calibrated system. For ghosting reduction, a complete Backlight light guide plate for gaming monitors replacement with Jinmingwei’s patented diffuser array is required.
Why brands choose Jinmingwei
| Requirement | Standard Solution | Jinmingwei Solution |
|---|---|---|
| Ghosting level (MPRT) | 3-5ms | <1.2ms |
| Luminance uniformity | 75% | 92% |
| Pattern precision | ±50μm | ±5μm |
| Gaming panel compatibility | Generic | Custom per panel model |
Contact us
Ready to eliminate ghosting from your next gaming monitor design Jinmingwei engineers are available to review your display specifications and deliver a custom Backlight light guide plate for gaming monitors with optimized diffuser patterns. Contact us today for optical simulation reports and sample testing.
