What Makes a High-Performance Camera Module the Right Choice for Your Application?
2025-08-07
In the rapidly evolving world of smart devices, surveillance systems, automotive technology, medical imaging, and industrial inspection, the Camera Module plays a pivotal role in capturing high-quality images and translating vision into actionable data. But with countless options available in the market, how do you choose the right camera module that aligns with your specific application requirements?
This guide breaks down what a camera module is, why it matters, what technical parameters to consider, and answers some of the most common questions customers ask when choosing a reliable camera solution.

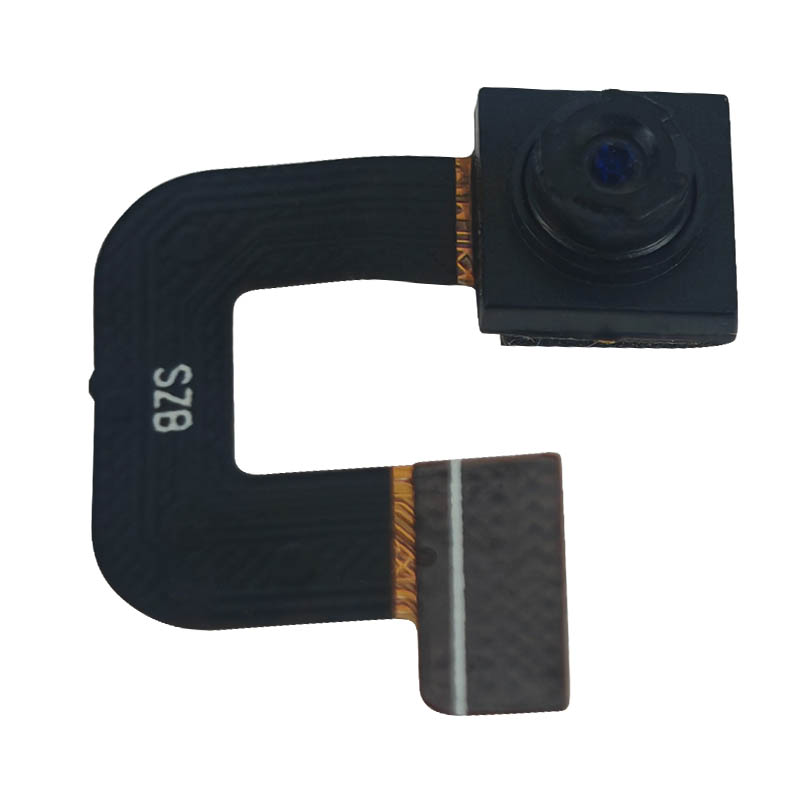

A camera module is a fully integrated compact image capturing device, typically consisting of a lens, image sensor (CMOS or CCD), control electronics, and an interface (like MIPI, USB, or parallel). It allows devices to process visual data and is often embedded in consumer electronics, automotive systems, industrial machinery, drones, robotics, and healthcare instruments.
Why Our Camera Module Stands Out
We provide a series of cutting-edge Camera Module solutions tailored for high-resolution imaging, real-time data processing, and long-term reliability. All modules are manufactured with strict quality control standards to ensure consistent output and performance.
Below is an overview of the technical specifications of one of our most popular Camera Modules.
Product Parameters of Our Flagship Camera Module
| Parameter | Specification |
|---|---|
| Model | CM-8MP-IMX219 |
| Image Sensor | Sony IMX219 (8MP CMOS) |
| Resolution | 3280 x 2464 |
| Frame Rate | 30 fps @ 8MP / 60 fps @ 1080p / 120 fps @ 720p |
| Lens Type | Fixed focus / Optional autofocus |
| Field of View (FOV) | 77.6° (custom options available) |
| Interface | MIPI CSI-2 (4-lane) |
| Shutter Type | Rolling shutter |
| Pixel Size | 1.12 µm x 1.12 µm |
| Dimensions | 25 mm x 24 mm x 9 mm |
| Operating Voltage | 2.8V (analog), 1.8V (digital) |
| Operating Temp. | -20°C to 70°C |
| Output Format | RAW10 / YUV422 / MJPEG |
| Mounting Options | M12 lens holder / Customizable design |
| Certifications | RoHS, CE, FCC |
Key Features of Our Camera Module
Here are the core strengths that set our camera modules apart from the rest:
✅ High Image Quality
-
Advanced noise reduction and wide dynamic range.
-
Excellent low-light performance for indoor and outdoor environments.
✅ Flexible Integration
-
Multiple interface options including MIPI, USB, and parallel.
-
Easily integrates with ARM, x86, Raspberry Pi, NVIDIA Jetson, and other platforms.
✅ Customization Support
-
Lens, FOV, housing, and cable lengths are customizable to fit specific project needs.
✅ Long-Term Supply and Lifecycle Management
-
Industrial-grade reliability with long-term supply commitments for consistent production.
Common Camera Module Use Case Comparison
| Use Case | Recommended Resolution | Interface | Special Notes |
|---|---|---|---|
| Smart Doorbell | 2MP - 5MP | MIPI/USB | Emphasis on low-light and wide FOV |
| Industrial Inspection | 8MP - 16MP | MIPI | High resolution and accuracy |
| Robotics & AI | 8MP | MIPI | Real-time processing and low latency |
| Automotive | 1MP - 2MP | MIPI | High dynamic range, thermal tolerance |
| Medical Imaging | 5MP - 13MP | USB | Precision and FDA/CE compliance |
Camera Module FAQ
Q1: What's the difference between a camera module and a USB webcam?
A1: A USB webcam is a plug-and-play device with a built-in controller, typically used in consumer applications. A Camera Module, on the other hand, is a bare module intended for integration into custom hardware. It offers greater flexibility in lens, size, resolution, and software control for product development.
Q2: How do I interface a Camera Module with my development board?
A2: Our Camera Modules typically use a MIPI CSI-2 interface. If you're using a board like Raspberry Pi or Jetson Nano, you can connect it directly via the CSI port. You will also need to install the correct drivers and use tools such as V4L2 or custom SDKs we provide. Detailed integration manuals are available with every order.
Q3: Can I customize the lens or housing of the Camera Module?
A3: Yes, we provide full customization options. Depending on your FOV, working distance, and depth-of-field requirements, we can adjust the lens mount (M12 or CS), choose different lenses (wide-angle, telephoto, IR-cut), and develop custom enclosures. Our engineers will work with you to finalize mechanical drawings and prototypes.
Why Choose Us as Your Camera Module Supplier?
-
🏢 Established Manufacturer: Over 10 years of R&D and production experience
-
🔧 Customization Expertise: From PCB design to firmware optimization
-
📦 Stable Supply Chain: Long-term partnerships with sensor brands like Sony, OmniVision, ON Semiconductor
-
🔍 Quality Assurance: 100% tested with automatic optical inspection (AOI) and aging tests
-
🌍 Global Support: Export to over 50 countries with multilingual technical support
Final Thoughts
The Camera Module is the visual engine of your device. Whether you're building the next-generation smart device or upgrading an industrial vision system, selecting a high-performance, reliable, and customizable module is critical. By understanding your application requirements and partnering with a trusted supplier, you'll unlock the full potential of imaging technology.
If you're unsure which module fits your project, our technical team is ready to assist with prototyping, integration, and post-sales support.
