What is the Maximum Sound Pressure Level Achievable from a Compact Flashing LED Buzzer

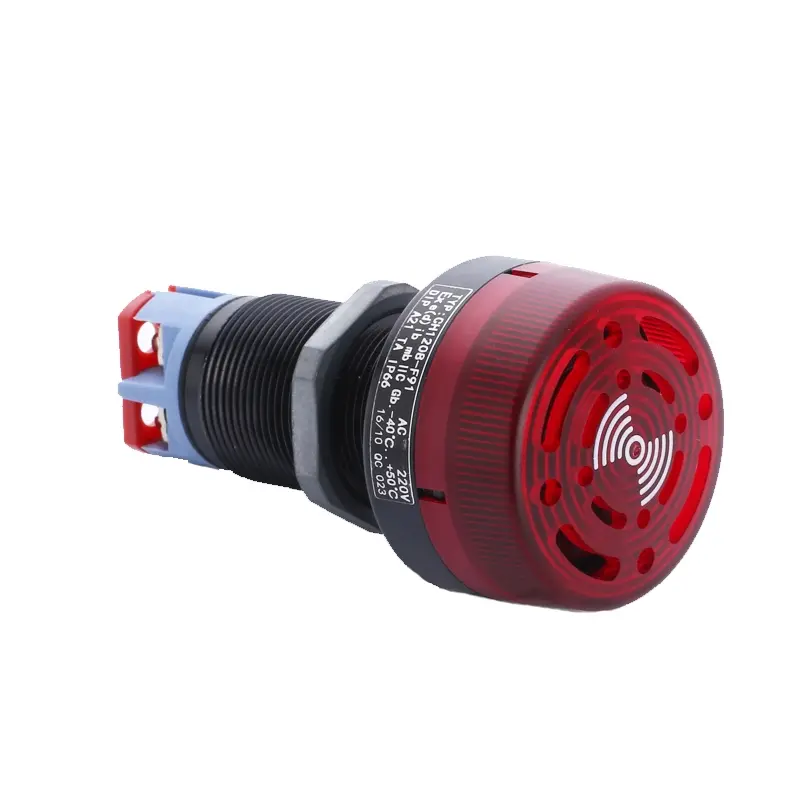

For Yuxuan, a trusted name in audible-visual signaling devices, the answer combines piezoelectric innovation and resonance optimization. Typically, a compact Flashing LED Buzzer reaches between 85 dB and 105 dB at 10 cm, depending on driver design, enclosure material, and LED power draw.

Core Technical Parameters

The peak SPL depends heavily on the buzzer’s resonant cavity. A well-designed Flashing LED Buzzer from Yuxuan integrates a feedback-driven driver that synchronizes flashing frequency with acoustic output, preventing LED power drain from attenuating sound.

Design Factors Influencing Maximum SPL

• Piezoelectric vs. Magnetic Elements
  Piezoelectric buzzers deliver higher SPL (up to 105 dB) at higher frequencies (2–4 kHz). Magnetic types peak near 90 dB but offer lower power draw.

• Enclosure Acoustic Porting
  A front-firing sound port increases SPL by 3–5 dB compared to side-firing designs. Yuxuan compact Flashing LED Buzzers use front-ported IP65-rated housings.

• LED Load Management
  High-brightness LEDs can reduce buzzer drive current. Yuxuan employs separate regulation channels, ensuring the Flashing LED Buzzer maintains peak SPL even at maximum flash intensity.

Flashing LED Buzzer FAQ – Common Questions

Question 1: Can a compact Flashing LED Buzzer reach 110 dB without distorting the flash pattern?

Answer: Yes, but only under specific conditions. Reaching 110 dB from a compact Flashing LED Buzzer (diameter < 30 mm) requires a resonant frequency near 3.5 kHz and a supply voltage above 24 V. However, most compact units, including Yuxuan models, cap at 105 dB to maintain clean square-wave flash timing. Above 105 dB, LED flicker may become visible due to current ripple, and acoustic distortion rises above 5% THD. For 110 dB, a larger housing (40+ mm) is recommended.

Question 2: Does the flash rate affect the maximum sound pressure level of a Flashing LED Buzzer?

Answer: Indirectly, yes. In a Flashing LED Buzzer, the flash rate does not alter the buzzer’s theoretical maximum SPL, but power supply limitations can create a trade-off. At very fast flash rates (e.g., 8 Hz or higher), the LED driver demands more peak current. If the power supply is marginal, voltage sag reduces buzzer drive voltage, lowering SPL by 2–4 dB. Yuxuan designs its Flashing LED Buzzer products with internal decoupling capacitors, isolating LED and buzzer power rails so SPL remains stable from 1 Hz to 8 Hz flash rates.

Question 3: How can I measure the real-world maximum SPL of a Flashing LED Buzzer in a noisy industrial environment?

Answer: Use a Class 2 sound level meter (IEC 61672-1) set to A-weighting for occupational noise assessments or C-weighting for peak acoustic measurement. Place the Flashing LED Buzzer on a non-reflective surface at 10 cm directly on-axis. For industrial settings with background noise above 70 dB, perform a subtraction correction: measure combined noise + buzzer, then ambient noise alone, and apply logarithmic subtraction (SPL_buzzer = 10*log(10^(L_comb/10) - 10^(L_amb/10))). Yuxuan recommends three consecutive measurements and averaging. Also verify that the Flashing LED Buzzer is driven at its rated voltage (e.g., 12V ±5%) with a fresh power source.

Industry Compliance and Reliability

Yuxuan compact Flashing LED Buzzers undergo rigorous SPL validation per ISO 3744. Each unit is tested for SPL variation within ±2 dB from -20°C to +60°C. The table below summarizes typical applications:

Contact Us

For exact SPL curves, custom frequency tuning, or help selecting the right Flashing LED Buzzer for your high-noise environment, contact Yuxuan directly. Our engineering team provides free SPL test reports and sample validation within 48 hours.
