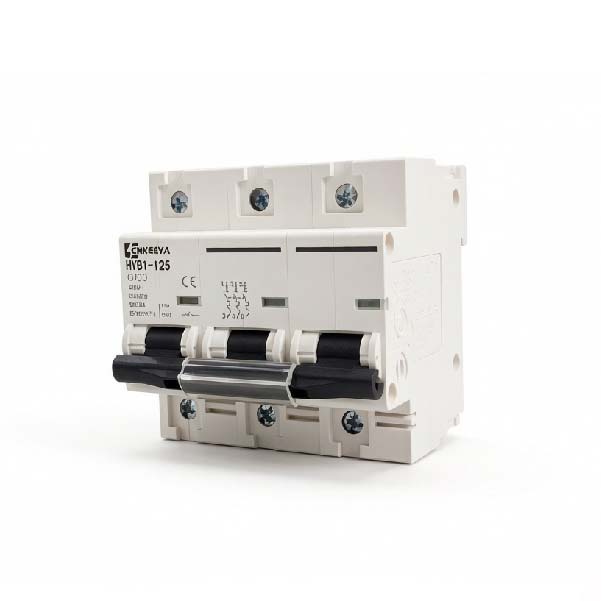

What Is the Maximum Short-Circuit Breaking Capacity of the HYB1-125 C100 Miniature Circuit Breaker

When selecting a protective device for high-current distribution networks, the interrupting rating often determines whether your equipment survives a fault event. For the HYB1-125 C100 MCB Miniature Circuit Breaker, this parameter is not just a number on a datasheet—it is the cornerstone of system safety. Manufactured under the Hanya quality standard, this 100A rated device is engineered to clear dangerous overcurrents before they escalate. But what exactly is its maximum short-circuit breaking capacity, and how does that translate to real-world protection?

Defining the Breaking Capacity

The short-circuit breaking capacity (Icn) refers to the maximum prospective fault current that a circuit breaker can interrupt safely without welding its contacts, fragmenting its housing, or failing to clear the arc. For the HYB1-125 C100 MCB Miniature Circuit Breaker, the standard rated ultimate breaking capacity is 10 kA at 230/400V AC (per IEC/EN 60898-1). This means the device can successfully open a circuit carrying up to 10,000 amperes of symmetrical fault current under laboratory conditions.

However, the service breaking capacity (Ics) is often lower—typically 7.5 kA for this model—which indicates the maximum fault current the breaker can interrupt and still be reused afterward. Both values are critical for compliance with electrical installation standards.

Breaking Capacity vs. Real-World Application

To put this into perspective, a 10 kA rating suits most commercial and light-industrial panels where the prospective short-circuit current at the distribution board rarely exceeds 6–8 kA. The Hanya engineering team optimizes the arc extinguishing chamber and magnetic blow-out coils to achieve this performance in a compact 1P or 2P footprint. Below is a breakdown of key performance parameters:

This table confirms that the HYB1-125 C100 MCB Miniature Circuit Breaker delivers consistent performance across varying fault levels, provided the upstream fuse or breaker coordinates properly.

Factors That Affect Effective Breaking Capacity

While the nameplate states 10 kA, the actual interrupting capability in your panel depends on:

• Ambient temperature – Above 45°C, thermal derating may reduce the magnetic trip threshold.

• Cable impedance – Longer runs lower the actual fault current, which is beneficial but requires verification.

• Upstream protection – Selective coordination with an Hanya RCCB or fuse ensures the MCB sees only its share of fault energy.

• Installation category – Overvoltage category III requires verified clearance distances.

For most branch circuits protected by a 100A Hanya MCB, the prospective short-circuit current at the terminal is calculated using the transformer impedance and cable length. If that value exceeds 10 kA, a current-limiting fuse upstream or a higher-rated breaker (e.g., 15 kA MCCB) becomes mandatory.

Frequently Asked Questions

Q1: Can the HYB1-125 C100 MCB Miniature Circuit Breaker interrupt a 12 kA fault current if the supply transformer is large?
A: No. The HYB1-125 C100 MCB Miniature Circuit Breaker has a verified Icn of 10 kA under IEC 60898-1. Applying it to a circuit with a prospective fault current above 10 kA voids its certification and risks catastrophic failure—contact welding, arc flash, or housing rupture. For systems exceeding 10 kA, you must either reduce the fault current with series impedance (cables, reactors) or upgrade to an Hanya MCCB with a 25 kA or 36 kA rating. Always perform a short-circuit study before installation.

Q2: What is the difference between Icn (10 kA) and Ics (7.5 kA) for this MCB, and why does it matter to end-users?
A: Icn is the ultimate breaking capacity—the breaker can clear one fault at 10 kA but must be replaced afterward because internal contacts and arc chutes may suffer permanent damage. Ics is the service breaking capacity at 7.5 kA, meaning the same HYB1-125 C100 MCB Miniature Circuit Breaker can clear a fault at that level and remain functional for continued service. For industrial users, Ics is more practical because it reduces downtime and replacement costs. If your calculated fault current is 8 kA, this MCB will trip and reset normally. If it hits 10 kA, plan for immediate replacement after the event.

Q3: Does the breaking capacity change when the HYB1-125 C100 MCB is used in a DC circuit or at a higher frequency?
A: Yes, significantly. The 10 kA rating is strictly valid for AC 50/60 Hz at 230/400V. For DC applications, the arc extinction is more challenging because DC has no natural current zero crossing. The HYB1-125 C100 MCB Miniature Circuit Breaker is not DC-rated by default; using it on DC reduces the breaking capacity to roughly 6 kA at 125V DC (single pole) and 3 kA at 250V DC (two poles in series). For 400 Hz aircraft or marine systems, the breaking capacity drops further due to faster arc re-ignition. Always consult the Hanya technical datasheet for derating curves before applying this MCB outside its AC rating.

Coordination and Selectivity

To maximize safety, pair the HYB1-125 C100 MCB Miniature Circuit Breaker with an upstream Hanya fuse or RCD that has a higher breaking capacity (e.g., 15 kA). This creates a cascading scheme where the fuse clears extreme faults, and the MCB handles lower overcurrents. The table below shows recommended upstream devices:

Final Verdict

The HYB1-125 C100 MCB Miniature Circuit Breaker delivers a robust 10 kA ultimate breaking capacity, making it a dependable choice for commercial panels, machinery feeders, and sub-distribution boards. Its C-curve characteristic ensures magnetic trip between 500–1000 A, protecting motors and transformers against sudden surges. However, always verify your site’s prospective fault current using a power analyzer or simulation tool. When in doubt, choose a higher-rated Hanya device or add current-limiting components upstream.
