What Is the Difference Between a High-Speed Stamping Mold and a Conventional Stamping Mold
2026-09-28
In modern metal manufacturing, selecting the right tooling directly affects output, cost per part, and long-term profitability. A High-Speed Stamping Mold is engineered for rapid stroke rates, tight tolerances, and extended service life, while a conventional stamping mold prioritizes simplicity and lower upfront investment. At Qiren, we design and manufacture both types, giving us a clear view of where each excels and where each falls short. This article breaks down the real differences so you can specify the right tool for your press, material, and production volume.
Core Differences at a Glance
| Feature | High-Speed Stamping Mold | Conventional Stamping Mold |
|---|---|---|
| Typical stroke rate | 200–1,500 SPM | 30–150 SPM |
| Tool steel grade | Powder metallurgy (PM) or carbide inserts | Standard D2, Cr12MoV |
| Guiding system | Ball cage guides, precision roller guides | Slide plates or bushings |
| Stripper design | Nitrogen gas springs, heavy-duty | Coil springs, standard |
| Heat treatment | Vacuum hardening, cryogenic treatment | Conventional quench and temper |
| Tolerance capability | ±0.005 mm or tighter | ±0.02 mm to ±0.05 mm |
| Service life | 5–20 million strokes | 0.5–2 million strokes |
| Maintenance interval | Long, predictable | Frequent, variable |
| Upfront cost | Higher | Lower |
| Best fit | High-volume, thin-gauge, precision parts | Low-to-medium volume, general parts |
Design and Material Engineering
A High-Speed Stamping Mold uses advanced die materials and surface coatings such as TiCN or AlCrN to resist adhesive wear at elevated temperatures. The die clearance is calculated dynamically to account for thermal expansion during continuous high-speed operation. Qiren applies finite element analysis to verify stress distribution before cutting steel, which reduces trial-and-error cycles on the press.
Conventional molds rely on proven, cost-effective designs. They tolerate wider clearance variation and are easier to rework manually. For job shops running mixed orders, this flexibility matters more than maximum speed.
Performance and Cost Trade-Offs
-
Cycle time: A High-Speed Stamping Mold can cut cycle time by 60–85% on suitable parts.
-
Scrap rate: Precision guiding and constant stripping force reduce burr height and dimensional drift.
-
Tooling amortization: Higher initial cost is recovered quickly when annual volume exceeds roughly 500,000 parts.
-
Energy use: High-speed lines consume more power per hour but far less per part.
-
Downtime: Predictable wear patterns allow planned maintenance windows instead of emergency stops.
When to Choose Each Type

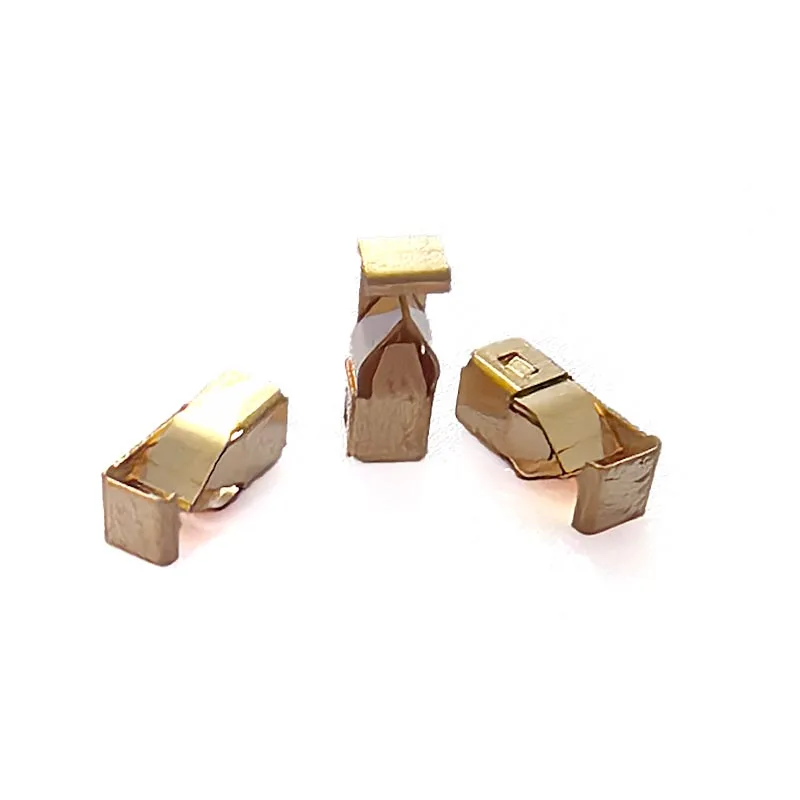

Choose a High-Speed Stamping Mold when producing connectors, motor laminations, lead frames, or any thin-gauge part with strict flatness and burr requirements. Choose a conventional mold for prototypes, low-volume brackets, or thick-gauge forming where press speed is not the bottleneck. Qiren helps customers run a break-even analysis before committing to either design.
Frequently Asked Questions
Q1: Can a conventional stamping mold be upgraded to run at high speed?
A1: Partial upgrades are possible, but a true High-Speed Stamping Mold requires redesigned guiding, upgraded spring systems, and heat-treated tool steel. Retrofitting a standard mold usually costs 60–70% of a new build while delivering only part of the performance gain. Qiren recommends a full redesign when target stroke rates exceed 300 SPM.
Q2: What is the typical lead time for a High-Speed Stamping Mold?
A2: Lead time depends on cavity count, tolerance class, and coating requirements. Standard projects run 6–10 weeks, while complex progressive dies with carbide inserts can take 12–16 weeks. Qiren provides a milestone schedule at order confirmation so production planning stays accurate.
Q3: How do I know if my press is compatible with a High-Speed Stamping Mold?
A3: Check press stroke rate, bed parallelism, ram guidance, and feeder accuracy. A High-Speed Stamping Mold needs a press with low vibration, precise bottom-dead-center repeatability, and a high-speed servo feeder. Qiren reviews your press specifications free of charge before quoting.
Conclusion
The choice between a High-Speed Stamping Mold and a conventional mold comes down to volume, precision, and total cost of ownership. Qiren designs, builds, and supports both categories with full engineering documentation and after-sales service. Contact Qiren today to request a tooling feasibility study and quote for your next stamping project.
