What Is an MC4 Connector Y Branch and Why Is It Important for Solar Systems?
2026-05-12
As solar energy systems continue to grow in popularity, reliable and efficient cable connections have become more important than ever. One essential component in photovoltaic systems is the MC4 Connector Y Branch. This connector helps installers combine multiple solar panels safely and efficiently while improving system flexibility and performance.
For solar installers, distributors, and project engineers, choosing a high-quality MC4 Connector Y Branch can directly affect electrical stability, installation speed, and long-term safety. As a professional manufacturer in the solar energy industry, Ningbo Dsola New Energy Technical Co., Ltd. provides durable and high-performance solar connectors designed for modern photovoltaic applications.
1. Introduction to MC4 Connector Y Branch

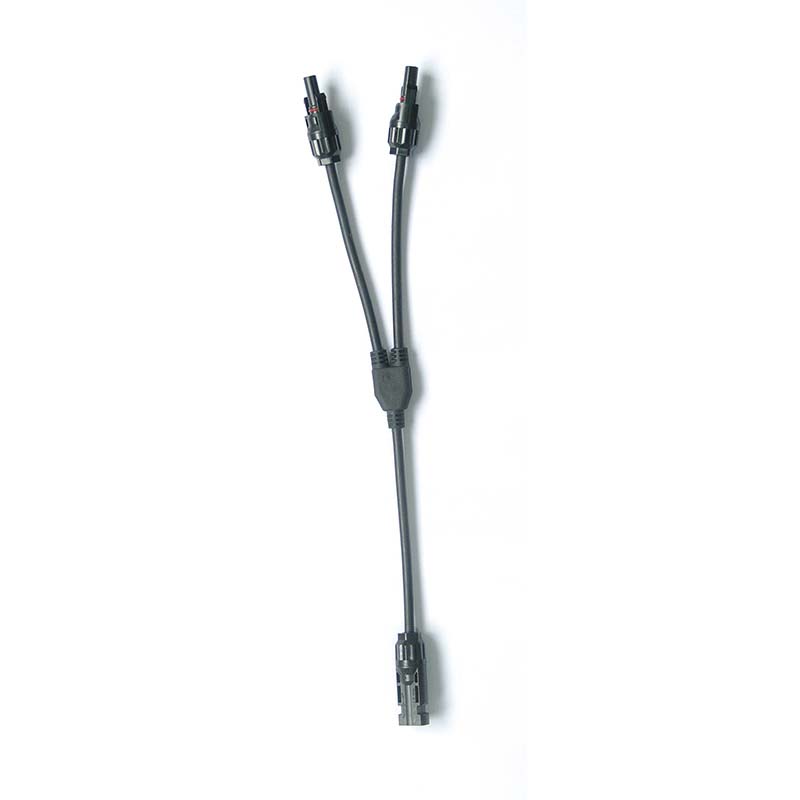

An MC4 Connector Y Branch is a special solar connector designed to connect multiple photovoltaic panels in parallel. The "Y" shape allows one connector to split into two or more connections, simplifying cable management in solar installations.
These connectors are commonly used in:
- Residential solar systems
- Commercial rooftop installations
- Portable solar generators
- Off-grid photovoltaic systems
- Solar farms
The connector is compatible with standard MC4 interfaces, making it easy to integrate into existing systems.
2. How Does an MC4 Connector Y Branch Work?
The MC4 Connector Y Branch works by combining the positive or negative outputs from several solar panels into a single cable connection. This configuration helps create parallel connections between panels.
Simple Working Principle
| Component | Function |
|---|---|
| Male Connector | Transfers positive current |
| Female Connector | Transfers negative current |
| Y Branch Splitter | Combines or divides connections |
| Locking Mechanism | Ensures secure connection |
In a solar array, multiple panels often need parallel wiring to maintain voltage while increasing current. The MC4 Connector Y Branch provides a fast and safe solution without complicated manual wiring.
3. Main Advantages of Using MC4 Connector Y Branch
Easy Installation
The plug-and-play design reduces installation time significantly. Installers can connect panels quickly without additional tools.
Reliable Electrical Performance
High-quality connectors ensure stable conductivity and minimize power loss during transmission.
Waterproof and Dustproof
Most premium MC4 Connector Y Branch products feature IP67 or IP68 protection ratings, making them suitable for outdoor environments.
Strong Durability
The connectors are typically made from UV-resistant PPO or PA materials, allowing long-term use under sunlight, rain, and harsh weather conditions.
Enhanced System Flexibility
Solar systems can be expanded more conveniently with Y branch connectors.
4. Applications in Solar Power Systems
The MC4 Connector Y Branch is widely used in different solar applications.
Residential Rooftop Systems
Homeowners use these connectors to simplify panel expansion and improve installation efficiency.
Commercial Solar Projects
Large-scale commercial systems often require parallel panel connections, where MC4 Y branch connectors reduce labor costs and wiring complexity.
Portable Solar Solutions
Portable solar kits and RV solar systems benefit from compact and reliable connectors.
Agricultural Solar Projects
Solar-powered irrigation systems and agricultural equipment rely on weather-resistant MC4 connectors for stable operation.
5. Important Features to Consider
Choosing the right MC4 Connector Y Branch is critical for system safety and performance.
Key Features Checklist
- High current carrying capacity
- UV resistance
- Waterproof protection
- Flame-retardant materials
- Low contact resistance
- Secure locking system
- TÜV or CE certification
Recommended Technical Parameters
| Parameter | Typical Value |
|---|---|
| Rated Current | 30A |
| Rated Voltage | 1000V DC |
| Protection Level | IP67 |
| Contact Resistance | ≤0.5mΩ |
| Operating Temperature | -40°C to +90°C |
These specifications help ensure stable performance in demanding solar environments.
6. MC4 Connector Y Branch vs Traditional Wiring
Many installers compare MC4 Y branch connectors with conventional manual cable splicing.
| Feature | MC4 Connector Y Branch | Traditional Wiring |
|---|---|---|
| Installation Speed | Fast | Slow |
| Safety | High | Moderate |
| Waterproof Ability | Excellent | Depends on insulation |
| Maintenance | Easy | Complicated |
| Appearance | Clean and organized | Messy |
| Reliability | Stable | Variable |
Using MC4 Connector Y Branch products can significantly reduce installation risks and improve the professional appearance of solar systems.
7. Why Choose Ningbo Dsola New Energy Technical Co., Ltd.
Ningbo Dsola New Energy Technical Co., Ltd. specializes in solar connectors, photovoltaic accessories, and renewable energy connection solutions.
Company Advantages
- Professional solar connector manufacturer
- Strict quality control system
- Advanced production equipment
- International certifications
- OEM and ODM support
- Competitive pricing
- Fast delivery capability
The company focuses on providing reliable products for global solar energy markets while maintaining high manufacturing standards.
Product Highlights
The MC4 Connector Y Branch products from Ningbo Dsola New Energy Technical Co., Ltd. offer:
- Excellent conductivity
- Long service life
- Strong environmental resistance
- Easy installation
- Compatibility with mainstream MC4 systems
These advantages make the products ideal for professional solar engineering projects.
8. FAQ
What is the purpose of an MC4 Connector Y Branch?
It is mainly used to connect multiple solar panels in parallel safely and efficiently.
Is MC4 Connector Y Branch waterproof?
Yes. Most high-quality products provide IP67 or IP68 waterproof protection for outdoor use.
Can MC4 Y branch connectors reduce power loss?
Yes. Good-quality connectors provide low contact resistance and stable conductivity, reducing energy loss.
Are MC4 connectors compatible with all solar panels?
Most solar panels using standard MC4 interfaces are compatible with MC4 Connector Y Branch products.
Why is material quality important?
High-quality materials improve durability, UV resistance, and electrical safety in long-term outdoor applications.
Conclusion
The MC4 Connector Y Branch plays an essential role in modern photovoltaic systems by simplifying wiring, improving installation efficiency, and enhancing overall electrical reliability. Whether for residential rooftops or large commercial solar projects, choosing a durable and certified connector is critical for long-term system performance.
As an experienced solar connector manufacturer, Ningbo Dsola New Energy Technical Co., Ltd. is committed to delivering reliable photovoltaic connection solutions for global customers. If you are looking for high-quality MC4 Connector Y Branch products for your solar projects, please contact us today for professional support and customized solutions.
