What Is a Fusible Disconnect Switch ?

In today’s world of complex electrical systems, safety and reliability are paramount. A Fusible Disconnect Switch is a critical component used to safely isolate electrical circuits and protect them from overcurrent conditions. Unlike standard disconnect switches, fusible types are designed with built-in fuses that automatically break the circuit when current levels exceed safe limits. This dual functionality of manual disconnection and automatic protection makes fusible disconnect switches a preferred choice for industrial, commercial, and residential applications.

At its core, a fusible disconnect switch performs two vital roles:

• Isolation: It allows operators to manually disconnect power during maintenance, equipment upgrades, or emergencies.

• Overcurrent Protection: Integrated fuses interrupt excessive current flow, preventing overheating, equipment damage, and potential fire hazards.

Key Applications

Fusible disconnect switches are widely used in:

• Industrial manufacturing plants – to protect heavy machinery and control panels.

• Commercial buildings – for HVAC systems, lighting panels, and elevators.

• Renewable energy setups – ensuring safe energy distribution in solar and wind power systems.

• Residential projects – protecting main electrical panels and sub-circuits.

Modern electrical standards, including UL 98 and IEC 60947, recommend fusible disconnect switches for circuits where both manual disconnection and fast overcurrent protection are required.

How Does a Fusible Disconnect Switch Work?

To fully understand its operation, it’s essential to break down the mechanism:

Working Principle

A fusible disconnect switch combines the functions of a standard switch with built-in fuses:

1. Normal Operation: Electricity flows through the switch contacts and fuses uninterrupted.

2. Overcurrent Scenario: When current exceeds the fuse’s rated capacity, the fuse element melts, instantly breaking the circuit.

3. Manual Isolation: Even without a fault, users can manually switch off the power for safety during maintenance.

This design ensures double-layer protection, which is particularly important in high-power environments.

Types of Fusible Disconnect Switches

There are three main types, each suited for different applications:

• Single-Throw Fusible Disconnect Switch: Operates a single circuit; best for small-scale setups.

• Double-Throw Fusible Disconnect Switch: Allows switching between two power sources; commonly used for backup generator systems.

• Heavy-Duty Fusible Disconnect Switch: Built for high-amperage industrial machinery requiring maximum protection.

Technical Specifications and Product Parameters

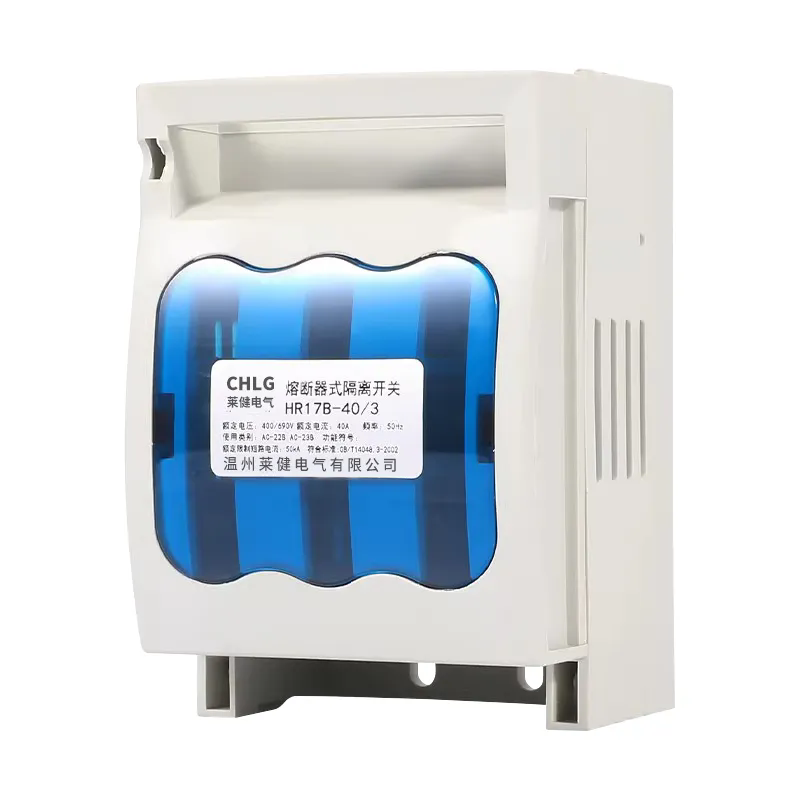

When selecting a fusible disconnect switch, choosing the correct specifications is critical for safety, performance, and compliance. Below is a summary of standard product parameters for Laijian Fusible Disconnect Switches:

These parameters ensure optimal performance for various applications, from small commercial setups to heavy-duty industrial environments.

Choosing the Right Fusible Disconnect Switch

Factors to Consider

When selecting a fusible disconnect switch, you should evaluate several factors to ensure the best match for your system:

Voltage and Current Ratings

Always select a switch that matches or exceeds your circuit’s rated voltage and current to prevent failures.

Fuse Class Compatibility

Fuses come in different classes such as J, R, and T. Ensure compatibility between the switch and the fuse to guarantee efficient protection.

Environmental Conditions

For outdoor installations or areas exposed to moisture and dust, opt for NEMA 3R or NEMA 4X enclosures for higher durability and safety.

Compliance and Certification

Always look for products tested and certified to UL and IEC standards to ensure reliability and legal compliance.

Maintenance and Accessibility

Choose a model with easy-access fuse compartments and clear handle indicators to simplify maintenance and inspections.

Fusible Disconnect Switch FAQs

Q1. What is the difference between a fusible and non-fusible disconnect switch?

A fusible disconnect switch has built-in fuses that protect against overcurrent by interrupting the circuit automatically, while a non-fusible disconnect switch only provides manual isolation without any protective function. Fusible versions are safer for critical applications where equipment protection is essential.

Q2. How do I size a fusible disconnect switch correctly?

To size your switch, consider:

1. Circuit Voltage: Match the switch’s rated voltage with your system.

2. Circuit Load (Amperage): Select a switch rated equal to or higher than the maximum current.

3. Fuse Type: Choose a fuse class compatible with both the switch and the application.

4. Environmental Conditions: If outdoors, ensure the enclosure meets the appropriate NEMA or IP standards.

Why Choose Laijian Fusible Disconnect Switches

Laijian is a trusted name in the electrical components industry, offering high-performance fusible disconnect switches engineered for safety, durability, and compliance. With advanced designs meeting UL 98 and IEC 60947-3 standards, Laijian products are built for diverse applications ranging from small commercial installations to heavy-duty industrial power systems.

By choosing Laijian, you benefit from:

• Reliable Overcurrent Protection with advanced fuse technology.

• Enhanced Safety through dual isolation and automatic circuit interruption.

• Premium Quality Materials ensuring long service life even in demanding conditions.

• Global Compliance for seamless integration across international markets.

If you’re planning a new installation, upgrading existing electrical systems, or seeking expert advice on selecting the right Fusible Disconnect Switch, Laijian provides comprehensive solutions tailored to your needs.

Contact us today to learn more about our products and get personalized technical support.
