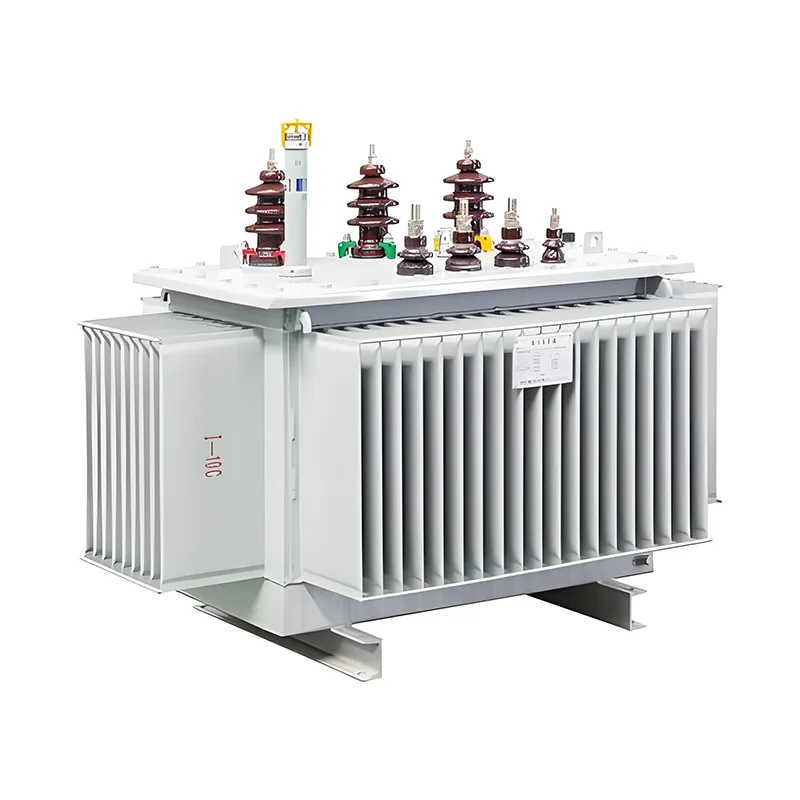

What Installation Clearances and Foundation Requirements Apply to a 2.5 MVA Power and Distribution Transformer
2026-10-21
Installing a 2.5 MVA Power and Distribution Transformer correctly is one of the most important steps in ensuring long-term reliability, safety, and compliance on any industrial or commercial site. At Youbian, we have supported hundreds of projects with practical guidance on clearances, foundations, and site preparation for medium-voltage transformers. This article summarizes the key installation clearances and foundation requirements that engineers, contractors, and facility managers should verify before energizing a 2.5 MVA Power and Distribution Transformer.
1. Why Installation Clearances Matter
Clearances serve three purposes: electrical safety, thermal performance, and maintenance access. For a 2.5 MVA Power and Distribution Transformer, clearances depend on voltage class, cooling method (ONAN/ONAF), enclosure type (oil-filled or dry-type), and local code requirements such as IEC 60076, IEEE C57, and NFPA 70 (NEC).
Key Clearance Categories
-
Phase-to-phase and phase-to-ground clearance inside the enclosure or compound
-
Front access clearance for cable termination and tap changer operation
-
Rear and side clearance for radiators, cooling fans, and ventilation
-
Overhead clearance for bushings, cable trays, and lifting equipment
-
Fire separation distance from buildings and combustible materials
2. Recommended Clearance Table for a 2.5 MVA Power and Distribution Transformer
| Clearance Item | Oil-Filled Transformer | Dry-Type Transformer | Notes |
|---|---|---|---|
| Front access (LV/HV cable side) | 1.5–2.0 m | 1.2–1.5 m | Allows safe termination and inspection |
| Rear clearance (radiator side) | 1.0–1.5 m | 0.8–1.0 m | Ensures airflow and cooling efficiency |
| Side clearance | 0.8–1.0 m | 0.6–0.8 m | Minimum for maintenance access |
| Overhead clearance to bushings | 2.5–3.0 m | 2.0–2.5 m | Based on voltage class and cable routing |
| Fire separation from building | 3.0–7.5 m | 1.5–3.0 m | Follow local fire code and insurer requirements |
| Compound fencing (outdoor) | 2.4 m high | N/A | Restrict unauthorized access |
3. Foundation Requirements
A properly designed foundation protects the 2.5 MVA Power and Distribution Transformer from settlement, vibration, and moisture ingress.
Essential Foundation Checks
-
Load-bearing capacity: Foundation must support the transformer's total operating weight, including oil, core, windings, and accessories.
-
Reinforced concrete pad: Typically 150–250 mm thick, reinforced with steel mesh, and leveled to ±2 mm.
-
Oil containment (oil-filled units): Bunded pit or oil-retention basin sized to hold at least 100% of the oil volume.
-
Vibration isolation: Anti-vibration pads or spring mounts for units installed near sensitive equipment.
-
Cable trench and grounding: Provision for cable entry, earthing conductors, and neutral grounding.
-
Drainage and ventilation: Sloped pad with drainage channels and adequate airflow for outdoor installations.
4. Frequently Asked Questions
Q: How much space is required around a 2.5 MVA Power and Distribution Transformer for maintenance?
A: A minimum of 1.5–2.0 m at the front access side, 1.0–1.5 m at the radiator side, and 0.8–1.0 m on the remaining sides is generally recommended. These distances allow safe cable termination, tap changer operation, cooling inspection, and IR thermography without removing enclosures.
Q: What foundation strength is needed for a 2.5 MVA Power and Distribution Transformer?
A: The foundation must be designed for the transformer's total operating weight plus a safety factor, typically 1.5–2.0 times the static load. A reinforced concrete pad of 150–250 mm thickness with proper compaction and leveling is standard practice, and soil bearing capacity should be verified by a structural engineer.
Q: Does a 2.5 MVA Power and Distribution Transformer require an oil containment pit?
A: Yes, for oil-filled units, local environmental and fire codes usually require an oil retention pit or bund capable of holding at least 100% of the transformer oil volume. Dry-type units do not require oil containment but still need drainage and ventilation provisions.
5. Compliance and Best Practices
Always confirm clearances and foundation design against the latest project drawings, local electrical codes, and insurer requirements. At Youbian, every 2.5 MVA Power and Distribution Transformer is supplied with detailed dimension drawings, weight data, and installation recommendations to simplify site planning and approval.
