What Exactly Are Surge Protection Devices?
2025-11-05
In an era where our lives are increasingly digitized and dependent on sophisticated electronics, the invisible threat of electrical surges looms larger than ever. A single power surge, lasting only microseconds, can inflict irreversible damage on your valuable equipment, leading to costly repairs, data loss, and significant operational downtime.
Demystifying Surge Protection - The Invisible Guardian of Your Electrical System
At its core, an electrical Surge Protection Devices, or transient overvoltage, is a brief but extreme spike in voltage within your electrical circuit. These spikes can be thousands of volts, far exceeding the standard operating voltage of your appliances and devices. Imagine the electrical grid as a river; a surge is a sudden, powerful tidal wave crashing through, threatening to overflow and destroy everything in its path. Surges originate from two primary sources: external and internal.
-
External Sources: The most dramatic source is lightning, which can induce massive surges through power lines, data lines, or even the ground. However, more common external causes include utility grid switching, power outages, and downed power lines miles away from your location.
-
Internal Sources: These are far more frequent, accounting for up to 80% of all transient surges. They are generated within your own home or facility by the cycling on and off of high-power equipment like air conditioners, elevators, refrigerators, and industrial machinery.
This is where the Surge Protection Device earns its keep. An SPD is a specialized component engineered to limit transient overvoltages and divert surge currents safely to the ground. It acts like a highly intelligent pressure relief valve. Under normal operating conditions, the SPD remains on standby, monitoring the circuit voltage. The moment it detects a voltage spike that exceeds a safe threshold, it instantaneously creates a low-resistance path to the earth, channeling the dangerous surge energy away from your connected equipment. Once the surge has passed, the SPD resets itself, ready for the next event. This entire process happens in nanoseconds, faster than the blink of an eye, ensuring the surge never reaches your sensitive television, computer, or medical equipment.
A Technical Deep Dive - Understanding the Critical Parameters of an SPD
Selecting the right SPD is not a one-size-fits-all endeavor. It requires a nuanced understanding of its technical specifications to ensure compatibility and optimal performance with your specific electrical system. Professional installers and engineers rely on a set of key parameters to make this choice. The following table provides a clear, professional overview of these critical specifications.
| Parameter | Description & Significance |
|---|---|
| Voltage Rating (V~) | The maximum continuous operating voltage (MCOV) the SPD can withstand. It must be compatible with your local grid voltage (e.g., 230V, 120V) to ensure it doesn't activate unnecessarily during normal minor fluctuations. |
| Nominal Discharge Current (In) | A standardized test current (8/20 µs waveform) that represents the SPD's ability to withstand multiple, standard surges. It indicates the basic robustness and longevity of the device. Common values are 10kA, 15kA, and 20kA. |
| Maximum Discharge Current (Imax) | This is the peak value of a single 8/20 µs current wave that the SPD can handle once without failure. It represents the absolute maximum surge the device can divert and is a crucial indicator of its protective capacity against very large, rare surges like those from nearby lightning strikes. |
| Protection Level (Up) | Perhaps the most critical parameter for your equipment's safety. This is the maximum voltage that will be "let through" to your equipment after the SPD has done its job. A lower Up value means better protection. For sensitive electronics, you need an SPD with a very low Up. |
| Response Time | The time it takes for the SPD to react to a surge and begin diverting it. Modern SPDs have response times in the nanosecond range, which is fast enough to clamp even the fastest rising surges. |
| Technology Type (Type 1, 2, 3) | SPDs are categorized by their installation location and the type of surges they are designed to handle. Type 1 is for service entrances, for high-energy surges like direct lightning strikes. Type 2 is the main protection for distribution boards, the most common type for whole-building protection. Type 3 are point-of-use devices for protecting specific, highly sensitive equipment. |
Understanding these parameters allows you to move beyond a simple product name and select an SPD that offers genuine, reliable protection tailored to your specific risk profile and the sensitivity of the equipment you need to protect.
Surge Protection Device FAQ - Your Top Questions, Expertly Answered
Despite their importance, SPDs are often misunderstood. Here are answers to some of the most frequently asked questions to clarify common misconceptions.
Q: My building already has lightning rods and circuit breakers. Do I still need a dedicated SPD?
A: Yes, absolutely. This is a critical distinction. Lightning rods are designed to protect the physical structure of a building from a direct lightning strike by providing a path to ground for the massive current. They do not protect the internal electrical wiring from the induced surges that can travel through power lines. Circuit breakers and fuses, on the other hand, are designed to protect against overcurrents that could cause overheating and fires. They are too slow to react to microsecond-long voltage surges. An SPD is the only device specifically designed to clamp these rapid voltage transients, making it a complementary and essential layer of protection that works in concert with, not in place of, your existing electrical safety systems.
Q: How long does an SPD last, and how do I know if it needs replacement?

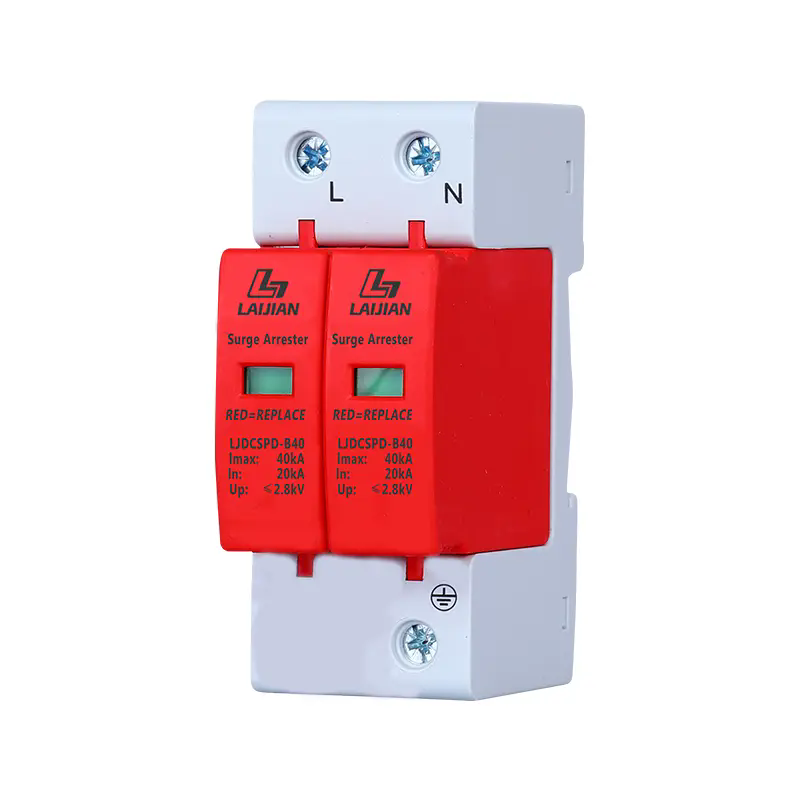

A: An SPD is not a lifetime device; it has a finite lifespan determined by the number and intensity of surges it has diverted. Think of it as a sacrificial component. Most modern SPDs come with a visual indicator window that shows green for "functional" and red for "end-of-life." It is crucial to inspect these indicators at least once a year. Even without a major surge event, all SPDs degrade over time due to minor transients and environmental factors. Manufacturers typically recommend replacing an SPD after a certain number of years (often 5-10) or immediately after a known major surge event, such as a close lightning strike, regardless of its visual status. Proactive replacement is far cheaper than replacing an entire panel of damaged electronics.
The Strategic Choice - Integrating Superior Surge Protection with Laijian Electric
In the complex landscape of electrical safety, the choice of your surge protection partner is paramount. It's not merely about purchasing a component; it's about investing in the resilience and continuity of your home or business operations. A high-quality SPD is an insurance policy for your electronic infrastructure, mitigating a low-probability but high-impact risk. When you choose a robust SPD, you are proactively preventing data corruption, hardware failure, fire hazards, and the immense inconvenience and cost associated with equipment replacement.
This is where the expertise and reliability of Laijian Electric come to the forefront. With a steadfast commitment to engineering excellence and stringent quality control, Laijian Electric has established itself as a trusted name in the electrical protection industry. Our range of Surge Protection Devices is meticulously designed and tested to meet and exceed international standards, incorporating the latest in suppression technology. We understand that protection is not a luxury but a necessity, which is why our products are built to deliver consistent, dependable performance, ensuring that your most critical assets remain secure against the unpredictable nature of power disturbances. Our technical team is dedicated to providing solutions that are not only effective but also tailored to the unique demands of your application.
To learn more about how Laijian Electric can fortify your property with a customized surge protection solution, or to get specific technical guidance for your project, we encourage you to contact us today. Our specialists are ready to assist you in conducting a risk assessment and recommending the optimal SPD configuration to create a safer, more resilient environment for your electronics.
