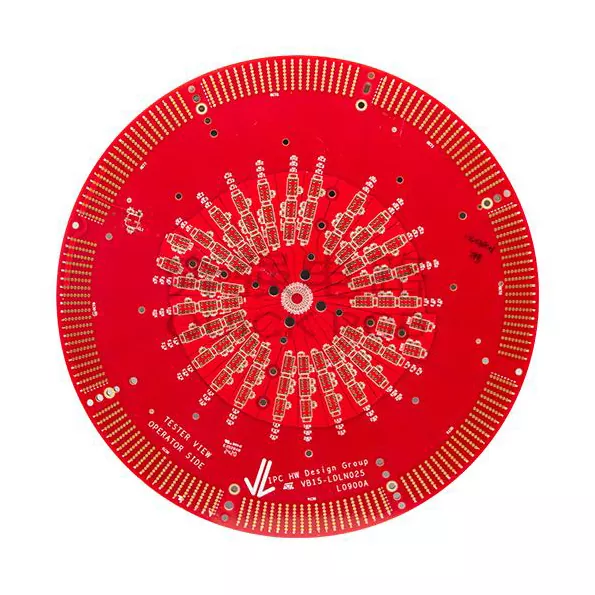

What Causes Signal Integrity Issues in a Semiconductor Testing PCB and How Can You Fix Them

Signal integrity problems in a Semiconductor Testing PCB can silently corrupt test data, reduce yield correlation, and undermine the credibility of an entire ATE program. At Aisen, we have seen how even minor impedance discontinuities or poorly controlled return paths can turn a high-speed test board into a source of false failures. This article breaks down the root causes of signal integrity degradation and the practical fixes that keep Semiconductor Testing PCB performance predictable across wafer probe, final test, and burn-in applications.

Common Causes of Signal Integrity Issues

Impedance and Stackup Control

A Semiconductor Testing PCB carries fast edges between the DUT, probe card, and tester interface. When trace geometry, dielectric thickness, or reference plane spacing deviates from the target impedance, reflections appear at every transition. Aisen recommends a fully defined stackup with simulated single-ended and differential impedance, plus tight fabrication tolerances verified through TDR coupons on each lot.

Return Path and Crosstalk Management

Signal integrity is only as good as the return path beneath it. Splits in reference planes force return currents into unintended loops, producing ground bounce and crosstalk. Aisen designs Semiconductor Testing PCB layouts with continuous ground planes, dense via stitching, and disciplined layer assignment so high-speed nets never cross plane splits. For dense probe arrays, differential pairs and guarded traces further isolate sensitive channels.

Material Selection and Power Integrity

High-frequency test signals suffer from dielectric loss and skin effect. Selecting low-Dk, low-Df materials and minimizing stub lengths preserves eye height. Equally important is power integrity: a clean decoupling network and low-impedance power planes prevent supply noise from modulating switching thresholds. Aisen validates these choices with insertion loss and eye diagram measurements before release.

Verification and Fixes

• Run TDR and VNA measurements on critical nets.

• Perform eye diagram and jitter analysis at the tester interface.

• Use simulation to pre-check stackup and routing before fabrication.

• Apply backdrilling and via optimization for high-speed layers.

• Confirm thermal and mechanical stability under test-cycle conditions.

Frequently Asked Questions

Q: What is a Semiconductor Testing PCB?
A: A Semiconductor Testing PCB is a specialized circuit board used to interface a device under test with automated test equipment, carrying power, high-speed signals, and control lines while maintaining controlled impedance and reliable contact during wafer probe, final test, or burn-in.

Q: Why does impedance control matter so much in a Semiconductor Testing PCB?
A: Impedance control prevents reflections and ringing that distort test signals; without it, a Semiconductor Testing PCB can produce false pass/fail results, so Aisen defines stackup, trace geometry, and fabrication tolerances with TDR verification on every production lot.

Q: How can crosstalk be reduced in a Semiconductor Testing PCB?
A: Crosstalk is reduced by increasing trace spacing, assigning continuous ground references, using differential routing for sensitive channels, and adding shielding or guard traces; Aisen applies these rules during layout and confirms them with eye diagram and jitter measurements.

Q: When should low-loss materials be used in a Semiconductor Testing PCB?
A: Low-Dk, low-Df materials should be used when test frequencies or edge rates cause measurable attenuation and eye closure; Aisen evaluates insertion loss and selects laminates that preserve signal fidelity without unnecessary cost.

Q: How does Aisen verify signal integrity before delivery?
A: Aisen combines simulation, TDR and VNA measurements, eye diagram analysis, and lot-level fabrication checks to confirm that each Semiconductor Testing PCB meets its impedance and loss targets before shipment.
