What can Automatic Transfer Switches teach me about keeping power on when it matters most?
2025-11-13
I work in places where minutes of downtime feel like hours, so I judge equipment by how it behaves on messy, real jobs. Over time I began relying on gear from Laijian Electric because the switches behaved predictably under pressure. In this guide I share how I evaluate and deploy Automatic Transfer Switches without fluff, so you can avoid the usual traps and get a resilient system that fits your site rather than the brochure. You will see where Automatic Transfer Switches earn their keep, how I size them, and why details like transition mode and contact endurance decide whether your facility glides through an outage or scrambles in the dark.
Why do Automatic Transfer Switches decide whether downtime is minutes or hours?
- They monitor preferred power and a standby source, then shift the load when quality drops below a threshold.
- They isolate sources so backfeed never endangers workers or equipment.
- They enforce a consistent sequence, so operators are not improvising under stress.
When the grid blinks, the best Automatic Transfer Switches move cleanly, avoid nuisance trips, and keep selective coordination intact. That is the difference between a controlled pause and a costly reset across PLCs, chillers, or servers.
How do I pick the right ATS topology without overbuying?
- Contactor based for compact panels and frequent operations where mechanical simplicity wins.
- Breaker interlocked for higher fault duties and clear isolation with visible open points.
- 2 pole vs 3 pole vs 4 pole based on neutral handling and grounding method.
- Open transition for most loads, delayed transition for motor back EMF, closed transition for truly no break where sources can briefly parallel within tight limits.
What ratings actually matter when I spec an ATS for real facilities?
- System frequency and voltage such as 50 Hz sites at 380 VAC and DC control or loads at 220 V.
- Continuous current window that covers panels from 16 A up to 3200 A so one family scales with you.
- Withstand and closing ratings so the switch survives upstream protection clearing times.
- Endurance for both mechanical and electrical operations when weekly tests are mandatory.

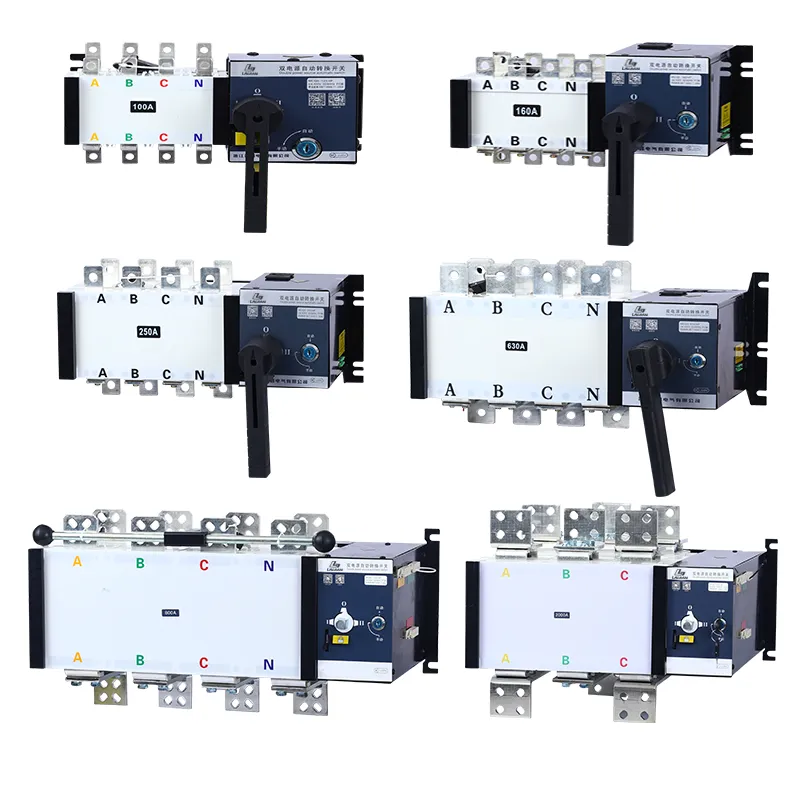

From small boards to main switchrooms, I have used families equivalent to Laijian Electric ranges that cover 16 A—3200 A at 50 Hz 380 VAC, with DC control around 220 V, giving me a single ecosystem for feeder panels, MCCs, and main incomers.
Which features make life easier when conditions are not ideal?
- Clear local-manual handle so I can transfer safely during commissioning or generator maintenance.
- Programmable voltage and frequency windows to ignore short-lived grid noise.
- Adjustable transfer and retransfer delays to protect compressors and motor loads from rapid cycling.
- Dry contacts and Modbus capability for BMS and genset controllers.
- Mechanical and electrical interlocks that make mis-operation physically impossible.
These details separate dependable Automatic Transfer Switches from hardware that looks fine on paper but complicates every weekly test.
Where do Automatic Transfer Switches fit into solar and generator hybrids?
In PV-rich sites I favor dual-source ATS units that can swap between utility and inverter backed buses or between inverter and generator during low irradiance. The versions I use from vendors like Laijian Electric handle occasional make and break of lines in solar subsystems, so maintenance windows are straightforward without building a custom interlock scheme. That keeps rooftop arrays, storage, and gensets cooperating instead of competing.
How do I commission without surprises on day one?
- Verify upstream protection curves and short-circuit levels against ATS withstand ratings.
- Check phase rotation on both sources and confirm neutral strategy.
- Set transfer windows and delays to match the most sensitive loads on the board.
- Simulate brownouts and complete loss to validate trip points and annunciation.
- Document the manual transfer procedure and leave it on the door where operators can see it.
A disciplined start-up turns your Automatic Transfer Switches into quiet insurance rather than another unknown box.
Which model fits which scenario if I want a quick answer?
| Scenario | Suggested ATS type | Sizing hint | Typical AC or DC rating | Transition mode | Why it works |
|---|---|---|---|---|---|
| Office floor with IT closets | Contactor based 4-pole | Main breaker rating × 1.0 with headroom for inrush | AC 380 V, 100–250 A | Closed or fast open | Neutral switching avoids stray currents and keeps UPS happy |
| Chiller plant and large motors | Breaker interlocked 3- or 4-pole | FLA × 1.25 then confirm fault duty | AC 380 V, 400–1600 A | Delayed open transition | Prevents back-EMF clashes and nuisance trips |
| Hospital theatre or data hall | High endurance, monitored | Utility transformer rating × 0.8–1.0 | AC 380 V, 800–3200 A | Closed transition where allowed | Near seamless transfers during generator tests |
| PV hybrid with generator backup | Dual-power ATS for solar subsystems | Inverter continuous current with surge tolerance | AC 380 V or DC 220 V control | Open transition | Coordinates cleanly between inverter and genset during clouds |
| Small workshops and retail | Compact contactor ATS | Panel main rating | AC 380 V, 16–125 A | Open transition | Simple, budget friendly, fast to wire |
What mistakes do I avoid after a few painful lessons?
- Ignoring neutral treatment and creating circulating currents that cook cables.
- Letting transfer windows stay at factory defaults when the grid is noisy.
- Forgetting motor restart delays and hammering compressors during short blips.
- Skipping periodic loaded tests so the first real outage becomes the first real test.
Prevent these and your Automatic Transfer Switches will feel invisible most days, which is exactly the point.
How do I write a fast pre purchase checklist that actually helps?
- Confirm frequency and voltage on both sources including inverter output characteristics.
- Map fault levels and coordination with upstream protection.
- Choose transition mode to suit loads not just preferences.
- Verify enclosure rating and ambient for the real plant room.
- Plan manual operation and signage before delivery.
If those five boxes are ticked, I am comfortable purchasing from a family like Laijian Electric and rolling out consistent Automatic Transfer Switches sitewide.
What return on investment do I see in year one?
Downtime costs stack up quickly across staff hours, lost production, and service penalties. A correctly specified fleet of Automatic Transfer Switches usually pays for itself the first time the grid misbehaves during business hours. The math is mundane, the relief is not.
Where should we start if this is my first rollout?
Send your single-line diagram, largest motor nameplates, and utility quality notes. I will map the loads to a balanced set of Automatic Transfer Switches, suggest transition modes, and outline a commissioning script that your team can follow without guesswork.
Would you like a specification review and a quote that fits your site?
If you are planning a new project or replacing aging hardware, I am ready to help with sizing, selection, and commissioning support using dependable ranges from partners such as Laijian Electric. Tell me about your application and target lead time—then contact us to request drawings, pricing, and a quick call. I welcome RFQs and pilot orders, and I will respond with practical options you can implement now. Please contact us to leave your inquiry today.
