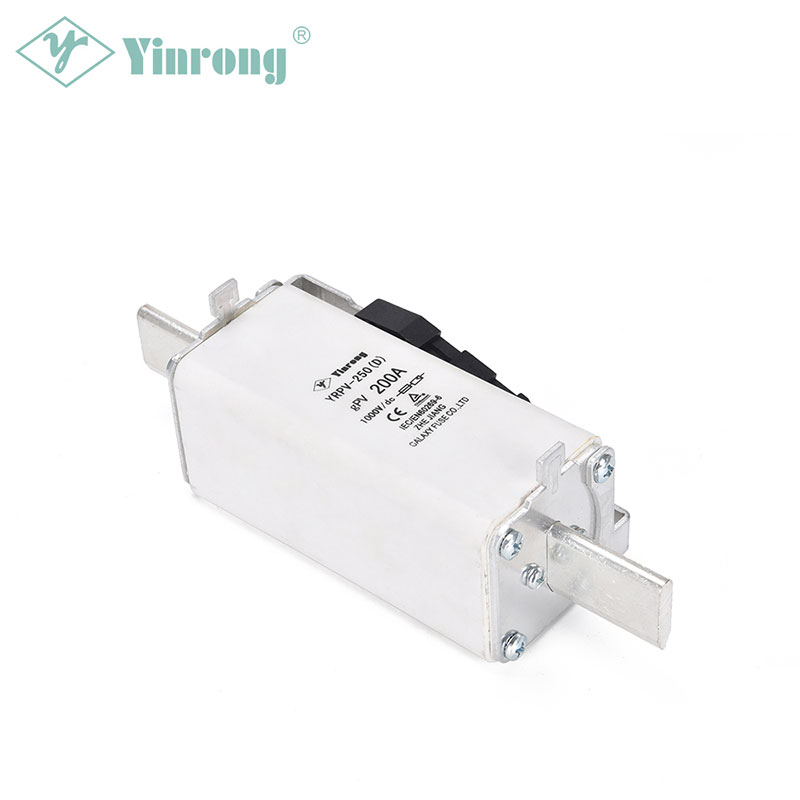

What Are the Temperature Ratings for a 1000VDC 250A NH1XL Solar PV Fuse Link
2026-06-16
When designing or maintaining photovoltaic systems, understanding thermal limits is critical. The 1000VDC 250A NH1XL Solar PV Fuse Link from Galaxy Fuse is engineered to operate reliably under extreme conditions. Its temperature rating determines safety, performance, and service life in solar combiner boxes and string protection applications.
Standard Temperature Ratings (IEC 60269-6)
The 1000VDC 250A NH1XL Solar PV Fuse Link follows international standard IEC 60269-6 (gPV type). Below are the key thermal parameters:
| Parameter | Rating / Value | Notes |
|---|---|---|
| Ambient temperature range (operation) | -40°C to +90°C | Full load capability |
| Maximum hot-spot temperature (body) | +120°C | Under fault or overload |
| Temperature rise at rated current | ≤75°C above ambient | Measured at terminals |
| Storage temperature | -40°C to +85°C | Dry environment |
| Derating start point | Above +40°C | Current reduction required |
Galaxy Fuse tests each 1000VDC 250A NH1XL Solar PV Fuse Link to ensure minimal temperature drift over 25+ years.
Thermal Derating Table (Example at 250A)
If ambient exceeds +40°C, reduce continuous current as shown:
| Ambient Temp (°C) | Max Continuous Current (A) | % of Rated Current |
|---|---|---|
| +40 | 250.0 | 100% |
| +50 | 225.0 | 90% |
| +60 | 200.0 | 80% |
| +70 | 170.0 | 68% |
| +85 | 125.0 | 50% |
Failure to derate a 1000VDC 250A NH1XL Solar PV Fuse Link can cause nuisance blowing or accelerated aging.
FAQ – Common Questions About Temperature Ratings
Q1: What happens if the 1000VDC 250A NH1XL Solar PV Fuse Link operates above +90°C ambient?
A: Continuous operation above +90°C ambient violates the fuse’s design limits. The silver-element melting time reduces unpredictably, and the sand-filling material may undergo thermal degradation. Galaxy Fuse recommends forced ventilation or relocating the fuse holder. Sustained high temperatures also increase contact resistance at the blade terminals, leading to localized overheating and premature failure. In extreme cases (>110°C), the fuse body may crack, exposing live parts. Always monitor internal combiner box temperature and stay within -40°C to +90°C.
Q2: How do I measure the temperature of a 1000VDC 250A NH1XL Solar PV Fuse Link in the field?
A: Use an infrared thermometer (emissivity set to 0.95) or a Type-K thermocouple attached to the fuse body’s center. Measure under steady-state load after at least one hour of operation. Acceptable rise is ≤75°C above ambient. For example, at 30°C ambient, the body should stay below 105°C. Galaxy Fuse provides thermal imaging guidelines with every batch. If any terminal reads 15°C hotter than the fuse body, check for loose connections. Always compare both ends – uneven heating indicates poor contact or mismatched hardware.
Q3: Does cold temperature (-40°C) affect the 1000VDC 250A NH1XL Solar PV Fuse Link performance?
A: No – the fuse operates safely down to -40°C. In fact, cold improves conductive properties and increases short-circuit withstand capability. However, two practical issues exist: plastic fuse holders become brittle, so avoid impact during installation. Secondly, moisture condensation can form on terminals before energization. Galaxy Fuse applies anti-corrosion coating to all 1000VDC 250A NH1XL Solar PV Fuse Link blade contacts. Always perform a dry-out cycle (low current for 10 minutes) after a cold night to evaporate any condensation before full load.
Why Thermal Ratings Matter for System Safety
Exceeding temperature limits on a 1000VDC 250A NH1XL Solar PV Fuse Link leads to:
-
Reduced short-circuit interrupting capacity
-
Melting of fuse body or holder
-
Fire risk inside PV combiner boxes
-
Non-compliance with UL 2579 or IEC 60269-6
Galaxy Fuse designs each 1000VDC 250A NH1XL Solar PV Fuse Link with high-purity quartz sand and silver-plated terminals to maintain stable thermal performance. Independent lab tests confirm less than 5% resistance change after 1000 thermal cycles (-40°C to +90°C).
