What are the Key Wiring and Mounting Considerations for a Colorable Metal Push Button Switch
2026-05-07

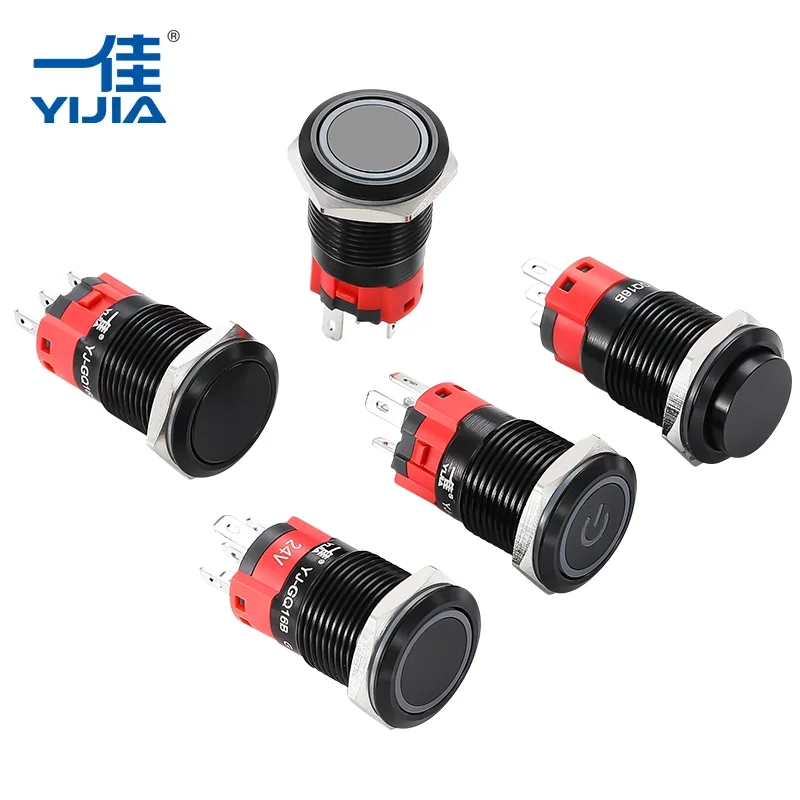

When designing modern control panels or interactive devices, selecting the right Colorable Metal Push Button Switch is only half the battle. Proper wiring and mounting determine safety, longevity, and user experience. At YIJIA, we have engineered a range of Colorable Metal Push Button Switch solutions that combine aesthetics with industrial-grade reliability. Understanding the technical nuances of installation helps avoid common failures such as short circuits, loose actuators, or compromised ingress protection.
Wiring Considerations
Electrical connections form the core of any switch application. Below are the critical factors when wiring a Colorable Metal Push Button Switch:
| Consideration | Details |
|---|---|
| Voltage and current rating | Verify the switch matches your load (e.g., 2A/36VDC for logic-level circuits or 5A/250VAC for power applications). |
| Terminal type | Screw terminals require torque control; solder lug types demand heat management; quick-connect terminals benefit from locking tabs. |
| Polarity for LED illumination | Many YIJIA colorable switches include RGB LEDs. Incorrect polarity can damage the LED – always check the common anode/cathode marking. |
| Wire gauge | Use AWG 18-22 for power circuits and AWG 24-28 for signal/LED wiring to prevent voltage drop. |
| Shielding | For inductive loads (motors, solenoids), add a flyback diode across the load to suppress back EMF. |
Mounting Considerations
Physical installation directly affects mechanical stability and panel sealing. The table below outlines best practices for mounting Colorable Metal Push Button Switch units:
| Mounting Aspect | Recommended Practice |
|---|---|
| Panel thickness | 1.0mm to 6.0mm – use the included lock washer and nut. YIJIA switches include a rubber gasket for panels up to 8mm. |
| Hole diameter | Standard 16mm, 19mm, or 22mm. Always use a stepped drill to avoid burrs that cut the gasket. |
| Torque on nut | 0.8–1.2 N·m – overtightening cracks the housing; undertightening allows rotation. |
| Sealing | IP67 requires the included silicone gasket and clean panel surface without scratches. |
| Anti-rotation pin | Some YIJIA models include a locating pin to prevent spinning – match it with a small drilled hole. |
Colorable Metal Push Button Switch – FAQ
What happens if I reverse the LED pins on a colorable metal push button switch?
Reversing the LED pins typically applies reverse voltage to the internal LED chip. Most YIJIA colorable switches do not have built-in reverse polarity protection on the illumination circuit. The LED will fail immediately or develop permanent dimming. To fix it, desolder or disconnect the terminals and rewire according to the datasheet: usually red is anode (+), black is cathode (-) for each color channel.
Can a colorable metal push button switch be panel mounted in wet outdoor environments without additional sealing?
Yes, provided the switch carries an IP67 or IP68 rating. YIJIA Colorable Metal Push Button Switch models with IP67 certification include a pre-installed silicone membrane behind the actuator and a panel gasket. However, you must mount on a flat, burr-free panel and avoid exceeding the specified torque. For high-pressure water jets (e.g., car wash buttons), an IP69K rated version is recommended. Without correct gasket compression, moisture will wick through the threads.
How do I wire a latching colorable metal push button switch to control two separate circuits?
Most latching Colorable Metal Push Button Switch units from YIJIA provide either 1NO+1NC or 2NO+2NC contact configurations. To control two separate circuits, connect one load circuit to the NO1 and COM1 terminals, and the second load to NO2 and COM2. The latching mechanism toggles both contact blocks simultaneously when the button is pressed. Ensure total current of both loads does not exceed the switch’s rated maximum. For LED wiring, use the separate LED terminals – they are independent from the switching contacts.
Contact Us
Professional integration of a Colorable Metal Push Button Switch ensures safety, device longevity, and user satisfaction. YIJIA provides full wiring diagrams, mounting templates, and technical support for every model. For custom voltages, wire harnesses, or pre-assembled switch panels, reach out to our engineering team today. Contact us via the website form or email to request a sample or discuss your project requirements.
