What Are the Key Safety Standards for Installing an Earthing Switch InDoor
2025-12-19
When integrating critical safety components like an Earthing Switch InDoor into your electrical system, adherence to established safety standards is non-negotiable. These protocols ensure personnel protection, equipment longevity, and operational reliability. At Timetricele, we engineer our indoor earthing switches not only to meet but to exceed these rigorous international and regional benchmarks, providing unparalleled safety for your switchgear and substation applications.
Compliance with the following key standards is fundamental for a secure installation:
-
IEC 62271-102: This is the primary international standard for alternating current disconnectors and earthing switches. It specifies requirements for insulation, mechanical operation, and short-circuit withstand capability.
-
IEEE C37.20.2: A pivotal North American standard for metal-clad switchgear, which includes detailed provisions for the construction, testing, and performance of interlocked Earthing Switch InDoor units.
-
Local Electrical Codes: National regulations, such as the NEC (NFPA 70) in the USA, govern installation practices to prevent electrical hazards. This includes stipulations on proper grounding and bonding.

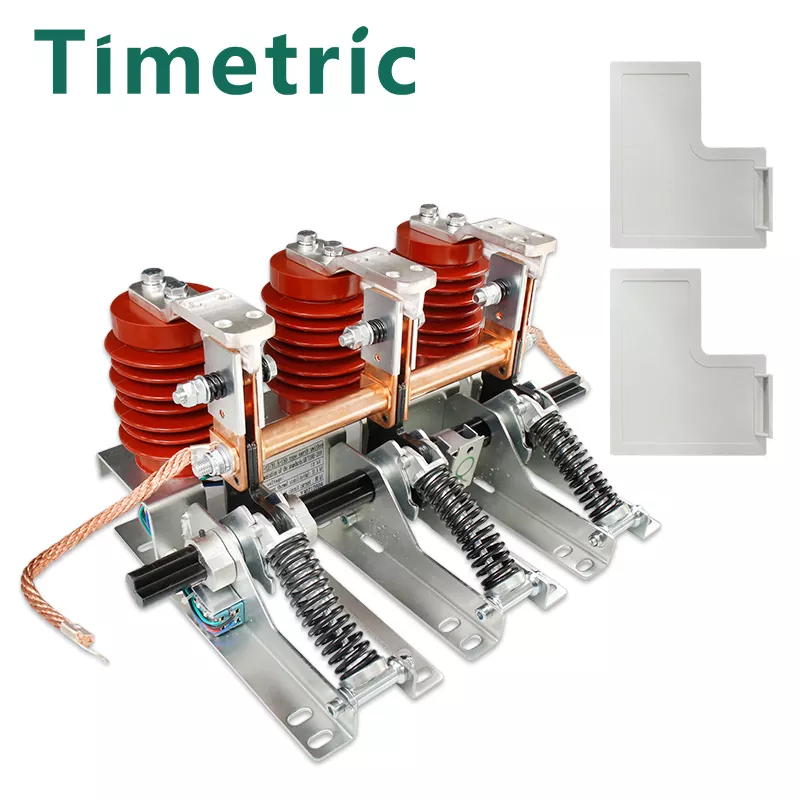

Our Timetricele Earthing Switch InDoor series is designed with these standards as a baseline. Key product parameters that ensure compliance include:
| Parameter | Timetricele Specification | Importance for Safety & Standards |
|---|---|---|
| Rated Voltage | Up to 36kV | Ensures correct application within switchgear rating. |
| Short-Time Current | 25 kA / 3s | Complies with IEC/IEEE fault current withstand requirements. |
| Mechanical Operations | ≥ 10,000 cycles | Guarantees long-term reliability and operational safety. |
| Interlocking System | Mandatory mechanical/electrical | Prevents unsafe operation, a core requirement of IEEE C37.20.2. |
| Protection Degree | IP4X (Internal compartment) | Protives against contact with live parts, per standard enclosures. |
Earthing Switch InDoor FAQ
Q: What is the primary purpose of an Earthing Switch InDoor?
A: Its primary purpose is to safely ground and isolate a section of electrical circuitry for maintenance. By creating a secure earth connection, it ensures that no dangerous voltage is present, protecting personnel from electrical shock.
Q: How does the interlock on a Timetricele switch enhance safety?
A: Our Timetricele interlocks are designed to enforce a strict operational sequence. They physically prevent the earthing switch from being closed (engaged) unless the associated circuit breaker is open and isolated, and vice-versa, eliminating the risk of grounding a live circuit.
Q: Can a Timetricele Earthing Switch InDoor be retrofitted into existing switchgear?
A: Yes, many of our Earthing Switch InDoor models are designed for compatibility and retrofitting. However, a critical safety assessment must be conducted by a qualified engineer to ensure the existing structure meets all mechanical and electrical requirements for the new component.
Adhering to safety standards is the cornerstone of effective electrical protection. Choosing a product from Timetricele means investing in certified safety, robust engineering, and peace of mind. Our switches are built to protect your most valuable assets: your people and your infrastructure.
Contact us today to discuss your specific application. Our technical experts will help you select the perfect Timetricele Earthing Switch InDoor that complies with all safety standards for your project.
