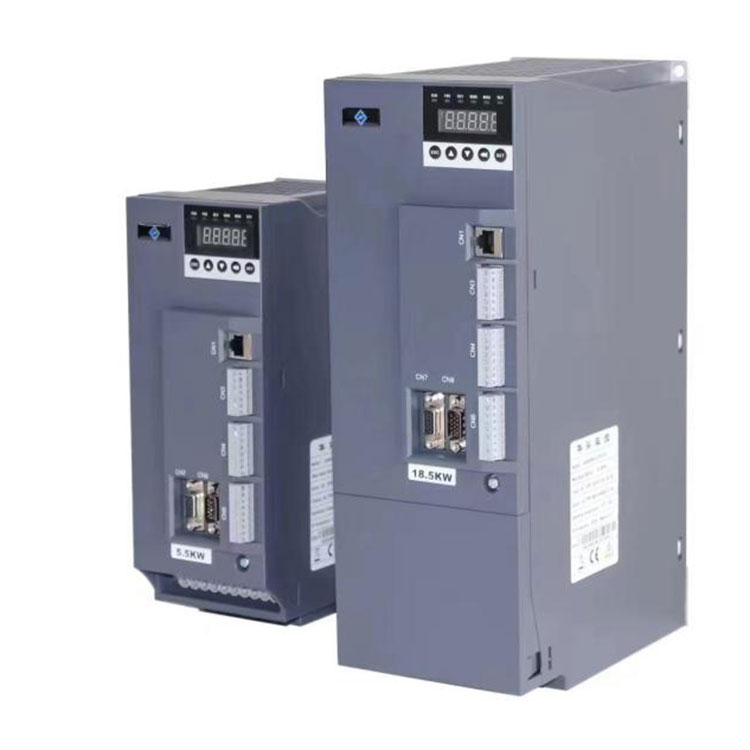

Achieving precision motion control starts with proper tuning of your AC Servo Drive. Whether in robotics, CNC machining, or automated packaging, the difference between erratic movement and seamless operation lies in understanding critical tuning parameters. At Yueli, we have helped engineers worldwide optimize their AC Servo Drive systems for maximum efficiency and accuracy. This guide breaks down the essential parameters you must configure.
| Parameter Category | Key Variables | Impact on Performance |
|---|---|---|
| Gain Settings | Proportional Gain, Integral Gain, Derivative Gain | Determines response speed and stability |
| Current Loop | Torque Command Filter, Current Feedback Bandwidth | Affects torque accuracy and motor heating |
| Velocity Loop | Speed Proportional Gain, Speed Integral Time | Controls smoothness of motion |
| Position Loop | Position Proportional Gain, Feedforward Gain | Defines positioning accuracy and following error |
Proportional Gain (Kp) – Directly influences stiffness. Too low causes sluggish response; too high leads to oscillation.
Integral Gain (Ki) – Eliminates steady-state error but may introduce overshoot if excessive.
Velocity Feedforward – Reduces following error during constant speed motion.
Torque Filter Time Constant – Suppresses mechanical resonance but adds phase lag.
Yueli recommends starting with auto-tuning if available, then fine-tuning manually. Use this sequence:
Set all gains to conservative values (50% of default).
Increase position gain until slight vibration occurs, then reduce by 20%.
Adjust velocity gain to match load inertia (measure inertia ratio first).
Apply step input and monitor settling time – aim for <10ms for high-performance applications.
Q1: How do I know if my AC Servo Drive gain settings are too high?
A1: Excessively high gain settings produce audible high-frequency noise, motor vibration even when idle, and position overshoot during direction changes. Use an oscilloscope to monitor the torque command signal – if you see sustained oscillation after a step input, reduce proportional gain by 30% and re-test. Yueli drives include a built-in vibration detection feature that alerts you when gains exceed mechanical limits.
Q2: What is the relationship between load inertia ratio and tuning parameters for an AC Servo Drive?
A2: Load inertia ratio (load inertia / motor rotor inertia) directly determines how aggressively you can set velocity loop gain. For ratios under 3:1, standard gains work well. For ratios between 5:1 and 10:1, reduce velocity gain by 40-60% and increase integral time. Above 10:1, mechanical coupling becomes critical – Yueli recommends adding an external filter or selecting a higher torque motor. Always measure inertia using the drive’s auto-tuning routine before manual adjustments.
Q3: Why does my AC Servo Drive run fine at low speed but oscillate at high speed?
A3: This typically indicates insufficient velocity feedforward or excessive torque filter delay. At high speeds, the position loop cannot correct errors quickly enough. First, enable velocity feedforward at 80-100% of the commanded speed. Second, reduce torque filter time constant to 0.1ms or lower if your mechanical system allows. Third, check for mechanical resonance above 500Hz – Yueli drives offer a notch filter to suppress specific frequencies without reducing overall gain.
Document all baseline parameters before making changes.
Test tuning results across full speed and torque range, not just at operating point.
Re-tune after any mechanical modification (belt tension change, coupling replacement).
