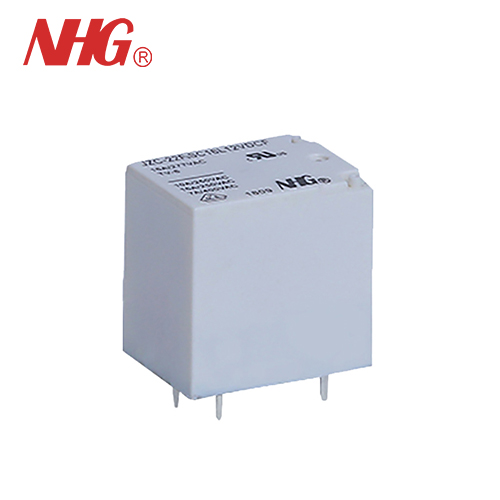

What Are the Key Differences Between a Subminiature High Power Relay and a Standard Miniature Relay
2026-06-16
When designing compact power control systems, engineers often face a critical choice: should they use a Subminiature High Power Relay or a standard miniature relay? While both are small-form-factor electromagnetic switches, their performance characteristics, application scenarios, and internal construction differ significantly. At Huaguan, we have over 15 years of experience manufacturing both types, and we frequently help clients navigate this exact decision. This article breaks down the technical distinctions to help you select the right component for your PCB design.
1. Physical Size & Footprint
The most obvious difference lies in the package dimensions. A standard miniature relay typically occupies 15–25 mm in length and 10–15 mm in width. A Subminiature High Power Relay, however, shrinks that footprint to under 15 mm × 10 mm while still handling currents above 20A. This space-saving capability does not come from reducing copper mass—it results from advanced magnetic circuit optimization and high-purity silver alloy contacts.
| Feature | Subminiature High Power Relay | Standard Miniature Relay |
|---|---|---|
| Typical Length | 12–15 mm | 18–25 mm |
| Typical Width | 8–10 mm | 12–15 mm |
| Height | 5–8 mm | 10–15 mm |
| PCB Area Required | ~120 mm² | ~300 mm² |
2. Current & Voltage Ratings
Despite its smaller size, a Subminiature High Power Relay from Huaguan can switch up to 30A at 277VAC or 30VDC. Standard miniature relays in the same size class usually cap at 10–15A. This high-power density is achieved through improved contact gap control, higher-grade insulation materials, and optimized coil efficiency.
| Parameter | Subminiature High Power Relay | Standard Miniature Relay |
|---|---|---|
| Max Switching Current | 20–30A | 10–15A |
| Max Switching Voltage | 277VAC / 30VDC | 240VAC / 28VDC |
| Coil Power Consumption | 200–360 mW | 400–600 mW |
| Contact Resistance (initial) | ≤ 50 mΩ | ≤ 100 mΩ |
3. Internal Construction & Materials
The internal architecture reveals the engineering trade-offs. A standard miniature relay uses a simple hinged armature and larger bobbin. In contrast, a Subminiature High Power Relay employs a balanced rotary armature or polarized magnetic system, which provides higher contact force per unit volume. Huaguan uses AgSnO₂ (silver-tin oxide) contacts in our subminiature series to resist welding and arc erosion, while standard relays often use AgNi or AgCdO, which are less durable under high inrush loads.
4. Thermal Management & Derating
Heat dissipation is the hidden challenge. A Subminiature High Power Relay has less surface area to radiate heat, so manufacturers must use high-temperature-class coil wires (Class F or H) and low-thermal-resistance encapsulation. Standard miniature relays typically operate at 85°C ambient, while a Subminiature High Power Relay can sustain 105°C ambient without derating. Huaguan tests every unit under 1.5× rated current for 1000 cycles to validate thermal stability.
5. Application Suitability
Choose a standard miniature relay for general-purpose loads—lighting, HVAC controls, vending machines—where space is moderate and current is under 15A. Choose a Subminiature High Power Relay for space-constrained high-power applications: EV on-board chargers, portable battery packs, smart home energy meters, and 48V telecom power distribution. Huaguan supplies our subminiature series to automotive Tier-1 suppliers and renewable energy inverter manufacturers worldwide.
6. Cost & Lifecycle Trade-offs
Standard miniature relays are more cost-effective for low-volume, non-critical loads. A Subminiature High Power Relay commands a 20–35% price premium, but offers 2–3× longer electrical life (100,000 operations vs. 30,000 at rated load). For high-cycle applications like EV contactors or industrial pulse loads, this lifecycle advantage quickly justifies the upfront cost.
Frequently Asked Questions About the Subminiature High Power Relay
Q1: Can a Subminiature High Power Relay safely switch both AC and DC loads with the same rating?
A: No. DC loads are significantly more difficult to interrupt because DC current does not cross zero naturally, leading to sustained arcing. For a Subminiature High Power Relay, the DC switching capacity is typically 30% lower than the AC rating. For example, a relay rated at 30A AC may only be certified for 20A DC at 30VDC. Always consult the manufacturer’s DC derating curve. Huaguan provides separate AC and DC contact ratings on every datasheet, and our engineering team can recommend a specific gap distance (≥1.5 mm) for DC applications requiring >15A.
Q2: How does coil suppression affect the performance of a Subminiature High Power Relay in microcontroller-driven circuits?
A: Coil suppression is critical because a Subminiature High Power Relay has a lower coil inductance (due to fewer turns) compared to larger relays. When de-energized, it generates a flyback voltage spike that can reach 200–400V, potentially damaging driving transistors or MCU I/O pins. We strongly recommend placing a freewheeling diode (1N4004 or Schottky) across the coil for DC drives, or an RC snubber for AC coils. Additionally, Huaguan offers built-in suppression diode options on our subminiature models, reducing external BOM count and PCB trace noise. Without proper suppression, you may observe intermittent resets or shortened contact life from coil ringing.
Q3: Are Subminiature High Power Relays with a sealed construction fully washable after PCB soldering?
A: Yes, but only if they have an epoxy-sealed or plastic-sealed housing rated to IP67 or equivalent. A true Subminiature High Power Relay for automated assembly must withstand immersion cleaning, aqueous washing, or vapor-phase soldering without flux ingress. Standard miniature relays often use a vented design (to equalize internal pressure), which allows cleaning solvents to penetrate and contaminate the contacts. Huaguan offers a fully washable variant with a nitrogen-filled sealed chamber, tested to MIL-STD-202 immersion conditions. Always check the "washable" indicator on the part number—if it is not explicitly sealed, assume it is not washable and use no-clean flux instead.
Summary Comparison Table
| Criterion | Subminiature High Power Relay | Standard Miniature Relay |
|---|---|---|
| Best Application | Space-tight, high-current (>20A) | General-purpose, moderate current |
| Key Advantage | Power density | Lower cost & easier layout |
| Key Limitation | Heat dissipation challenge | Larger footprint |
| Typical Life (electrical) | 100k cycles @ 30A | 30k cycles @ 15A |
| Coil Voltage Options | 3–48V DC | 5–24V DC |
| Sealing Options | Epoxy sealed (washable) | Flux-tight or open type |
| Agency Approvals | UL, TUV, CQC, AEC-Q200 (automotive) | UL, VDE, CQC |
Final Recommendation
Selecting between these two relay families is not about which is "better"—it is about which fits your electrical load, thermal envelope, and board density. For new designs exceeding 20A or with PCB real estate under 200 mm², the Subminiature High Power Relay is the clear engineering choice. Huaguan manufactures over 2 million subminiature units per month, with full traceability and 100% functional testing before shipment.
