What Are the Key Differences Between a Miniature Power Relay For Switching 10A and a General-Purpose Relay
2026-06-10

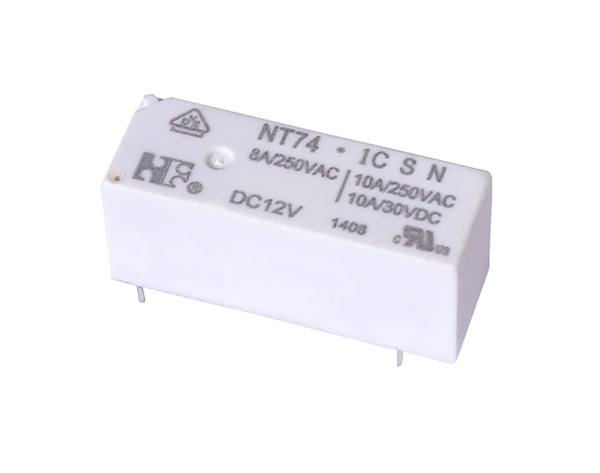

When designing circuit control systems, engineers often confuse a Miniature Power Relay For Switching 10A with a standard general-purpose relay. While both serve switching functions, their construction, durability, and application fit differ significantly. Forward has engineered its Miniature Power Relay For Switching 10A series to bridge compact size with robust power handling. Below is a clear breakdown to guide your selection.
Side-by-Side Comparison
| Feature | Miniature Power Relay For Switching 10A | General-Purpose Relay |
|---|---|---|
| Contact Rating | 10A continuous (resistive load) | 2A – 5A typical |
| Coil Power | 360 – 450 mW (low heat) | 200 – 300 mW (lower holding) |
| Dielectric Strength | 4,000V (safety certified) | 1,500V – 2,500V |
| Typical Applications | HVAC, power supplies, industrial control | Hobby projects, signal switching |
| Life Expectancy | 100,000 operations at 10A | 50,000 ops at lower current |
Key Functional Differences
-
Load Capacity: A Miniature Power Relay For Switching 10A is validated for full 10A inrush and steady-state, while general-purpose relays often derate above 5A.
-
Thermal Management: Forward designs its Miniature Power Relay For Switching 10A with silver-alloy contacts and sealed housings to sustain high heat, unlike basic relays.
-
Safety Approvals: Heavy-duty models include UL, TUV, or VDE; general-purpose types rarely carry such marks.
Miniature Power Relay For Switching 10A – FAQ
Q: Can I use a general-purpose relay instead of a Miniature Power Relay For Switching 10A for motor loads?
A: Not recommended. Motor startup draws 3–6 times rated current. A general-purpose relay will weld contacts within 500 cycles. Forward’s Miniature Power Relay For Switching 10A incorporates anti-welding contact tips and higher contact force to survive inductive kickback, ensuring reliable 10A motor switching.
Q: How does coil voltage variation affect a Miniature Power Relay For Switching 10A versus a general-purpose relay?
A: General-purpose relays typically operate within ±10% of nominal coil voltage. A Miniature Power Relay For Switching 10A from Forward maintains ±15% tolerance, preventing false dropout in unstable grids. For example, at 85% of rated voltage, the miniature relay still pulls in firmly, while a general-purpose relay may chatter and fail.
Q: Which relay lasts longer in high-temperature environments (85°C ambient)?
A: A standard general-purpose relay loses 40% of its electrical life at 85°C. Forward’s Miniature Power Relay For Switching 10A uses Class F insulation (155°C) and a flux-resistant casing, retaining 90% of its 10A switching cycles even after 2,000 hours of heat soak.
Final Recommendation
Selecting the right component prevents field failures. Forward delivers certified Miniature Power Relay For Switching 10A solutions tailored for demanding 10A loads.
Contact us today for samples and technical datasheets to optimize your power switching design.
