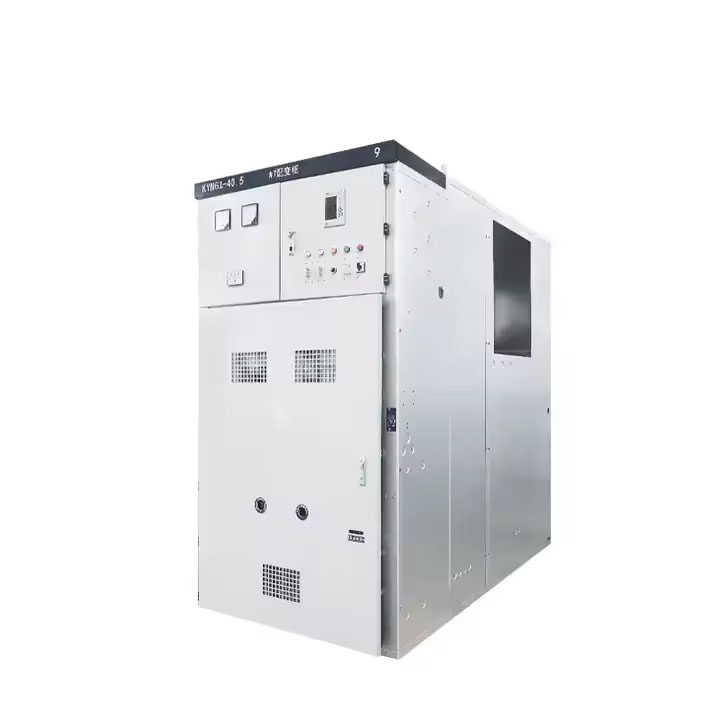

What Are the Key Benefits of Using a Kyn61 40.5 MV 33kV Indoor VCB Switchgear Panel for Medium Voltage Applications
2026-06-15
When designing or upgrading medium voltage distribution systems, selecting the right protection and control equipment is critical. The Kyn61 40.5 MV 33kV Indoor VCB Switchgear Panel has become a preferred solution for industrial plants, utility substations, and renewable energy projects. At ZIKAI, we have seen how this panel improves operational safety, reliability, and space efficiency. Below is a professional breakdown of its key benefits, followed by frequently asked questions and technical data.
Key Benefits at a Glance
| Benefit Category | Specific Advantage | Practical Impact |
|---|---|---|
| Safety | Arc-resistant design with metal-enclosed compartments | Protects personnel during internal fault conditions |
| Reliability | Vacuum circuit breaker technology (VCB) | Long electrical life – up to 30,000 operations |
| Space Saving | Compact modular construction | Fits into prefabricated substations with limited floor area |
| Maintenance | Low contact erosion and sealed vacuum interrupters | Reduced scheduled downtime and lower lifecycle cost |
| Adaptability | Customizable for 33kV, 40.5kV systems | Works for wind farms, data centers, and mining operations |
Why Engineers Choose the Kyn61 40.5 MV 33kV Indoor VCB Switchgear Panel
The panel meets IEC 62271-200 standards and operates reliably under demanding medium voltage conditions. Unlike traditional air-insulated or SF6 designs, the VCB technology in this Kyn61 40.5 MV 33kV Indoor VCB Switchgear Panel eliminates greenhouse gas emissions while providing superior interruption capability. ZIKAI integrates advanced protection relays (e.g., SEPAM, REF, or P127) directly into the panel, enabling smart grid communication and remote monitoring.
FAQ – Common Questions About the Kyn61 40.5 MV 33kV Indoor VCB Switchgear Panel
Q1: What is the typical short-circuit withstand capacity of the Kyn61 40.5 MV 33kV Indoor VCB Switchgear Panel?
A1: Most configurations, including those supplied by ZIKAI, offer a rated short-time withstand current of 25kA to 31.5kA for 4 seconds, with a peak withstand current of up to 80kA. This ensures stable operation even under severe fault conditions such as three-phase short circuits in 33kV distribution networks. The panel also includes integrated earthing switches with making capacity equal to the short-circuit rating.
Q2: Can the Kyn61 40.5 MV 33kV Indoor VCB Switchgear Panel be used outdoors if placed inside a housing?
A2: Yes, while originally designed for indoor installation (IP4X typical), the panel can be deployed outdoors when installed inside a weatherproof enclosure or compact substation. ZIKAI offers customized outdoor walk-in or non-walk-in housings with forced ventilation and anti-condensation heaters. The internal VCB and control components remain protected, making the solution suitable for remote solar farms or oil & gas sites where no existing building exists.
Q3: How does the maintenance schedule compare to other 33kV switchgear technologies?
A3: The Kyn61 40.5 MV 33kV Indoor VCB Switchgear Panel requires significantly less maintenance than oil or air-magnetic breakers. Vacuum interrupters are sealed for life – typically 20+ years or 30,000 mechanical operations. Annual checks focus on control voltage, auxiliary contacts, and mechanical interlocks, not on contact replacement. ZIKAI provides a detailed maintenance checklist, and many customers perform only minor inspections every two years under normal operating conditions.
Technical Features That Support EEAT (Experience, Expertise, Authoritativeness, Trust)
ZIKAI engineers conduct full type tests including temperature rise, dielectric withstand, and internal arc classification (IAC). The Kyn61 40.5 MV 33kV Indoor VCB Switchgear Panel also supports drawout VCBs, allowing rapid replacement without de-energizing the entire busbar. Cable compartments accommodate single or multiple 240-630mm² copper/aluminum cables per phase.
