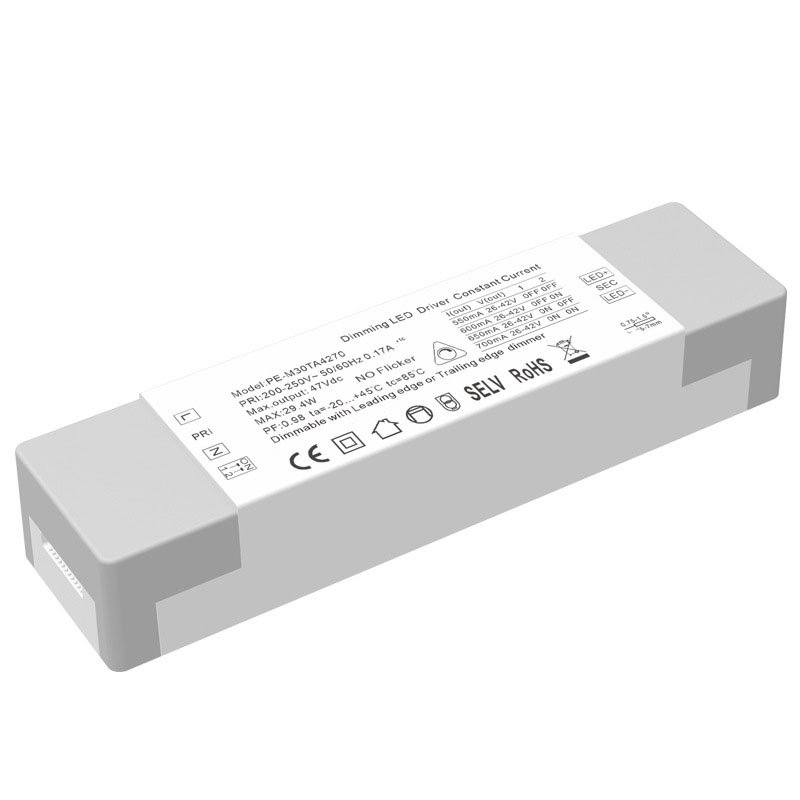

What are the key benefits of using a 30W Constant Current Triac Dimmable LED Driver for retrofit projects
2026-04-14
Retrofit projects present a unique challenge: existing wiring, legacy dimmers, and modern LED loads rarely work in harmony. For installers and facility managers, the 30W Constant Current Triac Dimmable LED Driver from STARWELL solves these incompatibilities at the component level. Unlike standard drivers that flicker or fail under old phase-cut controls, this driver delivers stable, efficient power while preserving the original infrastructure.
Why retrofit projects demand a specialized driver
Legacy systems typically use TRIAC (triode for alternating current) dimmers designed for incandescent bulbs. Modern LEDs require constant current regulation. Without a dedicated interface, the result is poor dimming range, audible noise, and premature driver failure. The table below outlines the core technical advantages.
| Benefit | Technical Impact for Retrofits |
|---|---|
| Direct TRIAC Compatibility | Works with leading-edge and trailing-edge dimmers without rewiring |
| Wide Dimming Range (1–100%) | Eliminates pop-on and drop-out issues common in older buildings |
| High Power Factor (>0.9) | Reduces line loss and allows more drivers per circuit breaker |
| Short Circuit & Overload Protection | Safeguards both driver and LED array during installation errors |
| Flicker-Free Operation (PFC <5%) | Meets stringent commercial lighting standards |
Three operational benefits you will see on site
Benefit 1: Preserved dimming infrastructure
Building owners avoid the cost of replacing wall dimmers. The 30W Constant Current Triac Dimmable LED Driver mimics the electrical behavior of a resistive load, tricking legacy TRIAC dimmers into smooth operation.
Benefit 2: Lower thermal load
Retrofit enclosures often have poor ventilation. With efficiency exceeding 85% at full load, this driver generates minimal heat, extending capacitor life beyond 50,000 hours.
Benefit 3: Simplified inventory
STARWELL designs the driver to accept universal AC input (100–277V). One SKU serves residential, office, and industrial retrofit jobs, reducing stock complexity.
30W Constant Current Triac Dimmable LED Driver FAQ
Q1: Can the 30W Constant Current Triac Dimmable LED Driver work with multiple LED configurations in a single retrofit project
A: Yes, but only within the specified output voltage range. The driver delivers a constant current (e.g., 700mA, 900mA, or 1050mA typical for 30W models). The LED load must have a forward voltage that, when multiplied by the constant current, does not exceed 30W. For retrofit projects with mixed LED strips or modules, STARWELL recommends series wiring to maintain current uniformity. Parallel loads are not advised unless each string has its own balancing resistor, which wastes power. Always verify that the total LED forward voltage falls between the driver’s minimum and maximum rated voltage (usually 20–42V for a 30W model).
Q2: Does the 30W Constant Current Triac Dimmable LED Driver produce audible hum when used with older TRIAC dimmers in residential retrofits
A: It depends on the dimmer’s minimum load specification. Many legacy TRIAC dimmers require a minimum load of 10W to 20W to trigger correctly. A single 30W driver usually meets this requirement, causing no audible hum. However, if the dimmer is rated for 40W minimum and the driver operates at 30W, the dimmer may enter an unstable state producing a 120Hz buzz. STARWELL solves this by integrating an active damping circuit inside the driver. For problem dimmers, adding one incandescent bypass cap (often called a "minimum load cap") across the driver’s input is unnecessary because the STARWELL driver already includes a bleeder circuit. If hum persists, replace the wall dimmer with a modern TRIAC dimmer rated for LED loads down to 5W.
Q3: How does the 30W Constant Current Triac Dimmable LED Driver protect itself when the retrofit junction box exceeds 50°C ambient temperature
A: The driver incorporates multi-tier thermal protection. First, it reduces output current linearly once the internal case temperature reaches 85°C (derating begins). Second, if temperature climbs to 95°C, the driver performs a complete shutdown. Third, after cooling to 75°C, it automatically restarts. For retrofit projects in attics, ceiling voids, or outdoor rated enclosures, STARWELL guarantees full 30W output up to 50°C ambient. Above that, derating follows the curve: 30W at 50°C, 25W at 60°C, 20W at 70°C. Installers should always maintain a 10mm air gap around the driver body. Using thermal paste on the mounting surface is not required because the casing is designed for free convection cooling.
Final recommendation for retrofit success
Choosing the wrong driver leads to callbacks, flickering complaints, and dimmer replacement costs. The 30W Constant Current Triac Dimmable LED Driver from STARWELL delivers documented compatibility, thermal robustness, and true phase-cut dimming without modifying existing wiring.
