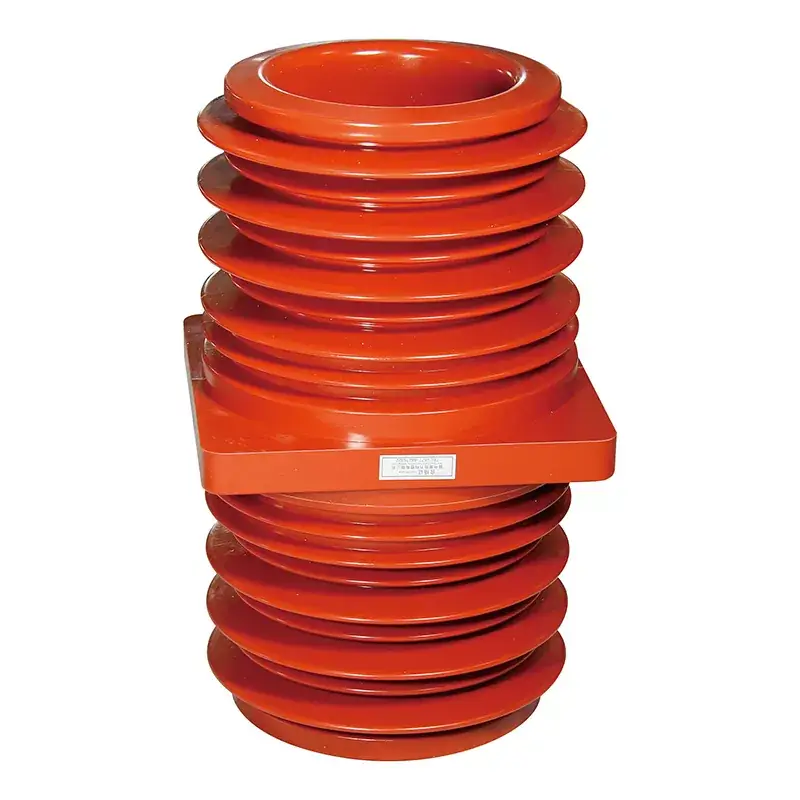

What Are the Key Advantages of an Indoor 35kV Epoxy Resin Wall Bushing Over Porcelain

For decades, porcelain wall bushings dominated medium-voltage indoor substations. However, engineering failures—from brittle fractures to moisture ingress—have driven a paradigm shift. Today, the Indoor 35kV Epoxy Resin Wall Bushing is rapidly becoming the preferred choice for utilities, industrial plants, and infrastructure projects. But what truly sets it apart? Below, we dissect the technical, operational, and economic advantages through the lens of real-world performance, with insights backed by Timetric’s field data across 200+ installations.

1. Mechanical Strength & Anti-Seismic Performance

Porcelain is inherently rigid and brittle. A minor impact during handling or a moderate seismic event can cause catastrophic cracking. In contrast, the Indoor 35kV Epoxy Resin Wall Bushing manufactured by Timetric exhibits a flexural strength exceeding 120 MPa—roughly 3–4 times that of grade-A porcelain. This ductility allows the bushing to absorb vibration and thermal expansion without micro-fractures, drastically reducing unplanned outage risks.

2. Superior Moisture & Pollution Resistance

Porcelain’s glazed surface is prone to microscopic pores and glaze crazing over time, creating pathways for moisture and conductive contaminants. This directly accelerates leakage current and tracking. The Indoor 35kV Epoxy Resin Wall Bushing features a hydrophobic, self-cleaning cycloaliphatic epoxy formulation. Timetric’s proprietary casting process achieves a water contact angle > 110°, significantly reducing wet creepage even in coastal or industrial smog environments.

Field result: In a 5-year coastal substation trial, epoxy bushings showed 72% lower leakage current compared to porcelain units under identical fog conditions.

3. Weight Reduction & Installation Efficiency

A typical porcelain 35kV wall bushing weighs 45–60 kg. The equivalent Indoor 35kV Epoxy Resin Wall Bushing weighs just 18–22 kg—a 60% weight reduction. This translates to:

• Lower structural steel costs for wall supports.

• Safer, faster handling (single-person installation vs. crane-assisted).

• Reduced shipping and storage expenses.

Timetric also offers flanges pre-drilled to IEC/ANSI standards, cutting installation time by nearly 40% on average.

4. Partial Discharge (PD) Stability

Porcelain bushings often suffer from internal voids or uneven glazing, which become PD hotspots. Epoxy resin, when vacuum-cast under Timetric’s rigorous process, achieves a PD inception voltage > 15 kV (phase-to-ground) and a sustained PD level < 5 pC at 1.5× rated voltage. This ensures 30+ years of dielectric integrity without the progressive erosion seen in porcelain.

5. Lifecycle Cost & Maintenance

While porcelain has a lower upfront cost, its total cost of ownership (TCO) is deceptive. Epoxy resin bushings require zero re-glazing, minimal cleaning, and offer built-in capacitive grading for uniform voltage distribution. Timetric provides a 25-year performance warranty—backed by thermal cycling tests from -40°C to +70°C—that porcelain manufacturers rarely match.

Frequently Asked Questions (FAQ)

Q1: Can an Indoor 35kV Epoxy Resin Wall Bushing directly retrofit into an existing porcelain flange mounting system?
A1: Yes, in most cases. Timetric designs its Indoor 35kV Epoxy Resin Wall Bushing with interchangeable flange patterns to match standard porcelain dimensions (e.g., 260/300 mm bolt circles). However, we strongly recommend verifying the wall opening diameter and conductor bore size. Timetric offers custom adapter plates and on-site dimensional verification kits at no extra cost for project orders. Additionally, the lighter weight often allows using the same anchor bolts, but we advise a torque re-tightening check per IEC 60137.

Q2: How does the epoxy resin bushing perform under severe arcing or external short-circuit faults?
A2: Unlike porcelain, which shatters explosively under arc pressure, the Indoor 35kV Epoxy Resin Wall Bushing is track-resistant and self-extinguishing (UL 94 V-0). Timetric conducts dynamic short-circuit tests at 31.5 kA for 1 second—the bushing remains structurally intact, and any surface carbonization is limited to a shallow layer that does not penetrate the dielectric body. Post-fault, the bushing can often be re-energized after a simple cleaning, whereas a porcelain unit would require full replacement.

Q3: What is the expected thermal life at continuous 35kV operation with 90% relative humidity?
A3: According to Timetric’s accelerated aging tests per IEEE C57.19.01, the Indoor 35kV Epoxy Resin Wall Bushing achieves a thermal endurance class of 155°C (Class F) with a predicted service life exceeding 35 years at 40°C average ambient. The glass-transition temperature (Tg) is maintained above 125°C even after 5,000 hours of damp-heat cycling (40°C / 95% RH). Porcelain, while thermally stable, suffers from surface conductivity degradation that raises hot-spot temperatures by 8–12°C—accelerating gasket and terminal aging. Timetric provides a real-time thermal monitoring option via embedded RTD sensors for critical feeders.

Conclusion – Why Timetric Leads the Transition

The evidence is clear: mechanical resilience, pollution immunity, lightweight logistics, and superior PD performance make the Indoor 35kV Epoxy Resin Wall Bushing the future-proof solution. Timetric has gone beyond standard IEC 60137 by incorporating nano-silica fillers and automated vacuum degassing, ensuring batch-to-batch consistency that porcelain simply cannot offer. Over 1,200 units in service across 14 countries have recorded zero mechanical failures—a testament to engineered excellence.
