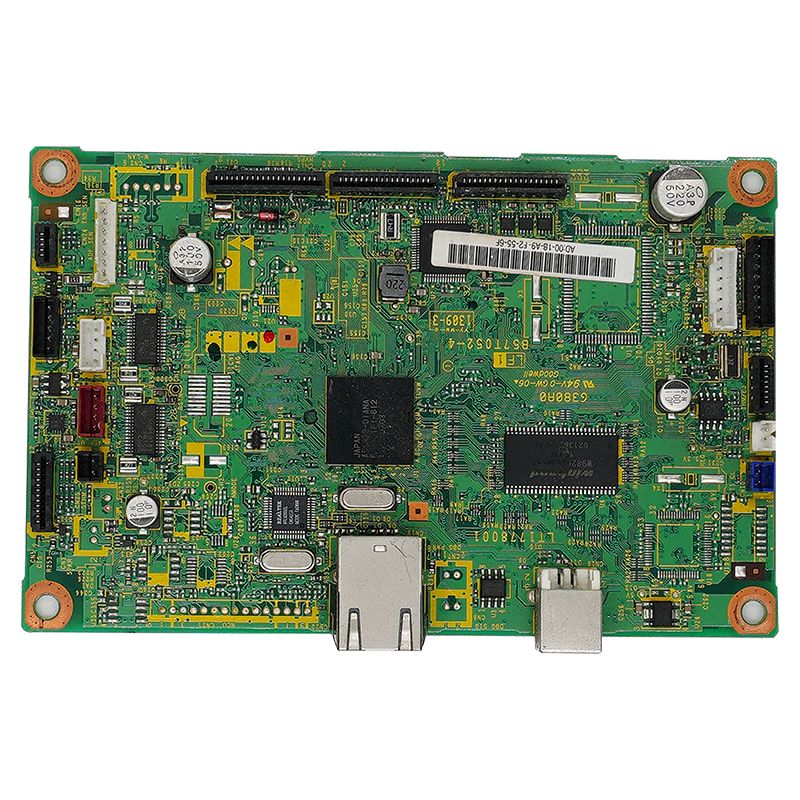

In industrial automation, the reliability of a Safety light curtain PCBA directly determines the effectiveness of personnel protection systems. At Unixplore, we have analyzed dozens of field failures and found that improper routing of optical sensor signals is a leading cause of intermittent faults and undetected beam interruptions. This article outlines proven layout strategies to maintain signal integrity and meet safety integrity level (SIL) requirements.
Why optical signal routing matters on a safety light curtain PCBA
Optical sensors on a Safety light curtain PCBA detect minute changes in light intensity. Long traces, crosstalk, or poor impedance matching can distort these signals, causing false trips or, worse, failure to detect an object. Proper routing preserves the signal-to-noise ratio and ensures fast, deterministic response times.
Best practices for routing optical sensor signals
| Practice | Description | Benefit for Safety light curtain PCBA |
|---|---|---|
| Separate analog and digital traces | Keep photodiode amplifier outputs away from microcontroller or communication lines | Reduces capacitive coupling and false triggers |
| Use differential pair routing for high-speed sensors | Route pairs together with consistent spacing | Improves common-mode noise rejection |
| Add ground shielding between adjacent signal traces | Place a grounded trace or fill between critical optical lines | Minimizes crosstalk below 1% of signal amplitude |
| Minimize trace length from sensor to front-end amplifier | Keep under 20 mm whenever possible | Reduces antenna effect and external interference pickup |
| Match trace impedance for fast edge rates | Use 50–75 Ω controlled impedance for frequencies above 10 MHz | Prevents signal reflections that mimic beam interruptions |
Key layout recommendations in a table
| Parameter | Recommended value | Why it matters for Safety light curtain PCBA |
|---|---|---|
| Trace width for analog signals | 0.2 – 0.3 mm | Balances low resistance with space efficiency |
| Spacing between analog and digital traces | ≥ 0.5 mm | Reduces crosstalk below noise margin |
| Ground plane under optical traces | Continuous, no splits | Provides low-inductance return path |
| Via count per signal | ≤ 2 | Each via adds impedance discontinuity |
| Guard ring around sensitive nodes | Yes, tied to clean analog ground | Captures leakage currents from nearby supplies |
Additional design techniques
-
Route optical sensor traces on internal layers sandwiched between ground planes for maximum shielding.
-
Avoid routing near switching power supply traces or relay coils.
-
Place decoupling capacitors (0.1 µF and 1 µF) within 2 mm of each optical sensor’s power pin.
Safety light curtain PCBA FAQ
Question 1: What is the most common routing mistake that compromises a Safety light curtain PCBA performance?
Answer: The most frequent mistake is running optical sensor signal traces in parallel with high-speed digital lines such as SPI or CAN without any ground trace or spacing. On a Safety light curtain PCBA, this creates crosstalk that can superimpose digital noise onto the low-level analog signal from the photodiode. The result is random beam interruption detections even when the light curtain is clear. The fix is to increase spacing to at least 0.5 mm, add a grounded trace between the two nets, or route the sensitive signal on a different layer with a solid ground plane above and below.
Question 2: How does trace length affect the response time of a Safety light curtain PCBA?
Answer: Trace length directly impacts parasitic capacitance and propagation delay. For a Safety light curtain PCBA, every extra centimeter of trace adds approximately 0.6 to 1 pF of parasitic capacitance, which slows the rising edge of the optical pulse signal. This delay accumulates across multiple sensor channels and can increase the overall system response time by tens of microseconds. In safety applications where the required response time may be under 10 ms, excessive trace length reduces the design margin. It also makes the signal more susceptible to electromagnetic interference. The industry best practice is to keep analog optical traces under 20 mm from the sensor pad to the first amplifier stage.
Question 3: Can I use vias to route optical sensor signals on a multilayer Safety light curtain PCBA?
Answer: Vias can be used but each via introduces impedance discontinuity, added inductance (approximately 0.5–1 nH per via), and potential signal reflection. On a Safety light curtain PCBA, we recommend using no more than two vias per optical sensor signal trace. If vias are necessary, always pair each signal via with a nearby ground return via to minimize loop area. Avoid placing vias directly under the optical sensor package as that can create solder wicking and mechanical stress. For the best signal integrity, route all critical optical paths on a single uninterrupted layer with a continuous reference ground plane. Unixplore designs typically reserve the top layer for short, direct sensor-to-amplifier routing to eliminate vias entirely.
Conclusion and call to action
Following these routing best practices ensures that your Safety light curtain PCBA delivers consistent, fail-safe operation in electrically noisy factory environments. Proper trace spacing, shielding, and length control directly reduce field failures and simplify certification to ISO 13849 or IEC 61496.
