Fiber optic modules are compact but highly important optical components that connect electronic equipment with fiber communication systems. From telecommunications and fiber sensing to data transmission and laser applications, the right module can directly influence transmission quality, system stability, optical performance, and long-term reliability.
What Are Fiber Optic Modules?
Fiber optic modules are integrated optical components designed to connect fiber-optic paths with electronic equipment or other optical systems. In practical terms, they provide the interface needed for optical signals to enter, leave, be amplified, converted, monitored, or otherwise processed within a larger system.
Depending on the application, a fiber optic module may include a laser source, photodetector, optical amplifier, fiber coupling assembly, electrical interface, monitoring circuit, or temperature-control components. The exact architecture depends on the intended wavelength, output power, fiber type, transmission requirements, and operating environment.
This is why the phrase “fiber optic module” does not describe only one product. It represents a broad category of optical hardware used in communication, sensing, industrial equipment, research systems, and specialized photonic applications.
Provides a controlled connection between the module and an optical fiber, helping maintain efficient optical coupling.
Depending on the design, the module can transmit, receive, amplify, stabilize, or condition optical signals.
A compact module simplifies integration into communication equipment, sensing systems, test platforms, and other optical devices.
How Do Fiber Optic Modules Work?
The working principle depends on the type of module, but most systems follow a simple optical signal path. An electrical or optical input is processed by the module, converted or conditioned when required, and then coupled into an optical fiber or delivered to another optical component.
1. Electrical-to-Optical Conversion
In optical communication applications, a transmitter can receive an electrical data signal and use a laser or other optical source to generate a modulated optical signal. The resulting light is coupled into the fiber for transmission.
2. Optical-to-Electrical Conversion
Receiver-oriented modules perform the reverse process. Incoming light is detected by a photodetector and converted into an electrical signal that can be processed by downstream electronics.
3. Optical Amplification
Fiber amplifier modules work differently. Instead of simply converting the signal, they increase optical power to compensate for transmission losses or provide sufficient output power for a particular application.
4. Fiber Coupling and Stabilization
Precision coupling is especially important when laser sources are involved. Small alignment errors can reduce coupling efficiency and affect output stability. For this reason, packaging, fiber type, wavelength, thermal management, and optical alignment all deserve attention during module selection.
What Are the Main Types of Fiber Optic Modules?
Different applications require different optical functions. Understanding the major categories makes it easier to narrow down the right solution.
| Module Type | Main Function | Typical Applications | Important Considerations |
|---|---|---|---|
| Fiber Transceiver Modules | Transmit and receive optical signals | Data communication, telecom, networking | Data rate, wavelength, fiber type, reach, connector |
| Fiber Amplifier Modules | Increase optical signal power | Telecom, sensing, optical links | Gain, output power, noise, wavelength, stability |
| Fiber Laser Modules | Provide a controlled laser source | Fiber lasers, sensing, research, communications | Wavelength, power, linewidth, fiber type, stability |
| Pump Laser Modules | Provide optical pump energy | EDFA, Raman amplification, fiber lasers | Pump wavelength, power, coupling efficiency, reliability |
| Specialized Optical Modules | Perform application-specific optical functions | Scientific instruments, sensing, industrial systems | Customized specifications and environmental conditions |

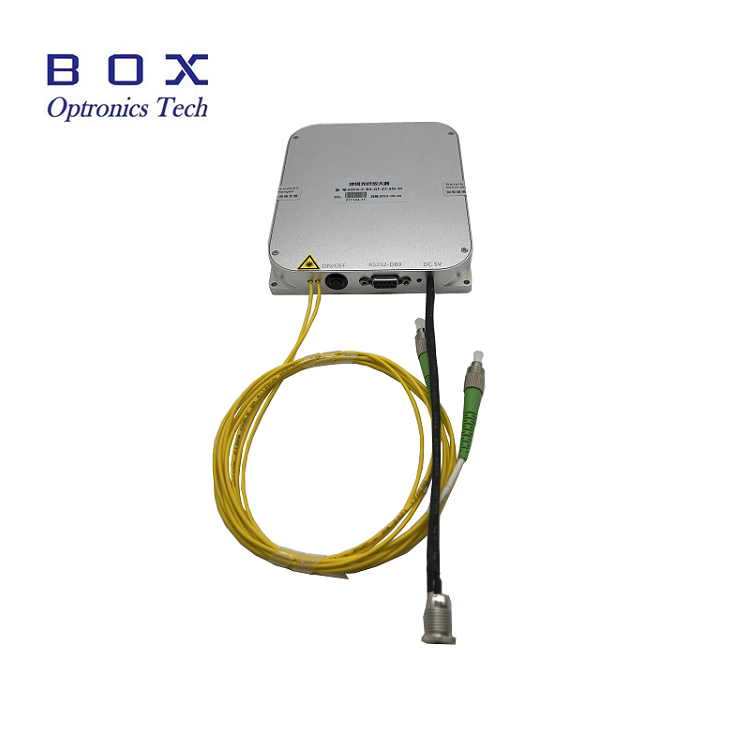

Fiber Amplifier Modules
Fiber amplifier modules are designed to increase optical power without first converting the signal into an electrical form. EDFA and Raman amplifier solutions are common examples. Depending on the design, they can be used for telecommunications, optical sensing, distributed sensing, and other demanding systems.
Fiber Laser Modules
Fiber laser modules provide a controlled optical source for applications that require specific wavelengths, output powers, spectral characteristics, or fiber configurations. Available wavelength ranges can cover applications around 976 nm, 1064 nm, 1310 nm, 1550 nm, C-band, and L-band, depending on the product architecture.
Communication-Oriented Modules
Communication modules are generally selected according to factors such as transmission speed, optical reach, fiber type, wavelength, form factor, connector configuration, and equipment compatibility. Common networking form factors include SFP, SFP+, SFP28, QSFP+, QSFP28, and higher-density designs.
Which Specifications Matter Most?
One of the most common purchasing mistakes is focusing on only one specification. For example, selecting a module because the wavelength appears correct may still result in an unsuitable solution if the fiber type, output power, interface, or operating temperature does not match the system.
Wavelength
Wavelength affects fiber compatibility, transmission characteristics, optical loss, detector response, and compatibility with other components. Common optical communication wavelengths include 850 nm, 1310 nm, and 1550 nm, while specialized laser and sensing systems may use many other wavelengths.
Output Power
Output power should be evaluated according to the system's optical budget and application requirements. Excessive power can create safety or component-stress concerns, while insufficient power may cause poor link performance or inadequate sensing range.
Fiber Type
Single-mode fiber and multimode fiber have different transmission characteristics and should not be treated as interchangeable. The selected module must match the fiber architecture and intended transmission distance.
Operating Temperature
Temperature can influence optical output, wavelength stability, efficiency, and lifetime. Equipment installed in industrial environments may require a wider temperature range and stronger thermal management than equipment operating in a controlled laboratory.
Package and Interface
Mechanical dimensions and electrical interfaces determine whether the module can be integrated into the host equipment. A technically excellent optical module is still unsuitable if it cannot be mechanically or electrically integrated into the target system.
| Parameter | Why It Matters | Questions to Confirm |
|---|---|---|
| Wavelength | Determines optical compatibility and transmission characteristics | What wavelength or wavelength range does the system require? |
| Optical Power | Influences link budget and application performance | What minimum and maximum power are acceptable? |
| Fiber Type | Affects coupling and transmission distance | Is the system using SMF, MMF, PM fiber, or another fiber? |
| Bandwidth / Data Rate | Determines communication capacity | What actual data rate must the module support? |
| Temperature | Affects stability and reliability | What is the real operating environment? |
| Package | Determines physical integration | What mounting space and interface are available? |
Where Are Fiber Optic Modules Used?
Fiber optic modules are used across a wide range of industries because optical fiber provides high bandwidth, low electromagnetic interference, and the ability to transmit signals over significant distances.
Telecommunications
Optical modules form an important part of modern telecom infrastructure. They can support signal transmission, amplification, wavelength management, and long-distance optical links.
Data Centers and High-Speed Networks
Modern data centers depend on optical interconnects to move large amounts of data between servers, switches, storage systems, and network infrastructure. Module selection must take into account transmission rate, fiber type, reach, connector configuration, and equipment compatibility.
Fiber Optic Sensing
Fiber sensing systems can use optical modules as light sources, amplifiers, receivers, or signal-conditioning components. They can be found in applications such as distributed sensing, acoustic sensing, hydrophone systems, and industrial monitoring.
Fiber Laser Systems
Laser modules can serve as seed sources, pump sources, or other optical building blocks in fiber laser systems. Stability becomes especially important where wavelength precision, power consistency, or narrow spectral linewidth is required.
Research and Laboratory Equipment
Researchers often need specialized wavelengths, fiber types, output powers, and packaging configurations that are not available from standard catalog products. Modular optical solutions can simplify integration and shorten development cycles.
How Can You Select the Right Fiber Optic Module?
The best selection process starts with the system rather than the product name. Before requesting a quotation, define the complete optical and mechanical requirements.
- Define the application: Identify whether the module is intended for communication, amplification, sensing, laser generation, research, or another purpose.
- Confirm the wavelength: Specify the required center wavelength, wavelength range, or wavelength tolerance.
- Determine the required optical power: Establish input, output, minimum, and maximum power requirements.
- Identify the fiber: Specify single-mode, multimode, polarization-maintaining, or another fiber configuration.
- Check the physical package: Confirm available installation space and mounting requirements.
- Review thermal conditions: Consider both normal operating temperature and possible temperature extremes.
- Check control requirements: Determine whether TEC control, monitoring, current control, or other electronics are needed.
- Consider future production: For commercial products, confirm consistency, testing, customization capability, and expected supply requirements.
Do Not Ignore the Optical Budget
For communication systems, the optical budget is one of the most useful ways to determine whether a module is appropriate. The calculation should account for transmitter power, fiber attenuation, connector losses, splice losses, passive components, system margins, and receiver sensitivity.
Think Beyond the Prototype
A module that works perfectly in a laboratory prototype may not automatically be suitable for volume production. Production projects require attention to repeatability, supply continuity, documentation, quality control, packaging, and after-sales support.
What Problems Can the Right Module Solve?
Choosing the correct fiber optic module is not simply about obtaining an optical component. It is about reducing integration problems before they reach the final system.
Appropriate thermal management, optical design, and component matching can help improve output consistency.
Correct fiber selection and precision packaging can improve coupling efficiency and reduce avoidable optical losses.
Confirming electrical, mechanical, optical, and environmental requirements early can prevent redesign later.
Other common issues include insufficient transmission distance, unexpected attenuation, excessive temperature sensitivity, incompatible interfaces, inadequate optical power, and difficulty maintaining consistent performance across production batches.
A detailed technical discussion before purchasing can therefore save more time and cost than simply comparing unit prices.
How Can Fiber Optic Module Performance Be Maintained?
Even a well-designed module can experience performance problems if it is installed or handled incorrectly. Optical systems are particularly sensitive to contamination, excessive mechanical stress, poor thermal conditions, and incorrect connections.
Keep Optical Interfaces Clean
Dust and contamination on fiber connectors can introduce significant optical loss. Use appropriate inspection and cleaning procedures before connecting optical interfaces.
Protect the Fiber
Avoid excessive bending, twisting, pulling, or crushing. Respect the applicable bend radius and mechanical limitations of the fiber and cable assembly.
Manage Heat Properly
High-power optical modules may generate substantial heat. Adequate heat dissipation and suitable thermal interfaces help prevent temperature-related performance degradation.
Verify Specifications Before Power-Up
Confirm the module's voltage, current, optical input, optical output, connector, and control requirements before connecting it to the system. This simple step can prevent avoidable component damage.
How Can Box Optronics Support Optical Projects?
Box Optronics provides fiber optic modules, fiber coupled lasers, laser components, and customized optical product solutions. Its product portfolio covers applications related to optical fiber communications and optical fiber sensing, with solutions including fiber amplifier modules and fiber laser modules.
For projects that require more than a standard off-the-shelf component, customization can be particularly valuable. Box Optronics states that customized fiber optic modules are available, allowing customers to work around application-specific requirements rather than forcing an existing system to fit a generic module.
Its fiber laser module range includes options around 976 nm, 1064 nm, 1310 nm, 1550 nm, C-band, and L-band wavelengths, with applications including fiber laser pumping, EDFA, Raman amplification, optical sensing, coherent optical communication, and DWDM systems.
Why Customized Specifications Can Matter
Every optical system has its own combination of requirements. A project may need a particular wavelength, fiber type, output power, package, connector, control method, or environmental specification. When these requirements are defined early, the module can be developed around the actual system architecture.
| Project Requirement | Information to Prepare | Why It Helps |
|---|---|---|
| Optical Source | Wavelength, power, linewidth, fiber type | Helps determine the appropriate laser architecture |
| Amplifier | Input power, output power, gain, operating band | Helps match amplification performance to the optical link |
| Sensing | Wavelength, sensing method, required stability | Helps optimize the module for measurement requirements |
| Production Equipment | Package dimensions, interface, quantity, environment | Helps simplify mechanical and production integration |
Box Optronics also publishes dedicated product information for fiber optic modules and provides inquiry support for fiber optic modules, fiber coupled lasers, laser components, and customized optical solutions.
Frequently Asked Questions About Fiber Optic Modules
1. What is the basic function of a fiber optic module?
A fiber optic module provides an interface between an optical fiber and an electronic or optical system. Depending on its design, it can transmit, receive, amplify, generate, stabilize, or otherwise process optical signals.
2. Are fiber optic modules and optical transceivers the same thing?
Not always. An optical transceiver is a specific type of optical module that generally combines transmitting and receiving functions. Fiber optic modules are a broader category that can include transceivers, amplifier modules, laser modules, pump modules, and other specialized optical assemblies.
3. What wavelengths are commonly used in fiber optic modules?
Common communication wavelengths include 850 nm, 1310 nm, and 1550 nm. Specialized fiber laser, sensing, and amplification applications may use other wavelengths such as 976 nm, 1064 nm, C-band, or L-band, depending on the system.
4. What is the difference between single-mode and multimode fiber?
Single-mode fiber is generally intended for longer-distance and higher-capacity optical transmission, while multimode fiber is commonly used for shorter-distance applications. The fiber type must match the optical module and the overall system design.
5. Can fiber optic modules be customized?
Yes. Depending on the supplier and application, customization may include wavelength, optical power, fiber type, package, connector, control configuration, and other specifications. Customized solutions can be useful when standard products cannot satisfy system requirements.
6. How should I choose a fiber optic module for a new project?
Start by defining the application, wavelength, optical power, fiber type, transmission distance, data rate where applicable, package dimensions, operating temperature, interface, and control requirements. Providing these details to the supplier allows the technical team to recommend a more suitable configuration.
7. What information should I provide when requesting a quotation?
Ideally, provide the target application, wavelength, input and output power, fiber type, package requirements, connector requirements, operating environment, quantity, and any existing equipment specifications. A drawing or preliminary technical specification can make the evaluation even more efficient.
8. Why is optical module stability important?
Variations in optical power, wavelength, temperature, or coupling efficiency can affect system performance. Stable modules are particularly important in communication, sensing, amplification, measurement, and precision laser applications.
Final Thoughts
Fiber optic modules may be compact, but their influence on an optical system can be substantial. The right module needs to match much more than a single wavelength or power value. Fiber compatibility, optical performance, package design, thermal conditions, interfaces, reliability, and application requirements all need to work together.
For communication systems, the correct module can help establish a dependable optical link. For fiber sensing and laser applications, the right combination of wavelength, power, stability, and fiber configuration can make integration much easier. For customized equipment, working with an experienced optical supplier can also reduce development risks and unnecessary redesign.
If your project requires standard or customized fiber optic modules, fiber amplifier modules, fiber laser modules, or related optical components, Box Optronics can provide product information and technical support based on your application requirements.
