Vacuum Circuit Breaker Maintenance and Troubleshooting Guide
2025-08-15
Introduction to Vacuum Circuit Breaker Care
Vacuum circuit breakers are critical components in medium-voltage power systems, offering reliable interruption and long service life. This guide from SanGao Electric covers essential maintenance procedures, troubleshooting techniques, and technical specifications for optimal performance of your vacuum circuit breaker equipment. We'll examine proper inspection methods, common failure modes, and our product's advanced features to ensure your electrical systems remain protected.

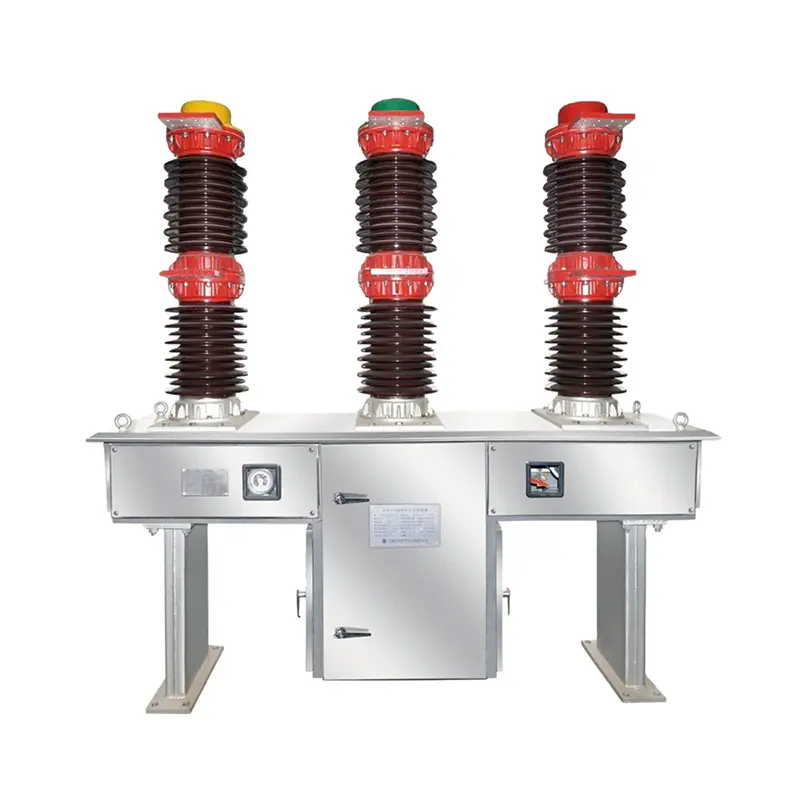

SanGao Vacuum Circuit Breaker Product Specifications
Technical Parameters
| Model | Voltage Rating | Current Rating | Breaking Capacity | Mechanical Life |
|---|---|---|---|---|
| SG-VCB12 | 12kV | 630-3150A | 25-40kA | 30,000 ops |
| SG-VCB24 | 24kV | 1250-4000A | 25-50kA | 20,000 ops |
| SG-VCB36 | 36kV | 1600-5000A | 31.5-63kA | 15,000 ops |
Key Components & Materials
✔ Vacuum interrupters: Ceramic enclosure, oxygen-free copper contacts
✔ Operating mechanism: Spring-charged motor mechanism
✔ Insulation: Epoxy-impregnated fiberglass
✔ Monitoring: Built-in contact wear indicators
Routine Maintenance Procedures
Inspection Checklist
| Component | Check Frequency | Inspection Method |
|---|---|---|
| Vacuum bottle | Annual | Hi-pot test (42kV) |
| Contact erosion | 5,000 ops | Wear indicator scale |
| Mechanism lubrication | 6 months | Grease application |
| Insulation resistance | Annual | 5kV megger test |
| Secondary wiring | Annual | Continuity check |
Critical Maintenance Tasks
-
Contact resistance measurement (should be <50μΩ)
-
Mechanical operation timing test (open/close within 50ms)
-
Dielectric withstand test (per IEEE C37.04)
-
Contact travel measurement (compare to factory specs)
Troubleshooting Common Issues
Frequent Problems & Solutions
| Symptom | Possible Cause | Corrective Action |
|---|---|---|
| Failure to close | Low control voltage | Verify 110-125VDC supply |
| Excessive contact wear | High arcing current | Check for load imbalances |
| Dielectric failure | Moisture ingress | Replace desiccant, reseal |
| Mechanism jamming | Worn linkages | Replace worn components |
| High resistance | Oxidized contacts | Clean or replace contacts |
Advanced Diagnostics
✔ Partial discharge testing for early insulation failure detection
✔ Thermal imaging during load conditions
✔ Dynamic resistance measurement (DRM) testing
✔ X-ray inspection of vacuum interrupters
Why Choose SanGao Vacuum Circuit Breakers?
✔ Ultra-high vacuum (<10⁻⁶ torr) interrupters
✔ Low maintenance sealed-for-life design
✔ Integrated condition monitoring options
✔ 5-year performance warranty
✔ Global certifications (IEC, ANSI, GB)
Contact Our Protection Specialists:
📧 Email: [email protected]
With 25 years in switchgear manufacturing, I personally guarantee SanGao vacuum circuit breakers deliver reliable protection when properly maintained. Our engineering team provides technical support for all your maintenance needs.
