The basic function and structure of ACDC Constant Current Chip

An ACDC Constant Current Chip is an integrated circuit (IC) designed to convert alternating current (AC) to direct current (DC) and maintain a constant output current, typically for driving LEDs. Here's a breakdown of its basic function and structure:

Basic Function:

AC to DC Conversion:

It takes an AC input (typically from the mains) and converts it to DC using internal or external rectifiers and filtering circuits.

Constant Current Regulation:

The chip maintains a steady current to the load (usually LEDs), regardless of changes in input voltage or load characteristics.

This prevents LEDs from being overdriven or underdriven, which ensures consistent brightness and long lifespan.

Power Factor Correction (Optional):

Some chips include PFC circuits to improve the power factor, especially in high-efficiency designs.

Protection Features:

Most chips include over-voltage, over-temperature, and short-circuit protection to ensure reliability and safety.

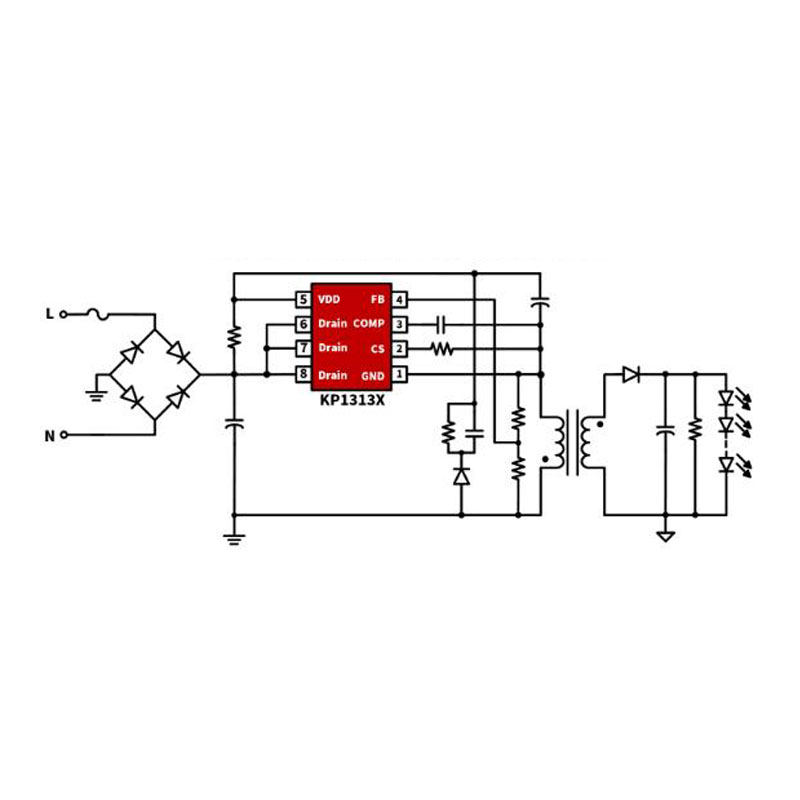

Basic Structure:

The internal structure usually includes these key blocks:

Input Rectifier & Filter:

Converts AC to pulsating DC and smooths it.

Often uses a bridge rectifier and a filter capacitor.

High-Voltage Startup Circuit:

Allows the chip to power up directly from high-voltage AC without external components.

Current Sense Circuit:

Monitors current through a sense resistor or similar method.

Feedback is used to adjust the output to maintain a constant current.

Error Amplifier & Control Logic:

Compares sensed current with a reference.

Regulates switching operation to maintain target current.

Switching Regulator (Buck, Boost, or Flyback):

Converts the DC voltage to the level needed to maintain constant current.

The topology (buck, boost, flyback) depends on application and power level.

Output Driver:

Drives the external transistor (or internal one if integrated) to control energy delivery to the load.
