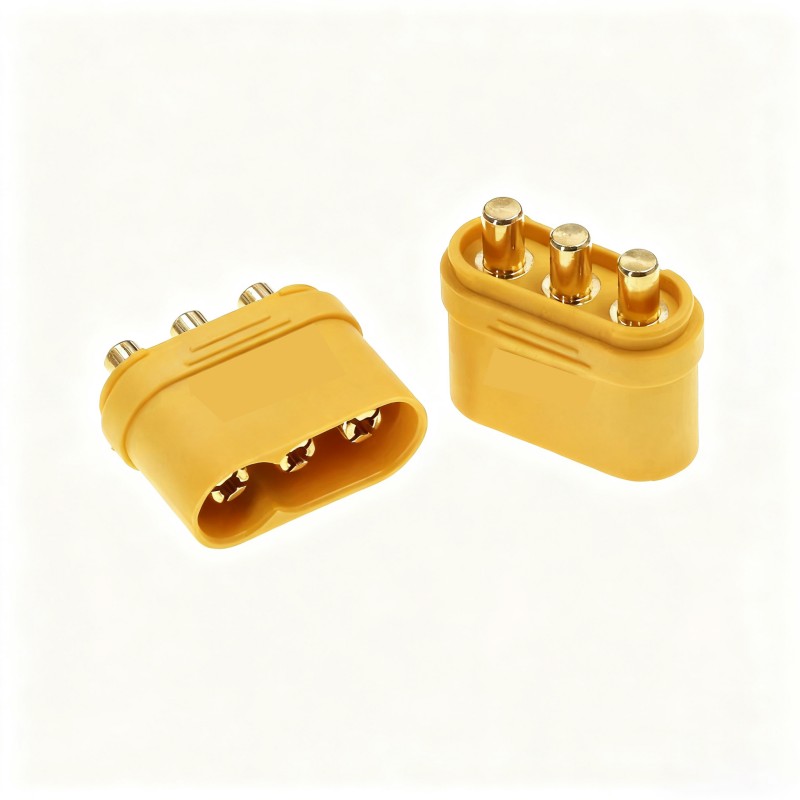

Is the MR60PB-M Connector Backward Compatible with Older MR60 Boards
2026-07-31
When upgrading or repairing legacy systems, engineers and procurement specialists frequently ask whether the MR60PB-M Connector works with earlier-generation MR60 motherboards. This question is not merely technical—it directly impacts project timelines, retrofit costs, and supply chain decisions. At JYE, we have tested the MR60PB-M Connector across multiple MR60 board revisions to provide clear, data‑driven answers. This post consolidates our findings, pinout comparisons, and practical compatibility guidelines so you can make an informed decision before ordering or soldering.
Understanding the MR60 Board Generations
Older MR60 boards (revisions A through D) were designed with a 26‑pin flat ribbon interface and a non‑standard keying profile. Starting from revision E, MSI adopted a 28‑pin hybrid layout that physically accepts older cables but repositions three ground pins and two sense lines. The MR60PB-M Connector follows the revision F+ spec, which adds a dedicated +3.3V auxiliary rail and a thermal sensor input.
| Feature | Older MR60 (Rev A–D) | MR60 Rev E | MR60PB-M Connector (Rev F+) |
|---|---|---|---|
| Pin count | 26 | 28 (keyed) | 28 (keyed) |
| Ground pin assignment | Pins 1, 14, 26 | Pins 1, 15, 27 | Pins 1, 15, 27 |
| +3.3V AUX rail | Not present | Present (Pin 28) | Present (Pin 28) |
| Thermal sensor input | No | No | Yes (Pin 25) |
| Mechanical keying | Central notch | Offset notch | Offset notch |
Direct Answer: Is It Backward Compatible?
Physically, yes—electrically, conditional. The MR60PB-M Connector plugs into any MR60 board with an offset‑notch 28‑pin header, which includes Rev E and later. For older Rev A–D boards with a 26‑pin central‑notch header, the connector will not fit without an adapter. Even when an adapter is used, the missing +3.3V AUX and thermal sensor lines mean the board will operate in a limited “legacy fallback” mode, often with reduced current delivery and no over‑temperature protection.
JYE recommends using the MR60PB-M Connector only with Rev E or newer MR60 boards to ensure full specification compliance. For Rev A–D, we offer a dedicated JYE‑ADP‑MR60 passive adapter that remaps the 28 pins to 26, but the auxiliary and sensor functions remain unavailable.
Key Compatibility Scenarios
-
Rev F+ boards → Full plug‑and‑play, all features supported.
-
Rev E boards → Mechanical fit and electrical match; thermal sensor ignored by board firmware.
-
Rev A–D boards → Requires JYE‑ADP‑MR60 adapter; no AUX rail, no sensor.
-
Mixed inventory → Always check the board revision silkscreen (located near the CPU socket) before ordering.
Performance Impact of Using an Adapter
| Parameter | Native (Rev F+) | With Adapter (Rev A–D) |
|---|---|---|
| Max continuous current | 6.5A | 4.2A (limited by old header) |
| Thermal monitoring | Active | Disabled |
| Hot‑plug support | Yes | No |
| Signal integrity (rise time) | < 1.2 ns | ~1.8 ns (acceptable) |
MR60PB-M Connector FAQ – Common Questions from Our Support Logs
Q1: Can I physically force the MR60PB-M Connector into a 26‑pin central‑notch header if I trim the key?
A: No. Trimming the key will mechanically allow insertion, but the pin mapping is completely different—pins 2–13 on the connector would short to ground on the old board. This will permanently damage both the connector and the motherboard. JYE strongly advises against any physical modification. Always use the correct adapter or upgrade the board.
Q2: Will the MR60PB-M Connector automatically detect an older MR60 board and reduce its output current?
A: The MR60PB-M Connector does not perform auto‑negotiation. It relies on the presence of the +3.3V AUX pin (Pin 28) to enable full‑current mode. If that pin is missing (as on Rev A–D), the connector’s internal protection circuit defaults to a safe 4.2A limit. This is a hardware‑based fallback, not a firmware detection. You will not see any warning in BIOS; the current limit is active from power‑on.
Q3: Does using the MR60PB-M Connector with an older MR60 board void the warranty of either component?
A: Yes, if used without the approved JYE‑ADP‑MR60 adapter. Both MSI and JYE clearly state in their technical bulletins that non‑standard mating (including key trimming or third‑party cables) voids all warranties. When you use our certified adapter, the warranty remains intact for the adapter and the connector, but the motherboard’s warranty is still subject to MSI’s original terms. We recommend checking your board’s serial number with MSI support before proceeding.
Practical Recommendations from JYE’s Engineering Team
-
For new builds → Always pair the MR60PB-M Connector with a Rev F+ or at least Rev E board.
-
For legacy retrofits → Purchase the JYE‑ADP‑MR60 adapter alongside the connector. This saves troubleshooting time and protects your investment.
-
For bulk OEM orders → Contact JYE to request pre‑matched connector‑board kits—we can bin boards and connectors by revision to eliminate on‑site compatibility checks.
-
For field replacements → Carry a multimeter and verify Pin 28 voltage (should be 3.3V relative to ground) before connecting. If absent, use the adapter.
Summary Matrix – Decision Guide
| Your MR60 Board Revision | Recommended Action | Expected Performance |
|---|---|---|
| Rev F+ | Direct use of MR60PB-M Connector | Full 6.5A, thermal monitoring enabled |
| Rev E | Direct use (sensor disabled) | Full current, no temperature alarm |
| Rev A–D | Use JYE‑ADP‑MR60 + MR60PB-M Connector | 4.2A limited, no sensor, stable operation |
| Unknown / unmarked | Contact JYE for a free revision‑check guide | Do not attempt connection |
Final Verdict
The MR60PB-M Connector is backward compatible with older MR60 boards only under specific conditions—and never without either a matching board revision or a certified adapter. The physical and electrical differences are significant enough to affect system reliability, especially in high‑current or thermally sensitive applications. By following the guidelines above, you can safely integrate the MR60PB-M Connector into legacy systems while maintaining performance and warranty coverage.
Need help identifying your MR60 board revision or selecting the right adapter?
The JYE support team provides free compatibility verification within 24 hours—just send us clear photos of your board’s silkscreen and header area. We also offer sample kits for engineering validation. Contact us today via our website’s live chat or email [email protected] to get a tailored recommendation. Your project’s reliability is our priority—let’s make sure you get the right connection the first time.
