Is the GE IC694TBS032 Compatible With IC694 Series I/O Modules in the RX3i Platform
2026-09-14
When engineers and maintenance teams build or upgrade a PACSystems RX3i control system, one of the most common questions they raise is whether the GE IC694TBS032 terminal block can be paired with IC694 Series I/O modules. At Xin Yuan, we supply, test, and support thousands of GE Fanuc and Emerson legacy components every year, and this question comes up constantly. The short answer is yes — but the compatibility depends on the specific module type, the terminal block's wiring configuration, and how the assembly is mounted. This guide breaks down the technical details so you can specify, install, and replace the GE IC694TBS032 with confidence.
What the GE IC694TBS032 Actually Is

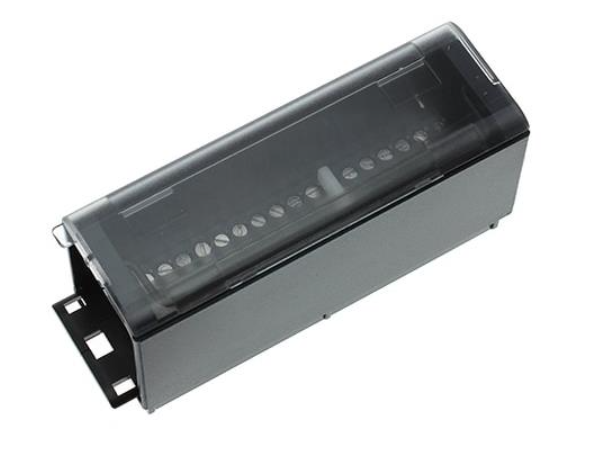

The GE IC694TBS032 is a 32-point terminal block assembly designed for the RX3i and related IC694 I/O families. It provides the field wiring interface between external devices and the I/O module itself. Rather than landing wires directly on the module, technicians terminate conductors on the terminal block, which then mates with the module's front connector.
Key characteristics of the GE IC694TBS032:
-
32 termination points with screw-type connections
-
Designed for high-density discrete and analog I/O applications
-
Compatible with the RX3i backplane architecture
-
RoHS-relevant construction for modern industrial environments
-
Commonly paired with 32-point IC694 Series I/O modules
Compatibility Matrix: GE IC694TBS032 vs. IC694 Series I/O Modules
The table below summarizes how the GE IC694TBS032 fits into the RX3i Platform across common module categories.
| IC694 Series I/O Module Type | Typical Model Example | GE IC694TBS032 Compatibility | Notes |
|---|---|---|---|
| 32-point discrete input | IC694MDL654 | Fully compatible | Matches 32-point terminal count |
| 32-point discrete output | IC694MDL753 | Fully compatible | Verify output voltage rating |
| 16-point discrete I/O | IC694MDL645 | Not recommended | Terminal count mismatch |
| Analog input (high density) | IC694ALG392 | Compatible with correct block | Confirm shielded wiring practice |
| Analog output | IC694ALG223 | Compatible with correct block | Grounding scheme matters |
| Mixed discrete I/O | IC694MDL660 | Case-by-case | Check module datasheet |
At Xin Yuan, our technical team verifies every GE IC694TBS032 against the customer's exact module list before shipment, which eliminates the guesswork that causes downtime during commissioning.
Why Compatibility Matters in the RX3i Platform
The RX3i Platform relies on consistent mechanical and electrical interfaces. A mismatched terminal block can cause:
-
Intermittent signal faults due to poor contact pressure
-
Incorrect wiring maps, leading to swapped inputs or outputs
-
Mechanical stress on the module's connector pins
-
Difficult diagnostics, because faults appear at the field device rather than the block
Using the correct GE IC694TBS032 with the right IC694 Series I/O modules keeps wiring diagrams accurate, reduces troubleshooting time, and preserves the module warranty.
Best Practices When Pairing These Components
-
Always cross-reference the module's terminal assignment diagram with the GE IC694TBS032 labeling.
-
Torque terminal screws to the manufacturer's specification to prevent loose connections.
-
Use ferrules on stranded wire for a cleaner, more reliable termination.
-
Label each conductor before landing it on the block.
-
Keep spare GE IC694TBS032 units on site, since legacy GE Fanuc parts can have long lead times.
Xin Yuan maintains inventory of both new and refurbished GE IC694TBS032 assemblies, each function-tested before dispatch.
GE IC694TBS032 FAQ Common Questions
Q: Can the GE IC694TBS032 be used with any 32-point IC694 module in the RX3i Platform?
A: In most cases, yes. The GE IC694TBS032 is engineered for 32-point IC694 Series I/O modules, and it matches the terminal count and pitch required by those modules. However, you should still confirm the specific module's wiring diagram, because analog and specialty modules may require shielded terminations or a different grounding arrangement even when the physical fit is correct.
Q: Is the GE IC694TBS032 compatible with older GE Fanuc 90-30 series modules?
A: No. The GE IC694TBS032 is designed for the IC694 and RX3i families, not the older 90-30 platform. While some legacy GE Fanuc products share naming conventions, the connector geometry and terminal assignments differ. Attempting to force compatibility can damage both the block and the module, so always verify the platform before ordering from Xin Yuan.
Q: How do I know if my GE IC694TBS032 is faulty rather than the I/O module?
A: Start by checking for visible damage, discolored terminals, or loose screw clamps on the GE IC694TBS032. Then measure continuity from the field wire to the module pin. If signals are intermittent only at certain terminals, the block is the likely culprit. If all channels on the module fail simultaneously, the IC694 Series I/O module or backplane is more suspect. Xin Yuan offers testing guidance and replacement units to speed up fault isolation.
Contact Us
Whether you need a single GE IC694TBS032, a full set of IC694 Series I/O modules, or engineering support for your RX3i Platform upgrade, Xin Yuan is ready to help. Contact our team today for pricing, availability, and technical verification — and keep your automation system running without unnecessary downtime.
