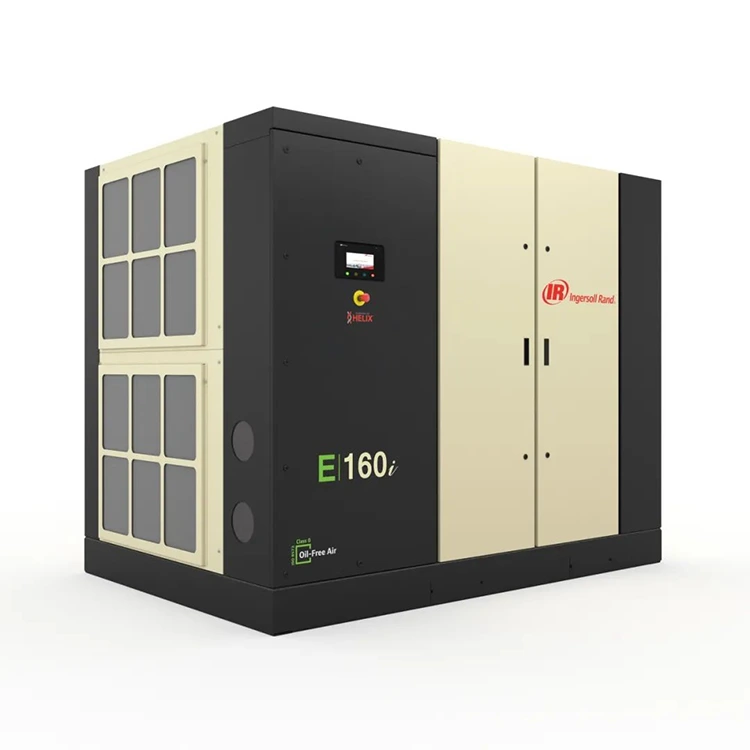

Is the E200-355i 200-355kW Oil-Free Screw Air Compressor the Right Choice for Pharmaceutical Manufacturing

In the pharmaceutical industry, compressed air is not merely a utility—it is a critical raw material that directly contacts products, packaging, and production environments. Selecting the wrong compressor can compromise sterility, trigger regulatory non-compliance, and inflate operational costs. For mid-to-large scale facilities, the E200-355i 200-355kW Oil-Free Screw Air Compressor from GDK has emerged as a serious contender. But does it truly fit the rigorous demands of drug manufacturing? This analysis weighs technical specifications, regulatory alignment, and total cost of ownership to deliver a data-driven verdict.

Why Oil-Free Is Non-Negotiable in Pharma

Regulatory frameworks including EU GMP Annex 1 and FDA 21 CFR Part 11 mandate that compressed air in direct or indirect product contact must contain no more than 0.01 mg/m³ of oil aerosol. Any oil carryover—even at trace levels—risks product recalls, batch rejection, and audit failure.

The E200-355i 200-355kW Oil-Free Screw Air Compressor employs dry screw technology with stainless steel rotors coated with a permanent anti-friction layer. This design eliminates lubrication in the compression chamber, delivering ISO 8573-1 Class 0 certification—the highest purity standard. Unlike oil-injected units that require extensive downstream filtration (which can fail), this compressor provides inherently oil-free air, drastically reducing contamination vectors.

Performance Comparison: E200-355i vs. Alternative Technologies

To determine suitability, we benchmarked the E200-355i 200-355kW Oil-Free Screw Air Compressor against two common alternatives: oil-injected screw compressors with purification and multi-stage centrifugal blowers.

Table 1: Side-by-side evaluation of key operational metrics.

While centrifugal blowers offer marginally better full-load efficiency, they suffer from poor turndown capability—a critical flaw for pharma plants with variable batch demands. The E200-355i with integrated variable speed drive (VSD) maintains >85% efficiency across a 40–100% load range, making it exceptionally adaptable to multi-product facilities.

Total Cost of Ownership (TCO) Analysis

Initial capital expenditure is only one piece of the puzzle. A 5-year TCO model for a typical 24/7 operation reveals:

• Energy: The E200-355i 200-355kW Oil-Free Screw Air Compressor consumes approximately 8–12% less energy than oil-injected equivalents at average loads, translating to $18,000–$25,000 annual savings (at $0.12/kWh).

• Maintenance: No oil separators, no condensate disposal, and extended bearing intervals reduce annual service costs by ~40% compared to oil-injected systems.

• Downtime: GDK’s modular design enables quick component access, reducing mean time to repair (MTTR) to under 4 hours for most common faults.

Over 5 years, the cumulative savings often exceed $120,000, offsetting the higher upfront price within 18–24 months.

FAQ: Common Questions About the E200-355i 200-355kW Oil-Free Screw Air Compressors

Q1: Can the E200-355i 200-355kW Oil-Free Screw Air Compressor operate reliably in high-humidity tropical environments without moisture carryover?

A1: Yes. The E200-355i is equipped with a dual-stage intercooler and aftercooler system that condenses bulk moisture before air enters the drying stage. Additionally, GDK offers an optional high-temperature ambient package (up to 50°C) with oversized cooling fans and corrosion-resistant coatings on all moisture-contact surfaces. For tropical installations, we recommend pairing the compressor with a desiccant dryer rated for -40°C pressure dew point. The integrated dew-point monitoring sensor provides real-time alerts, ensuring that condensate never reaches the downstream distribution network—even during monsoon seasons.

Q2: How does the E200-355i 200-355kW Oil-Free Screw Air Compressor comply with GMP Annex 1 requirements for continuous monitoring and data integrity?

A2: The E200-355i features a native PLC-based control system with 4–20 mA analog outputs for pressure, temperature, motor current, and vibration. These signals integrate directly with building management systems (BMS) or distributed control systems (DCS) via Modbus TCP/IP or Profibus. GDK provides an optional 21 CFR Part 11-compliant data logging module that records all critical parameters with time-stamped audit trails, password-protected access, and electronic signatures. This eliminates the need for manual logbooks and ensures full traceability—a prerequisite for regulatory inspections. Alarm thresholds are fully customizable, and the system automatically generates deviation reports when parameters drift beyond set limits.

Q3: What is the expected bearing replacement interval for the E200-355i 200-355kW Oil-Free Screw Air Compressor, and what signs indicate imminent bearing wear?

A3: Under standard operating conditions (discharge pressure ≤8 bar, ambient ≤40°C), the maintenance-free hybrid ceramic bearings are rated for 50,000 operating hours before replacement. However, GDK recommends condition-based monitoring rather than calendar-based servicing. Key early-warning indicators include: (a) a sustained 5°C rise in discharge temperature at constant load, (b) increased vibration velocity exceeding 4.5 mm/s RMS on the drive-end housing, and (c) a shift in motor current draw of more than 3% from baseline. The onboard vibration analysis module continuously tracks these metrics and generates a preventive maintenance alert at 48,000 hours—giving your team ample lead time to schedule replacement during planned downtime. Bearing replacement typically takes 8–10 man-hours and requires only standard tooling, thanks to the cartridge-style bearing housing design.

Operational Flexibility and Integration

Modern pharmaceutical plants often run multiple production lines with varying air demands—from tablet compression (6 bar) to fermentation aeration (2.5 bar) to pneumatic conveying (5 bar). The E200-355i supports dual-pressure setpoints that can be toggled automatically based on time-of-day schedules or production campaigns. GDK’s proprietary Master Controller can network up to six compressors, sequencing them to maintain optimal efficiency while providing redundant backup—a critical feature for sterile facilities where compressed air cannot be interrupted.

Verdict: Is It the Right Choice?

For pharmaceutical manufacturers meeting any of the following criteria, the E200-355i 200-355kW Oil-Free Screw Air Compressor is not just a good choice—it is the optimal one:

• Sterile production (injectables, ophthalmic, biologics) requiring Class 0 oil-free air

• Fluctuating production schedules benefiting from VSD turndown capability

• Stringent audit environments demanding full data traceability

• Facilities prioritizing 5-year TCO over lowest first-cost

The only scenario where alternative technologies may prevail is a single-load, 24/7/365 base-load application above 90% capacity, where a centrifugal blower offers marginally better efficiency—but even then, the maintenance simplicity and oil-free certainty of the GDK E200-355i often justify the small efficiency trade-off.

Ready to Evaluate the E200-355i for Your Facility?

Every pharmaceutical plant has unique air quality requirements, pipeline layouts, and redundancy needs. A generic recommendation cannot replace a site-specific assessment.

Contact GDK today to request a free on-site compressed air audit and customized TCO projection for your production volume. Our application engineers will analyze your load profile, ambient conditions, and regulatory obligations—then deliver a proposal that includes performance guarantees, installation timelines, and after-sales support packages. Your next batch quality depends on the air you compress—make it count with GDK.
