Is Stranded Loose Tube Armored Fiber Optic Cable Waterproof for Direct Burial
2026-06-12
When planning an outdoor fiber network, one critical question arises: Is Stranded Loose Tube Armored Fiber Optic Cable truly waterproof for direct burial? At Xuben, we engineer cables that withstand harsh underground conditions. The short answer is yes—but only when the cable meets specific construction standards. This blog examines the waterproof design, real-world performance, and common concerns surrounding Stranded Loose Tube Armored Fiber Optic Cable for direct burial applications.
How Does Stranded Loose Tube Armored Fiber Optic Cable Achieve Waterproofing?

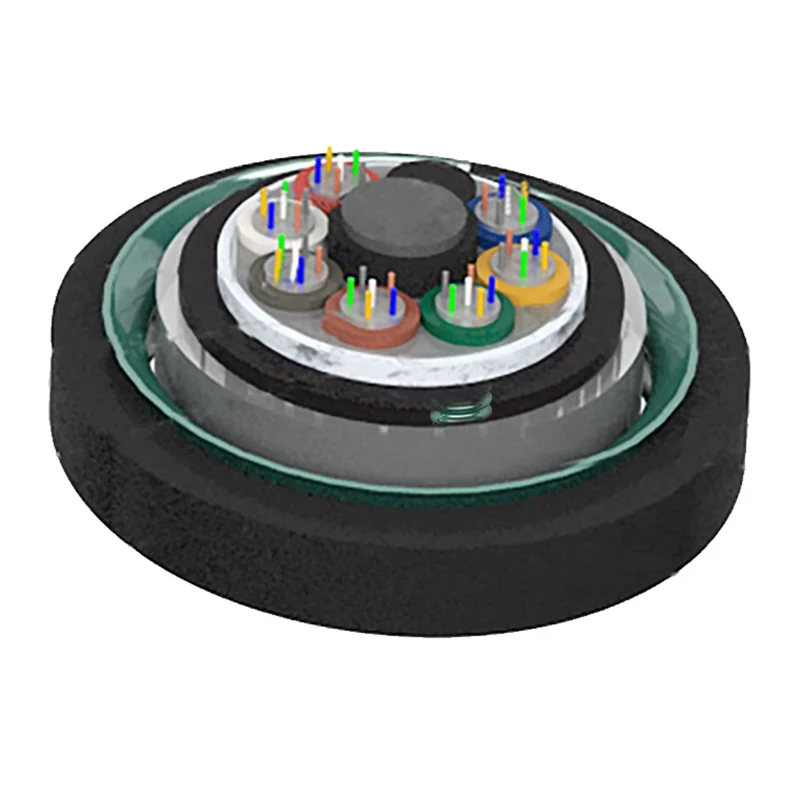

Direct burial exposes cables to moisture, soil acidity, and mechanical pressure. A genuine Stranded Loose Tube Armored Fiber Optic Cable combines several protective layers:
| Feature | Function | Benefit for Direct Burial |
|---|---|---|
| Gel-filled or water-blocking loose tubes | Prevents water migration along fibers | Keeps signals intact |
| Corrugated steel armor | Resists rodent bites and soil stress | Prevents crushing |
| PE outer sheath | Blocks moisture ingress | Long-term underground protection |
| Xuben’s double-sheath option | Extra barrier against water and chemicals | Ideal for high-water-table areas |
Without these elements, moisture penetrates the cable, causing signal loss or complete failure. Xuben’s Stranded Loose Tube Armored Fiber Optic Cable passes stringent water penetration tests (e.g., FOTP‑81), ensuring reliability for years underground.
Key Advantages for Direct Burial
-
Moisture block – Water-blocking tape and gel stop water movement even if the sheath is nicked.
-
Crush resistance – Steel armor handles backfill and heavy equipment overhead.
-
Rodent protection – No need for extra conduit in most soil conditions.
-
Temperature stability – Loose tube design allows fiber expansion without stress.
3 FAQs About Stranded Loose Tube Armored Fiber Optic Cable for Direct Burial
FAQ 1: Can I bury Stranded Loose Tube Armored Fiber Optic Cable directly without any conduit?
Yes, if the cable includes steel armor and a moisture-resistant PE sheath. Xuben’s Stranded Loose Tube Armored Fiber Optic Cable is rated for direct burial without conduit. However, local codes may require a warning tape above the cable. Always check soil conditions: rocky or corrosive soils still benefit from a sand bed or thin conduit.
FAQ 2: How deep should I bury Stranded Loose Tube Armored Fiber Optic Cable for safe operation?
Standard depth for direct burial is 24 to 36 inches (60–90 cm) for residential and light commercial areas. For roads or heavy vehicle zones, go to 48 inches (120 cm). Xuben recommends a depth of 30 inches in normal soil. Mark the route with detectable tape 12 inches above the cable. Depth prevents accidental digging damage and reduces temperature swings.
FAQ 3: Is Stranded Loose Tube Armored Fiber Optic Cable waterproof if the outer jacket gets scratched during installation?
Partial scratches may not cause immediate failure if the armor and water-blocking layers remain intact. Xuben designs Stranded Loose Tube Armored Fiber Optic Cable with redundant barriers: the PE jacket absorbs minor damage, the steel armor stops water horizontally, and the water-blocking tape inside each tube halts vertical ingress. However, deep gouges into the armor require repair or replacement. Always inspect cables after pulling.
Comparison: Stranded Loose Tube Armored Fiber Optic Cable vs. Non-Armored for Direct Burial
| Criteria | Stranded Loose Tube Armored (e.g., Xuben) | Non-Armored |
|---|---|---|
| Water resistance | Excellent (gel + tape + armor + PE sheath) | Poor to fair |
| Rodent protection | Yes (steel armor) | No |
| Crush rating | High (≥ 4000 N/100mm) | Low |
| Conduit required | No | Yes |
| Lifespan underground | 20–30 years | 2–5 years |
Best Practices for Direct Burial with Xuben
-
Step 1: Trench at required depth with a flat, rock-free bottom.
-
Step 2: Lay Stranded Loose Tube Armored Fiber Optic Cable without kinking.
-
Step 3: Cover with 4–6 inches of sand or fine soil, then warning tape.
-
Step 4: Backfill and compact gently. Perform an OTDR test post-installation.
Xuben supports every project with detailed burial guides and 24‑hour technical support.
Final Verdict
Yes, Stranded Loose Tube Armored Fiber Optic Cable is waterproof for direct burial—provided it uses steel armor, water-blocking materials, and a PE outer sheath. Xuben manufactures cables that exceed industry standards (Telcordia GR‑20, ICEA S‑87‑640). For permanent underground links, never settle for unarmored or “burial-style” indoor cables.
Contact us today for a free sample of Xuben Stranded Loose Tube Armored Fiber Optic Cable or a site-specific burial recommendation.
