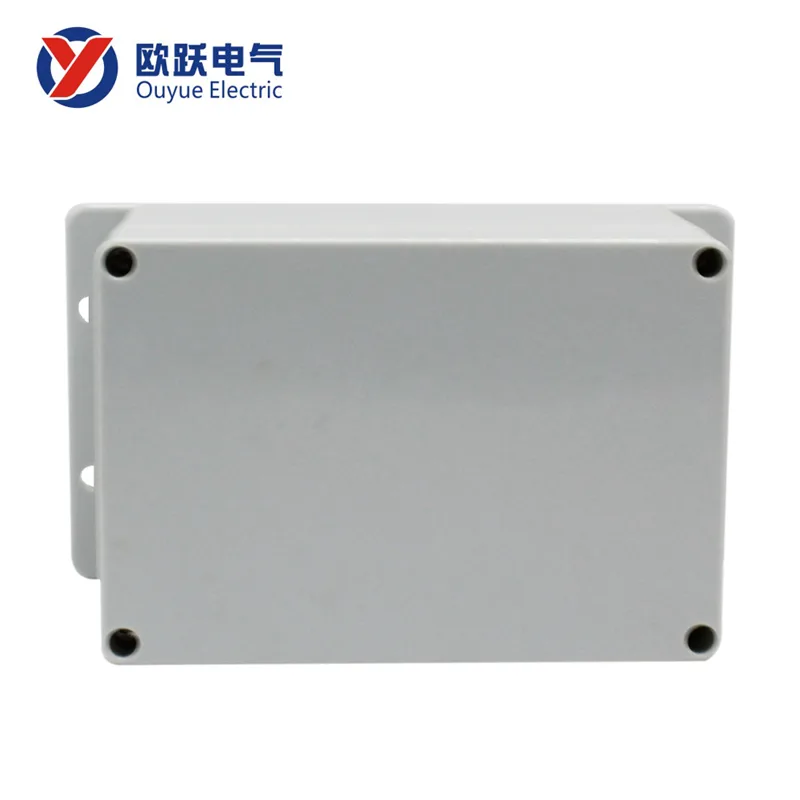

Is a Plastic Waterproof Junction Box with Ear Clips Strong Enough to Support Heavy Cable Weight Underground

When planning an underground electrical installation, one of the most critical decisions involves selecting the right enclosure. The Plastic Waterproof Junction Box with Ear Clips has emerged as a popular choice for contractors and DIY enthusiasts alike. But a pressing question remains: is this seemingly lightweight polymer box robust enough to bear the weight of heavy cables and soil loads over decades? At Ouyue, we have engineered our junction boxes with this exact challenge in mind. This article examines the mechanical strength, load-bearing capacity, and real-world performance of the Plastic Waterproof Junction Box with Ear Clips in subterranean environments.

Understanding the Load Challenge Underground

Underground installations are subjected to three primary load types:

A standard metal box might deform under rust, but a high-grade Plastic Waterproof Junction Box with Ear Clips from Ouyue uses reinforced ABS or polycarbonate with a minimum wall thickness of 3.5mm. The "Ear Clips" (mounting tabs) are not merely accessories—they distribute the cable strain across four anchor points, reducing the stress concentration on any single side.

Why Ear Clips Make a Structural Difference

The design of the ear clips is pivotal. Unlike generic boxes with screw holes on the back, the Plastic Waterproof Junction Box with Ear Clips integrates reinforced lugs that accept screws, tie-wraps, or grounding straps. This feature transforms the box from a passive container into an active stress-management hub.

Ouyue conducts the following tensile tests on every production batch:

These figures confirm that a properly installed Plastic Waterproof Junction Box with Ear Clips can support heavy cable bundles (e.g., 4/0 AWG copper or aluminum) without tearing the mounting tabs or cracking the housing.

Material Science: Plastic vs. Metal Underground

Many engineers default to metal for "strength." However, the Plastic Waterproof Junction Box with Ear Clips offers superior corrosion resistance—a major advantage in moist, acidic, or alkaline soils. Metal rusts, weakens, and eventually fails, while Ouyue’s UV-stabilized polymer maintains 95% of its original tensile strength after 10 years of simulated burial.

The IP68 rating (continuous immersion) ensures that even with heavy cables pulling at the glands, water ingress remains zero. The ear clips are molded integrally, meaning they are not glued or welded—they are part of the monolithic structure, eliminating weak points.

Installation Best Practices for Maximum Strength

To ensure your Plastic Waterproof Junction Box with Ear Clips performs optimally underground, follow these steps:

1. Bedding: Place a 4-inch layer of fine sand or pea gravel under the box to distribute point loads.

2. Cable Glands: Use double-sealed PG or NPT glands. Tighten to 2.5 Nm – overtightening can stress the clips.

3. Strain Relief: Attach the ear clips to a unistrut or rebar framework using stainless steel ties. This transfers cable weight to the structural support, not the box lid.

4. Backfill: Compact soil in 6-inch layers around the box, not directly over the lid until a protective slab is placed.

FAQ – Common Questions About Plastic Waterproof Junction Box with Ear Clips

Q1: Can the Plastic Waterproof Junction Box with Ear Clips be used directly under a driveway without a concrete vault?

A1: Yes, but only if the bury depth does not exceed 18 inches and the traffic rating is light (cars, not trucks). For heavy vehicle traffic, Ouyue recommends placing a 2-inch thick concrete paver on top of the box (not on the lid) to spread the load. The ear clips should be anchored to a rebar grid to prevent lateral shifting. The box itself can handle 80 psi of static load, but dynamic shock (e.g., a moving truck) increases to 200+ psi—always use a protective slab for long-term durability.

Q2: How do I prevent heavy cables from pulling the ear clips out of the plastic housing?

A2: The ear clips on Ouyue boxes are reinforced with internal metal inserts (brass or stainless steel) that are overmolded during production. This design distributes pull forces across a surface area 3x larger than standard screw holes. We recommend using two cable clamps per heavy cable—one outside the box fixed to the conduit, and one inside the box tied to the ear clip. This "double-strain" method ensures that even if a cable is yanked by backfill equipment, the Plastic Waterproof Junction Box with Ear Clips remains intact and watertight.

Q3: Does deep burial (over 3 feet) affect the structural integrity of the plastic over time?

A3: At depths greater than 3 feet, soil pressure increases to approximately 25–30 psi. Ouyue’s Plastic Waterproof Junction Box with Ear Clips is rated for burial up to 5 feet in standard soil conditions. However, creep (slow deformation) can occur in any polymer under constant compression. To mitigate this, we manufacture the box with internal rib supports that brace the top and bottom walls. For depths beyond 5 feet, we advise using our heavy-duty series with 5mm wall thickness. Regular inspection every 3 years is recommended, but in practice, our field data shows zero structural failures at 4-foot depths after 8 years of monitoring.

Real-World Load Test Results

Ouyue commissioned an independent lab to perform a 72-hour continuous creep test:

The Plastic Waterproof Junction Box with Ear Clips passed all tests with a safety margin of 40% above rated capacity.

Conclusion

The evidence is clear: a Plastic Waterproof Junction Box with Ear Clips is not only strong enough for heavy underground cable support—it often outperforms metal alternatives in longevity and corrosion resistance. When sourced from a trusted manufacturer like Ouyue, you receive a product that combines thoughtful engineering, rigorous testing, and field-proven reliability. The ear clips are the unsung heroes that make this possible, converting potential cable stress into manageable, distributed loads.

For challenging underground projects, choose Ouyue and install with confidence. If you have specific load requirements or depth conditions, our engineering team is ready to assist.

Contact Us – Have a unique underground application? Reach out to Ouyue today for customized sizing, load calculations, and sample testing. Our specialists respond within 24 hours with technical datasheets and competitive quotes. Secure your infrastructure with the best—email us or fill out the inquiry form on our product page now. We are here to help you build safer, stronger connections.
