How to Wire a Waterproof Electric Foot Switch Safely
2026-06-15
Wiring a Waterproof Electric Foot Switch correctly is critical for both operator safety and equipment longevity. Whether you are in a medical, industrial, or automotive setting, a high-quality Waterproof Electric Foot Switch from a trusted brand like ZHECHI ensures reliable performance. However, safe installation requires following precise electrical standards. This guide provides professional step-by-step instructions, safety ratings, and answers to common questions about the Waterproof Electric Foot Switch.
Tools and Materials Required
| Item | Specification |
|---|---|
| Waterproof Electric Foot Switch | ZHECHI series (IP67 or higher recommended) |
| Wire strippers | 10-22 AWG capacity |
| Multimeter | For continuity testing |
| Screwdrivers | Flathead and Phillips (insulated) |
| Cable glands | Matched to switch enclosure |
| Rubber gaskets | Pre-installed in ZHECHI models |
| Heat shrink tubing | For moisture sealing |
Step-by-Step Wiring Guide
Follow the table below for a safe and waterproof connection.
| Step | Action | Detail |
|---|---|---|
| 1 | Power disconnection | Isolate the control circuit. Confirm zero voltage with a multimeter. |
| 2 | Open the switch housing | Remove screws on the ZHECHI Waterproof Electric Foot Switch carefully to avoid damaging the sealing gasket. |
| 3 | Identify terminals | Most Waterproof Electric Foot Switch units have three terminals: COM (common), NO (normally open), NC (normally closed). |
| 4 | Strip wires | Remove 6-8 mm of insulation. Avoid nicking copper strands. |
| 5 | Connect wires | Attach the load wire to NO, the power wire to COM. Leave NC unused for standard momentary operation. |
| 6 | Tighten screws | Torque to manufacturer specification (typically 0.5 Nm for ZHECHI switches). |
| 7 | Seal cable entry | Use the supplied cable gland. Tighten until slight resistance, then ¼ turn more. |
| 8 | Test before closing | Press the Waterproof Electric Foot Switch and check continuity between COM and NO. |
| 9 | Close housing | Reinstall screws evenly. Verify the rubber gasket sits flush. |
| 10 | Final functional test | Actuate the switch 5 times while monitoring the connected device. |
Waterproof Electric Foot Switch FAQ – Common Questions
Q1: What happens if water enters the wiring compartment of my Waterproof Electric Foot Switch?
A1: Even a small amount of moisture can cause short circuits, corrosion, and electric shock hazards. ZHECHI Waterproof Electric Foot Switch models feature double-sealed cable glands and silicone gaskets rated IP67, meaning they withstand temporary immersion up to 1 meter for 30 minutes. If water ingress occurs despite proper installation, check three things: (1) the cable gland nut is fully tightened, (2) the outer cable jacket is not nicked, and (3) the housing screws are torqued evenly. Never operate a foot switch with visible internal moisture. Disconnect power immediately, dry the interior with compressed air (below 30 psi), and test insulation resistance. A reading below 1 MΩ indicates permanent damage. Replace the switch with a certified ZHECHI unit to restore safety compliance.
Q2: Can I wire a Waterproof Electric Foot Switch to control both 110V AC and 24V DC in the same circuit?

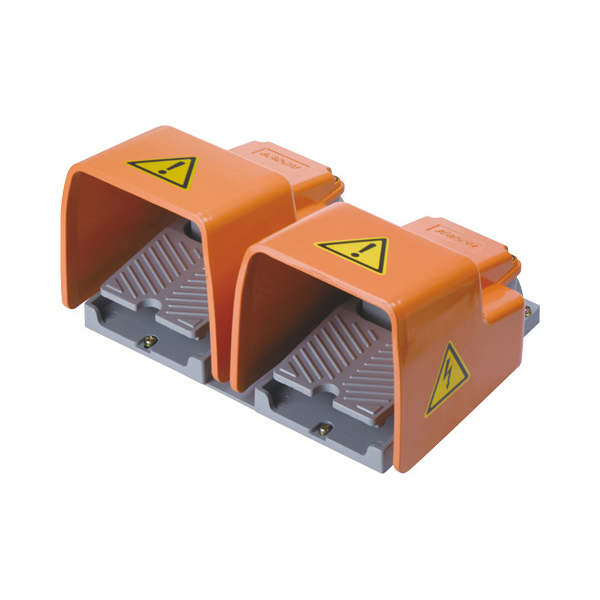

A2: No. Mixing voltage types or levels in a single Waterproof Electric Foot Switch violates electrical codes (NEC 725.3) and creates serious arc flash and fire risks. A Waterproof Electric Foot Switch is designed for one voltage category per contact block. ZHECHI offers dual-circuit models with physically separated chambers for mixed-voltage applications. For example, the ZHECHI FSD series has two independent NO contacts: one rated 250V AC/10A and another rated 30V DC/5A. If you need to control both a 110V AC pump and a 24V DC PLC input, you must use two separate foot switches or a certified dual-channel model. Wiring different voltages to the same terminal will cause electrolytic corrosion, contact welding, or insulation breakdown. Always refer to the specification sheet printed on the ZHECHI Waterproof Electric Foot Switch housing. When in doubt, consult a licensed electrician.
Q3: How often should I test my installed Waterproof Electric Foot Switch for safety?
A3: For industrial or medical environments, test the Waterproof Electric Foot Switch monthly. For outdoor or washdown applications (food processing, car washes), test weekly. The procedure is simple: disconnect power, use a multimeter in resistance mode, press the Waterproof Electric Foot Switch fully, and measure contact resistance. A new ZHECHI switch shows less than 0.1 ohm. Replace when resistance exceeds 1.0 ohm. Additionally, perform a visual seal check every three months. Look for cracked rubber caps, loose cable glands, or discolored terminals. For IP68-rated ZHECHI models used underwater (e.g., submersible pumps), perform a pressure test annually using 0.5 bar air while submerged – no bubbles indicates intact seals. Document each test date and result. A well-maintained Waterproof Electric Foot Switch operates reliably for over 100,000 cycles.
Professional Safety Reminders
-
Always use copper conductors only.
-
Do not exceed the current rating (e.g., ZHECHI models: 10A max at 250V AC).
-
Keep the cable bend radius above 6 times the cable diameter.
-
Replace the switch if the foot pedal feels sticky or the housing shows cracks.
