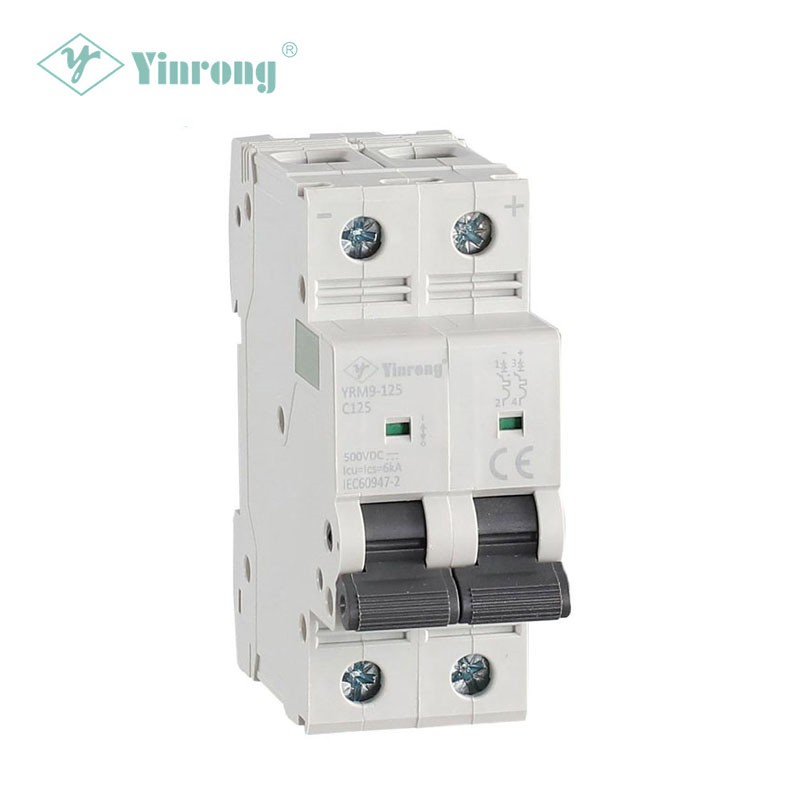

How to Wire a 2P 125A Miniature Circuit Breaker for a Single-Phase High-Power Inverter
2026-06-16
Properly wiring a 2P 125A Miniature Circuit Breaker for a single-phase high-power inverter is critical for system safety and performance. Galaxy Fuse recommends following a structured approach to ensure overcurrent protection and reliable disconnection. This guide covers wiring steps, selection criteria, and common questions.
Step-by-Step Wiring Guide
| Step | Action | Detail |
|---|---|---|
| 1 | Disconnect all power sources | Inverter AC output and main panel must be dead. |
| 2 | Verify breaker rating | 2P 125A Miniature Circuit Breaker must match inverter max AC current (≤125A). |
| 3 | Select correct cable | Use 35–50 mm² copper cable (depending on temperature and run length). |
| 4 | Identify line and load terminals | Top: Line (inverter output), Bottom: Load (distribution panel). |
| 5 | Connect phase and neutral | Phase to L1, Neutral to L2 (both poles switched). |
| 6 | Torque terminals | Follow Galaxy Fuse datasheet: typical torque 3.5–4.0 Nm. |
| 7 | Test insulation and polarity | Before energizing, check for shorts. |
Pro tip: Use a ferrule or lug for stranded cables to reduce contact resistance.
Why Choose **Galaxy Fuse 2P 125A Miniature Circuit Breakers?
| Feature | Benefit |
|---|---|
| 10kA breaking capacity (IEC 60898-1) | Handles inverter fault currents |
| Tripping curve C or D | C for general loads, D for transformer-based inverters |
| Double terminal box | Accepts larger cables up to 70mm² |
| Visible contact indicator | Confirms open/closed status |
FAQ – Common Questions About 2P 125A Miniature Circuit Breakers
Q1: What size cable do I need for a 2P 125A Miniature Circuit Breaker with a 30 kW single-phase inverter?
A1: For a 30 kW single-phase inverter (nominal current ~125A), Galaxy Fuse recommends 35 mm² copper cable for runs under 20 meters. If ambient temperature exceeds 40°C or cable length exceeds 20 meters, upgrade to 50 mm². Always verify voltage drop (≤2%) and termination compatibility with the breaker’s terminal range (typically 16–70 mm²). Undersized cables cause overheating and nuisance tripping.
Q2: Can I wire the inverter output directly to a 2P 125A Miniature Circuit Breaker without a main switch?
A2: Yes, a 2P 125A Miniature Circuit Breaker can serve as both overcurrent protection and a disconnecting means for the inverter, provided the breaker is rated for load-break operation. Galaxy Fuse models are suitable for isolation per IEC 60947-2. However, local electrical codes (e.g., NEC 705.12) may require an additional visible-blade disconnect within sight of the inverter. Check your jurisdiction before omitting a dedicated switch.
Q3: Why does my 2P 125A Miniature Circuit Breaker trip randomly even though inverter current stays below 110A?
A3: Random tripping often stems from harmonic distortion or inrush currents from motor-driven appliances on the same distribution. High-power inverters can produce peak currents 1.5–2x nominal during sudden load changes. Galaxy Fuse suggests replacing a standard C-curve breaker with a D-curve 2P 125A Miniature Circuit Breaker (10–20x In magnetic trip) if harmonic content exceeds 15%. Also check for loose terminal connections – infrared thermography can detect overheating without load imbalance.
SEO-Optimized Checklist for Safe Installation
-
Use 2P 125A Miniature Circuit Breaker with at least 10kA breaking capacity (or higher if inverter is near main service).
-
Mount breaker in a UL/IEC-rated enclosure with IP40 minimum.
-
Label both poles: “INVERTER AC OUTPUT – Galaxy Fuse 125A MCB”.
-
Perform a sequential start: close breaker first, then start inverter.
Contact Galaxy Fuse for Technical Support
Correctly wiring a 2P 125A Miniature Circuit Breaker protects your inverter investment and ensures electrical safety. For custom curves, DIN-rail adapters, or assistance with an existing installation, contact us directly with your system specs. Our engineers provide free wiring diagram reviews and cross-reference support for all 2P 125A Miniature Circuit Breakers. Reach out today via the contact form on the Galaxy Fuse website.
