How to Select Collimated Laser Diodes for Precision Applications
2025-09-01
Choosing the right collimated laser diode is critical for applications that demand high precision, stability, and reliability. Whether used in biomedical instrumentation, metrology, alignment systems, or industrial sensing, a well-selected collimated Laser Diode ensures optimal performance and longevity. This guide provides a detailed overview of the key parameters to consider, along with practical insights into evaluating specifications. We will also highlight the advanced capabilities of Wavespectrum’s collimated laser diode series, showcasing how our products meet rigorous industrial standards.
https://www.fibercoupled-laser.com/collimated-laser-diode
Understanding Collimated Laser Diodes

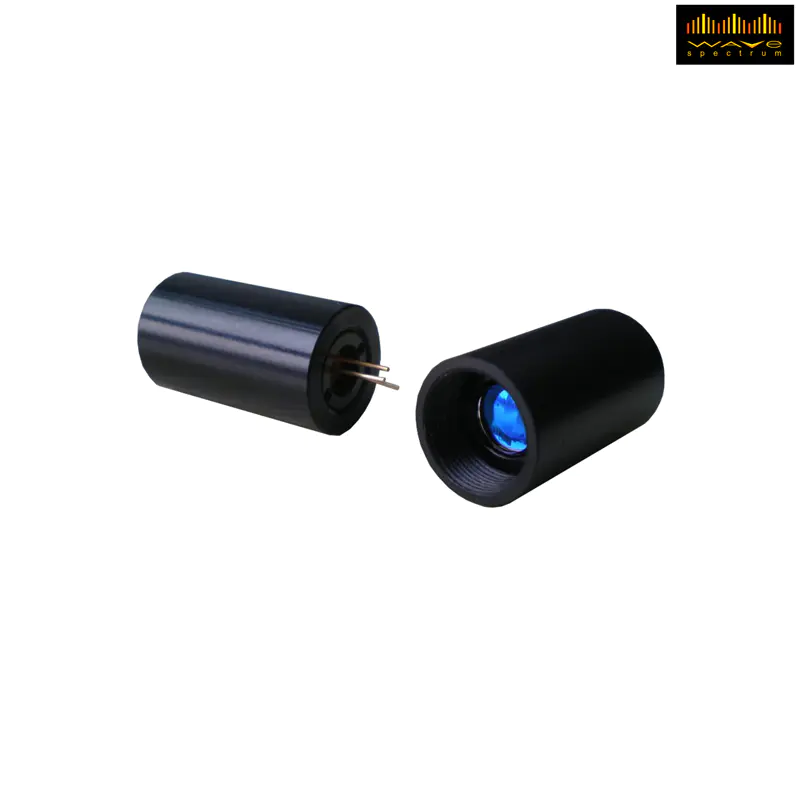

A Collimated Laser Diode is a semiconductor device that emits a coherent light beam which is collimated—meaning the light rays are parallel, resulting in a narrow, focused beam with low divergence. This is achieved by integrating a laser diode with collimating optics, such as lenses or optical assemblies. The collimation process is essential for applications where beam consistency over distance is crucial.
Key Parameters for Selecting Collimated Laser Diodes
To make an informed decision, it’s important to evaluate the following parameters:
1. Wavelength
The wavelength of the laser diode, measured in nanometers (nm), determines how the laser interacts with materials. Common wavelengths include 405nm (violet), 450nm (blue), 635nm (red), 780nm (infrared), and 1064nm (IR). Your choice should align with your application’s requirements, such as visibility, material absorption, or detection sensitivity.
2. Output Power
Output power, measured in milliwatts (mW) or watts (W), influences the intensity and usability of the laser beam. Higher power outputs are suitable for applications requiring greater visibility or energy delivery, but may require more sophisticated heat management.
3. Beam Divergence
Beam divergence, expressed in milliradians (mrad), defines how much the beam spreads over distance. Lower divergence values indicate better collimation and a more stable beam over longer distances.
4. Collimation Method
The optical assembly used—such as aspheric lenses, gradient-index (GRIN) lenses, or custom optical systems—affects the quality and consistency of the collimated beam. High-precision lenses reduce aberrations and improve beam shape.
5. Operating Voltage and Current
These electrical parameters determine the power requirements and compatibility of the laser diode with your system. Typical operating voltages range from 2V to 5V, with currents varying from tens to hundreds of milliamps.
6. Operating Temperature Range
The ambient temperature range within which the laser diode performs optimally is crucial for stability. Industrial and scientific applications often require a broad operating temperature range.
7. Beam Diameter
The initial diameter of the collimated beam out of the lens assembly affects how the laser can be integrated and focused in the application.
8. Lifetime and Reliability
Measured in hours, the lifetime indicates the expected operational duration under specified conditions. High-quality laser diodes offer longer lifetimes and better reliability.
Wavespectrum Collimated Laser Diode Series: Technical Specifications
At Wavespectrum, we engineer our Collimated Laser Diodes for precision, efficiency, and durability. Below is a summary of our key product series and their specifications.
Table 1: Key Parameters of Wavespectrum Collimated Laser Diodes
| Parameter | WCL-405 Series | WCL-450 Series | WCL-635 Series | WCL-780 Series | WCL-1064 Series |
|---|---|---|---|---|---|
| Wavelength (nm) | 405 | 450 | 635 | 780 | 1064 |
| Output Power (mW) | 5 - 100 | 10 - 200 | 1 - 50 | 5 - 100 | 10 - 500 |
| Beam Divergence (mrad) | ≤0.5 | ≤0.5 | ≤0.8 | ≤0.6 | ≤0.7 |
| Operating Voltage (V) | 3.0 - 3.6 | 3.2 - 3.8 | 2.8 - 3.4 | 3.0 - 3.6 | 3.4 - 4.0 |
| Operating Current (mA) | 30 - 150 | 40 - 200 | 20 - 120 | 30 - 150 | 50 - 400 |
| Beam Diameter (mm) | 1.2 - 2.5 | 1.5 - 3.0 | 1.5 - 2.8 | 1.6 - 3.0 | 2.0 - 4.0 |
| Operating Temperature (°C) | -10 to +50 | -10 to +50 | -10 to +50 | -10 to +60 | -10 to +60 |
| Lifetime (hours) | ≥10,000 | ≥10,000 | ≥15,000 | ≥12,000 | ≥10,000 |
Applications of Collimated Laser Diodes
Collimated laser diodes are used across various high-precision fields, including:
-
Metrology and Alignment: Ensuring accurate measurements and straight-line references in construction and manufacturing.
-
Biomedical Devices: Used in flow cytometry, DNA sequencing, and diagnostic equipment.
-
Barcode and QR Scanning: Enabling fast and accurate reading in retail and logistics.
-
LIDAR and Sensing: Providing reliable source beams for environmental and industrial sensing.
-
Holography and Imaging: Supporting high-resolution imaging systems with stable coherent light.
Why Choose Wavespectrum Collimated Laser Diodes?
Wavespectrum’s laser diodes are designed with an emphasis on:
-
High Precision Optics: Custom-designed collimation lenses for minimal divergence and beam distortion.
-
Robust Construction: Devices are built to withstand varying operational conditions without performance degradation.
-
Compliance with International Standards: Our products meet ISO and IEC standards for quality and safety.
-
Customization Options: We offer tailored solutions for specific wavelength, power, and optical requirements.
Conclusion
Selecting the right Collimated Laser Diode requires careful attention to technical parameters and a clear understanding of your application’s needs. With Wavespectrum’s range of high-performance laser diodes, you get a combination of precision engineering, reliability, and technical support that ensures success in even the most demanding environments.
We invite you to experience the difference that a professionally engineered collimated laser diode can make. Reach out to us with your requirements at [email protected], and let’s discuss how we can support your projects with cutting-edge laser solutions.
