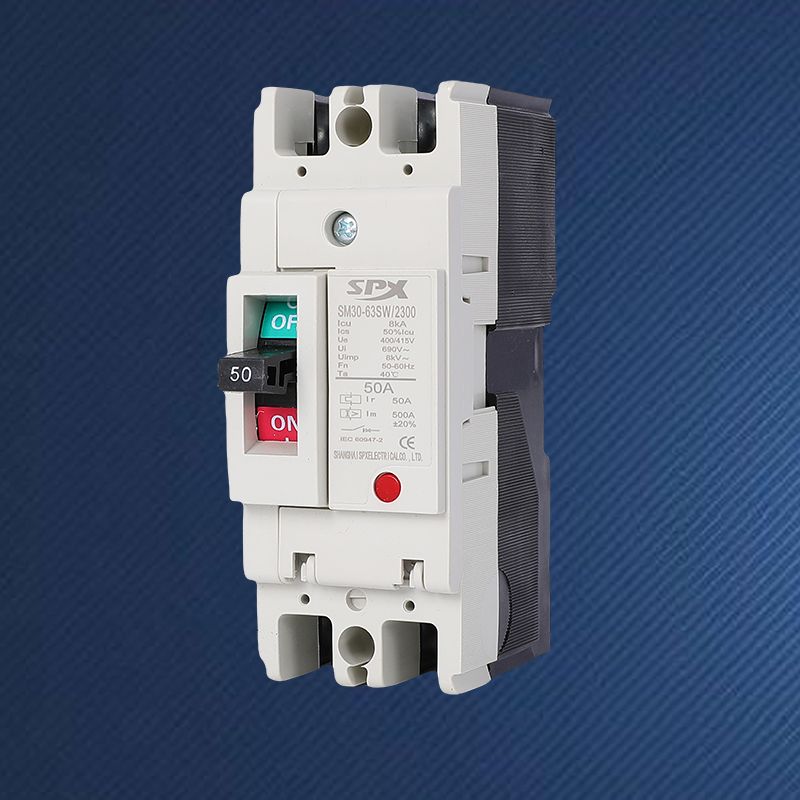

How to Properly Select a 2P 63A Molded Case Circuit Breaker for a Residential Distribution Box

Selecting the right 2P 63A Molded Case Circuit Breaker for a residential distribution box is critical for safety and performance. A mismatch can lead to nuisance tripping, overheating, or even fire hazards. SPX provides high-quality solutions in this category, but understanding the selection process ensures your system operates reliably for years.

Key Selection Criteria

Choosing a 2P 63A Molded Case Circuit Breaker involves evaluating several technical parameters. The table below outlines the essential factors when integrating into a residential distribution box.

Step‑by‑Step Selection Process

1. Calculate the total load – Sum all continuous and peak currents on the circuit. For a 63A rating, the continuous load should not exceed 80% (≈50.4A) per NEC guidelines.

2. Confirm pole configuration – In a residential distribution box, 2P means switching both line and neutral. This is mandatory for circuits where the neutral is not at ground potential.

3. Verify breaking capacity – Residential fault currents rarely exceed 6kA, but verify with your utility. SPX breakers typically offer 6kA or 10kA options.

4. Match tripping characteristics – For motor‑driven appliances (compressors, lifts), select a C‑curve 2P 63A Molded Case Circuit Breaker. For purely resistive loads (heaters, lighting), B‑curve suffices.

5. Check physical dimensions – Distribution boxes have limited DIN rail slots. Ensure the breaker’s width (typically 36mm per pole → 72mm for 2P) fits.

6. Certifications – Look for IEC 60898‑1 or UL 1077 marks. SPX models carry international approvals for residential use.

Common Mistakes to Avoid

• Undersizing wire gauge – 63A requires at least 10 mm² copper (or 16 mm² aluminum)

• Using a 1P breaker – This leaves neutral unprotected, violating many wiring codes

• Ignoring ambient temperature – Above 40°C, derate the breaker (contact SPX for derating charts)

2P 63A Molded Case Circuit Breaker FAQ

What happens if I install a 2P 63A molded case circuit breaker on a circuit that only draws 20A continuously?

The breaker will not trip under normal conditions because 20A is well below the 63A rating. However, the wiring must be sized for 63A (≥10 mm²), otherwise the wires can overheat before the breaker responds. This creates a fire risk. Always match breaker rating to the smallest wire gauge in the circuit.

Can a 2P 63A molded case circuit breaker be used as a main switch for a residential distribution box?

Yes, but with conditions. A 2P 63A Molded Case Circuit Breaker can serve as both a main switch and overcurrent protection if the utility supply does not exceed 63A. For higher incoming currents (e.g., 80A service), you need a higher‑rated main breaker. Additionally, ensure the breaker’s breaking capacity exceeds the prospective short‑circuit current at the service entry.

How do I test if my existing 2P 63A molded case circuit breaker is still functional without special equipment?

Perform a manual trip test: With the breaker in the ON position, press the “TEST” button (usually marked T or white). The breaker should snap to the TRIP or OFF position. Reset by moving to OFF then ON. If it does not trip, or if the handle feels loose, replace immediately. SPX recommends professional testing every two years using a calibrated trip‑time analyzer.

Why Choose SPX for Your Residential Distribution Box

SPX engineers 2P 63A Molded Case Circuit Breaker units with double‑break contacts and flame‑retardant housings. Each unit undergoes 100% dielectric and thermal calibration. When you install an SPX breaker, you gain:

• Clear trip indication (red/green flags)

• Finger‑safe terminals (IP20)

• 24‑month warranty with technical support

Final Checklist Before Purchase

• Load calculation ≤ 50.4A continuous

• Wire size ≥ 10 mm² copper

• Distribution box has 72mm free width

• Breaking capacity ≥ prospective fault current

• SPX model number matches your panel brand

Contact Us

Selecting the correct 2P 63A Molded Case Circuit Breaker can be complex, but the team at SPX is ready to help. Contact us for a free load analysis, product datasheets, or distribution box layout advice – simply fill out the form on our website or call your local SPX representative today.
