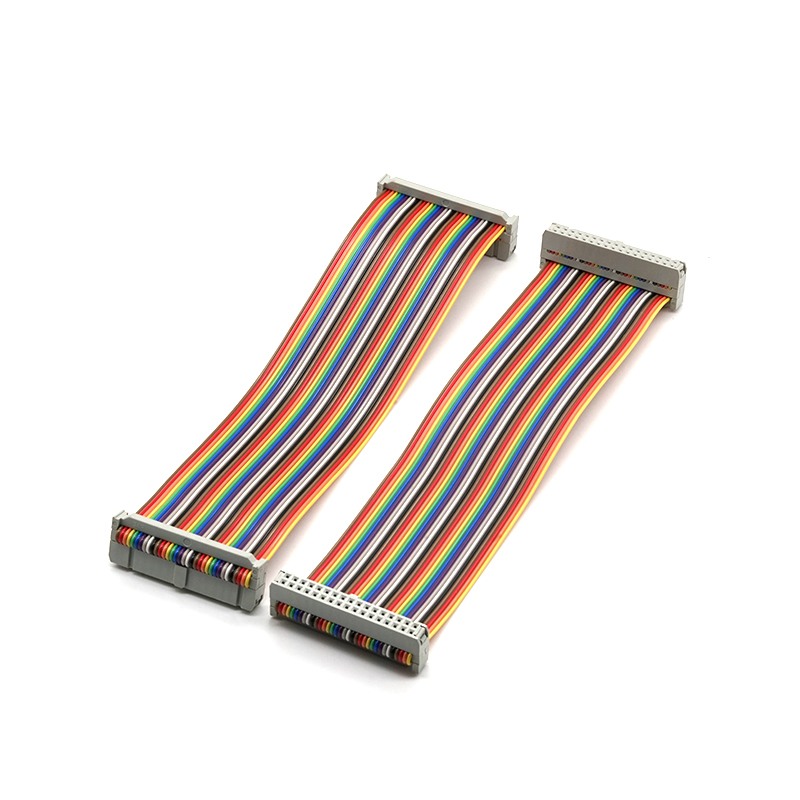

How to Choose the Right IDC Flat Cable for Your Project

Selecting the correct components is fundamental to any project's success, and connectivity solutions are no exception. IDC Flat Cables, also known as ribbon cables, are a staple in electronics for their reliability and organized signal transmission. However, not all cables are created equal. Choosing the wrong one can lead to signal integrity issues, connection failures, or physical incompatibility. This guide will walk you through the critical parameters to consider, helping you make an informed decision for your application. For engineers and procurement specialists seeking dependable performance, specifying JYE's precision-engineered cables ensures a perfect match for your design requirements.

Key Parameters for Selection

To select the ideal IDC Flat Cable, evaluate the following specifications against your project's needs:

1. Conductor Specifications:

   • Pitch: The center-to-center distance between adjacent conductors. The most common pitches are 1.27mm (0.050"), 2.0mm (0.078"), and 2.54mm (0.100").

   • AWG: The wire gauge, typically ranging from 28 AWG (thinner) to 24 AWG (thicker), affecting current capacity and flexibility.

   • Stranding: Solid conductors offer better contact in IDC terminations, while stranded conductors provide superior flex life.

2. Cable Construction & Materials:

   • Conductor Material: High-purity, oxygen-free copper is standard for optimal conductivity.

   • Insulation: PVC is common for general use; polyethylene offers lower capacitance for high-speed signals.

   • Shielding: Foil or braid shielding is crucial for applications susceptible to Electromagnetic Interference (EMI).

3. Connector & Termination:

   • Connector Type: Match the connector (e.g., D-Sub, IDC header, PCB transition) to your mating interface.

   • Contact Plating: Tin or selective gold plating on the IDC contacts ensures reliable, corrosion-resistant connections.

   • Strain Relief: Integrated strain relief bars or clips prevent wire pull-out and enhance cable durability.

For a quick comparison of JYE's standard offerings, refer to the table below:

IDC Flat Cable FAQ

Q: Can I customize the length and color of an IDC Flat Cable?
A: Yes, absolutely. At JYE, we specialize in customization. You can specify exact cut lengths and choose from a variety of standard jacket colors (like gray, blue, or rainbow) for easy circuit identification and organization within your assembly.

Q: What is the main advantage of the IDC (Insulation Displacement Connection) termination?
A: The primary advantage is speed and consistency. The IDC termination process allows all conductors to be connected simultaneously in a single, precise press operation. This eliminates the need for individual wire stripping and soldering, reducing assembly time and potential human error, resulting in highly reliable, gas-tight connections.

Q: How do I decide between a shielded and an unshielded cable?
A: Choose a shielded IDC flat cable if your application involves sensitive signals or operates in environments with significant electrical noise (EMI/RFI). This includes industrial automation, medical devices, or high-fidelity audio equipment. For general internal wiring within enclosures with low noise, an unshielded cable from JYE is typically sufficient and more cost-effective.

Making the right choice in cabling is a decisive step toward project reliability. By carefully assessing pitch, gauge, shielding, and construction, you ensure seamless integration and long-term performance. JYE's commitment to precision manufacturing and rigorous testing means every IDC flat cable delivers consistent quality and durability, directly supporting your design integrity.

Have specific requirements or need expert guidance for your next project? Contact our technical support team today to discuss how JYE's solutions can work for you.
