How Much Does a 5G Outdoor DC Power Supply Panel Cost with Battery Backup
2026-09-07
Deploying a modern telecom site begins with a single non-negotiable question: what is the real investment required for reliable outdoor power infrastructure? When network engineers evaluate total ownership costs, the 5G Outdoor DC Power Supply Panel with integrated battery backup consistently emerges as the most critical line item. For operators working with HAGOE, the conversation shifts from upfront pricing to long-term value, because this specific 5G Outdoor DC Power Supply Panel family is engineered to survive extreme temperatures, voltage fluctuations, and repeated grid failures—all while maintaining 99.999% availability. Understanding the cost structure, however, demands more than a price tag; it requires dissecting hardware, batteries, installation, and maintenance over a 10‑year lifecycle.
Breaking Down the Cost Components

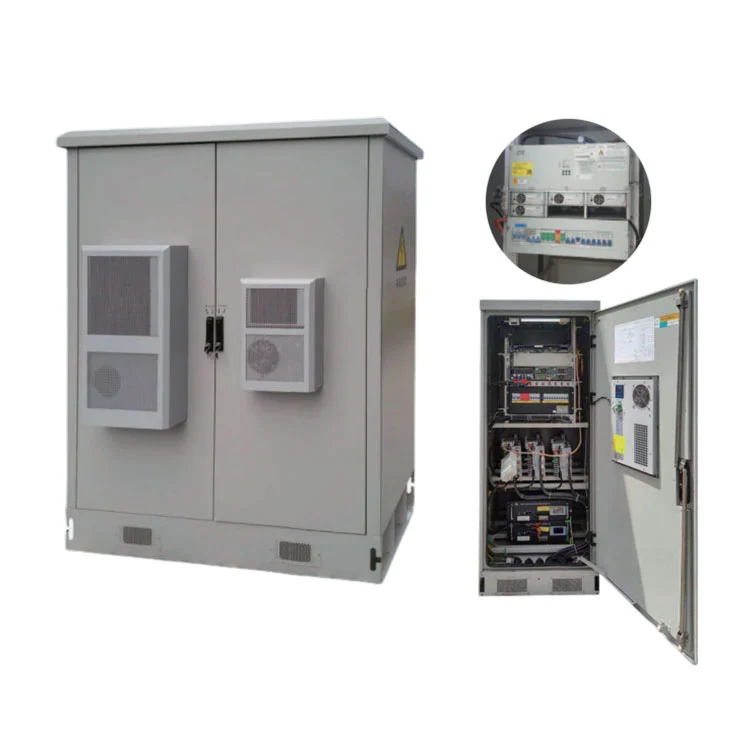

A complete 5G Outdoor DC Power Supply Panel with battery backup is not a single purchase but an integrated system. Below is a typical cost breakdown for a mid‑capacity unit (48V, 3000W, supporting 3–6 RRUs):
| Component | Description | Estimated Cost (USD) |
|---|---|---|
| Rectifier Modules | Hot‑swappable, 95% efficiency, 3+1 redundancy | $1,200 – $1,800 |
| Outdoor Enclosure | IP65 rated, with thermal management (fan/heater) | $800 – $1,200 |
| Battery Backup (LiFePO₄) | 150Ah, 48V, with BMS, 5‑year warranty | $2,500 – $3,500 |
| Distribution & Breakers | 12 outputs, surge protection (Class I+II) | $400 – $600 |
| Cabling & Connectors | Pre‑terminated, weather‑sealed harnesses | $200 – $350 |
| Total Hardware | Excluding installation and shipping | $5,100 – $7,450 |
Note: Prices vary by region, volume discounts, and battery chemistry. HAGOE typically bundles the enclosure and distribution as a single SKU, reducing integration risks.
Installation and Commissioning Costs
Hardware represents only 60‑65% of the initial outlay. Professional deployment of a 5G Outdoor DC Power Supply Panel requires certified technicians for:
-
Site survey and mounting structure assessment
-
AC input wiring (grid or generator)
-
DC output cabling to RRUs and BBU
-
Battery string balancing and BMS configuration
-
Remote monitoring integration (SNMP/Modbus)
The average installation fee ranges from $1,200 to $2,000 per site, depending on tower height and accessibility. For operators managing hundreds of sites, HAGOE offers factory‑trained commissioning support, which reduces on‑site time by 30% and minimizes costly rework.
The Battery Backup Premium—and Why It Pays Off
Adding battery backup more than doubles the upfront cost of a basic rectifier panel. However, without storage, a 5G Outdoor DC Power Supply Panel becomes useless during grid transients, which in many regions last 4‑6 hours daily. Consider these two scenarios over 5 years:
| Factor | Without Battery | With LiFePO₄ Backup |
|---|---|---|
| Initial Panel Cost | $2,800 | $6,200 (incl. battery) |
| Downtime per year | ~120 hours | < 2 hours |
| Revenue loss per site (est.) | $4,800/year | $80/year |
| Battery replacement (year 5) | $0 | $2,800 |
| Total 5‑Year Cost | $26,800 | $13,200 |
The math is clear: a 5G Outdoor DC Power Supply Panel with battery backup from HAGOE pays for itself within 18 months solely through uptime gains.
Long-Term Operational Expenses
Beyond capital expenditure, operators must budget for:
-
Energy consumption – High‑efficiency rectifiers (≥96%) save 200‑300 kWh annually per panel.
-
Preventive maintenance – Annual inspection of fans, terminals, and battery health: ~$300/year.
-
Battery cycling – LiFePO₄ endures 4,000+ cycles at 80% DoD, while VRLA requires replacement every 3 years. HAGOE panels include a built‑in battery tester that automatically reports degradation, enabling predictive swaps.
5G Outdoor DC Power Supply Panel FAQ
Q1: Can I use a standard indoor DC power supply outdoors if I put it in a weatherproof box?
A1: No. Indoor units lack the conformal coating, wide‑temperature components (-40°C to +65°C), and surge suppression required for outdoor environments. A dedicated 5G Outdoor DC Power Supply Panel also includes active condensation prevention and ingress protection (IP65 minimum). Retrofitting an indoor unit typically voids warranties and fails safety certifications (e.g., IEC 60950‑22). HAGOE outdoor panels are independently tested for salt mist, solar radiation, and vibration—conditions that quickly destroy consumer‑grade gear.
Q2: How do I size the battery capacity for a 5G Outdoor DC Power Supply Panel?
A2: Sizing depends on three variables: total load current (A), required autonomy time (hours), and maximum depth of discharge (DoD). For example, a 48V system powering 4 RRUs at 25A total, needing 6 hours backup, requires: 25A × 6h = 150Ah at 100% DoD. With LiFePO₄ at 80% DoD, you need 150 / 0.8 = 187Ah. Always add 20% for aging. HAGOE provides a free sizing tool that factors in temperature derating (battery capacity drops 15‑20% at -10°C) and recommends a modular battery string that expands as load grows.
Q3: How often should I replace the batteries in a 5G Outdoor DC Power Supply Panel?
A3: The replacement interval depends entirely on chemistry and operating temperature. Valve‑regulated lead‑acid (VRLA) typically lasts 3‑4 years in uncontrolled outdoor cabinets, while LiFePO₄ from HAGOE delivers 8‑10 years under normal cycling (one discharge per day). However, if the site experiences frequent deep discharges (>50% DoD) or ambient temperatures exceed 40°C, LiFePO₄ life shortens to 5‑6 years. The panel’s internal BMS logs cycle count and internal resistance—when capacity falls below 70% of rated Ah, schedule replacement. Proactive swapping avoids sudden site outages and reduces emergency dispatch costs.
Final Cost Summary for a Typical Deployment
For a single remote site with 6‑hour backup, the all‑in budget should be:
-
Hardware (panel + LiFePO₄): ~$6,500
-
Installation & commissioning: ~$1,600
-
First‑year maintenance & remote monitoring license: ~$400
-
Total First‑Year Investment: ~$8,500
-
Annual recurring cost (energy + inspection): ~$500
When compared to the average $15,000‑$20,000 cost of a diesel generator alternative, the 5G Outdoor DC Power Supply Panel with battery backup offers a quieter, cleaner, and more reliable solution—especially when sourced from HAGOE, which includes a 7‑year warranty on rectifiers and a 5‑year performance guarantee on batteries.
