How Long Can the Siemens 6XV1830-0EH10 PROFIBUS Cable Run

When engineers design a PROFIBUS DP network, one of the first questions that arises is how far the Siemens 6XV1830-0EH10 cable can reliably carry data. As a specialist supplier of industrial communication cabling, Xin Yuan works with system integrators, OEMs, and plant maintenance teams every day who need a clear, standards-based answer to this question. The Siemens 6XV1830-0EH10 is a shielded, twisted-pair PROFIBUS DP cable designed for fast, deterministic fieldbus communication, and its maximum run length depends on baud rate, node count, and proper termination practice.

Understanding the Cable Construction

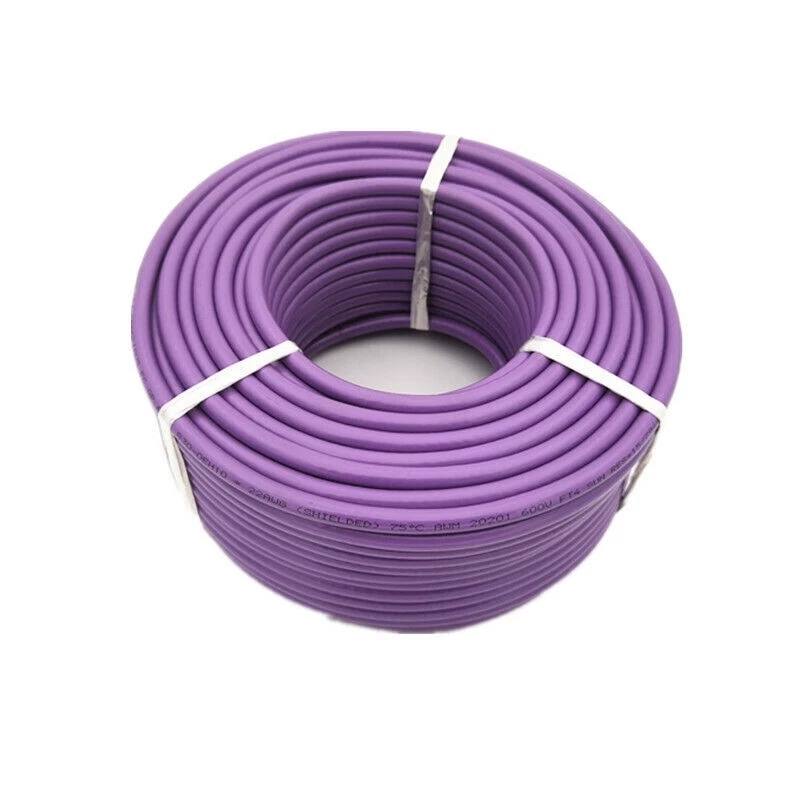

The Siemens 6XV1830-0EH10 is a PROFIBUS DP bus cable with a characteristic impedance of approximately 150 ohms. It uses a twisted-pair design with a solid or stranded copper conductor, an aluminum foil shield, a braided copper shield, and a PVC or PUR outer jacket depending on the variant. This construction is what allows it to support RS-485 transmission at rates from 9.6 kbit/s up to 12 Mbit/s.

Maximum Segment Length by Baud Rate

PROFIBUS DP defines strict segment limits. The Siemens 6XV1830-0EH10 is engineered to meet these limits when installed correctly:

These figures assume a single bus segment with up to 32 nodes and proper active termination at both ends.

What Affects the Real-World Run Length

Several factors can reduce the achievable distance below the theoretical maximum:

• Number of nodes: Each added device increases capacitive loading and signal attenuation.

• Termination quality: Missing or incorrect terminating resistors cause reflections and data errors.

• Cable routing: Running parallel to high-voltage cables introduces electromagnetic interference.

• Connector quality: Poorly crimped or mismatched connectors add impedance discontinuities.

• Repeaters: Using a PROFIBUS repeater allows extension beyond one segment, but each repeater consumes a node address and adds latency.

How to Extend Beyond One Segment

If the required distance exceeds the limits in the table above, engineers typically use one of the following methods:

1. Install a PROFIBUS repeater to join two segments and regenerate the signal.

2. Use fiber optic conversion for galvanic isolation and distances up to several kilometers.

3. Reduce the baud rate where the application permits slower cycle times.

4. Split the network into multiple segments with dedicated masters or gateways.

Xin Yuan supplies the Siemens 6XV1830-0EH10 along with compatible connectors, terminators, and repeaters, so customers can build a complete, standards-compliant segment rather than mixing components from unknown sources.

FAQ

Question: What is the maximum length of a single PROFIBUS segment using the Siemens 6XV1830-0EH10 cable?
Answer: The maximum length depends on the baud rate. At 9.6 kbit/s to 187.5 kbit/s, a single segment can reach 1,200 meters. At 500 kbit/s it is limited to 400 meters, at 1.5 Mbit/s to 200 meters, and at 3 Mbit/s to 12 Mbit/s the limit is 100 meters. These values assume up to 32 nodes, correct 150-ohm termination at both ends, and proper shielding and grounding throughout the segment.

Question: Can I exceed 1,200 meters by using multiple Siemens 6XV1830-0EH10 cable segments?
Answer: Yes, but not by simply joining cables end to end. You must insert a PROFIBUS repeater between segments. Each repeater regenerates the signal and allows another full segment length at the same baud rate. However, repeaters count as nodes, add propagation delay, and should be limited in number. For very long runs or electrically noisy environments, fiber optic conversion is often the more reliable choice.

Question: Does cable quality affect how far the Siemens 6XV1830-0EH10 can run?
Answer: Absolutely. The Siemens 6XV1830-0EH10 is manufactured to strict impedance, capacitance, and shielding tolerances. Substandard or counterfeit cable may have higher attenuation, inconsistent impedance, or inadequate shielding, which reduces achievable distance and causes intermittent communication faults. Purchasing from a trusted supplier such as Xin Yuan ensures the cable meets the original specification and performs as expected in demanding industrial environments.

Conclusion

The Siemens 6XV1830-0EH10 is a dependable PROFIBUS DP cable, but its run length is governed by baud rate and installation quality, not by the cable alone. Respect the segment limits, terminate properly, and use repeaters or fiber where distance demands it. For genuine Siemens 6XV1830-0EH10 cable, connectors, and technical support, contact Xin Yuan today to discuss your project requirements and receive a tailored quotation.
