How Does the Physical Design of a Square Body Fuse Enhance Its Performance
2026-03-12

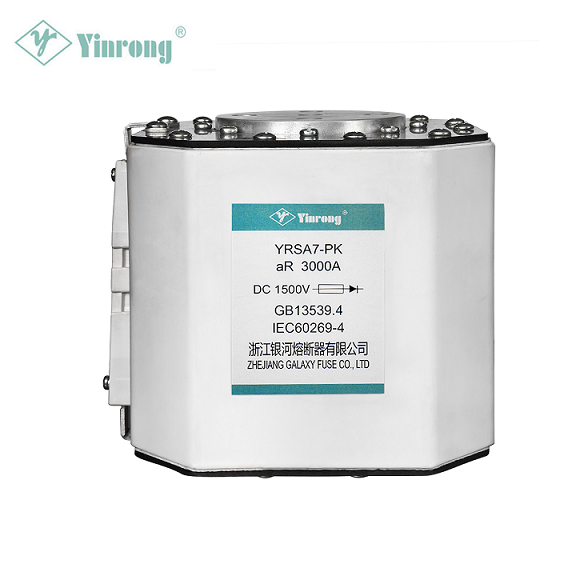

When engineers evaluate circuit protection components, the Square Body High Speed Fuse stands out for its distinctive construction. Yinrong has engineered these devices with specific physical characteristics that directly contribute to superior electrical performance and reliability in demanding applications.
Core Design Elements and Their Functional Benefits
The physical architecture of a Square Body High Speed Fuse is not arbitrary—every dimension and material choice serves a purpose. Below is a detailed breakdown of how specific design features enhance performance:
| Design Feature | Physical Characteristic | Performance Enhancement |
|---|---|---|
| Body Geometry | Compact square ceramic body | Maximizes surface area for heat dissipation while minimizing panel space |
| Contact Configuration | Blade or bolted connections | Ensures low contact resistance and stable mounting under vibration |
| Arc Quenching Material | High-purity silica sand | Rapidly extinguishes arcs during interruption, reducing let-through energy |
| Element Design | Silver or copper elements with controlled cross-section | Provides precise time-current characteristics and high interrupting capacity |
Material Selection and Thermal Management
The square body construction utilizes advanced ceramic materials that offer exceptional thermal conductivity and mechanical strength. Yinrong selects these materials specifically to:
-
Withstand repeated thermal cycling without degradation
-
Maintain dimensional stability under short-circuit conditions
-
Provide superior arc quenching capabilities compared to cylindrical alternatives
-
Enable higher voltage ratings within compact footprints
Dimensional Advantages in Practical Applications
The square form factor delivers measurable benefits in real-world installations. Unlike traditional cylindrical fuses, the square body design allows for:
-
Optimized busbar connections with increased contact area
-
Reduced inductance due to shorter current paths
-
Improved heat transfer through flat mounting surfaces
-
Easier visual inspection and replacement in dense panels
These physical characteristics make the Square Body High Speed Fuse particularly effective in power conversion equipment, UPS systems, and variable frequency drives where space constraints and thermal management are critical concerns.
Frequently Asked Questions
What specific physical feature of a Square Body High Speed Fuse improves its interrupting capacity?
The combination of a compact ceramic body filled with precisely graded silica sand creates an optimal environment for arc extinction. When the fuse element melts, the sand absorbs thermal energy and forms fulgurites, which increase dielectric strength and rapidly quench the arc. This physical arrangement allows Yinrong fuses to achieve interrupting ratings up to 200kA while maintaining compact dimensions suitable for modern equipment.
How does the terminal design of a Square Body High Speed Fuse affect electrical performance?
The integral blade or bolted terminals are physically designed to minimize contact resistance and maximize current transfer efficiency. Unlike wire leads or ferrule ends, these terminals provide large contact surfaces that remain cool under load. The physical robustness prevents loosening from thermal expansion cycles, ensuring consistent performance throughout the fuse's service life in high-vibration environments.
Why is the square ceramic body superior to glass or plastic alternatives for high-speed applications?
Yinrong engineers specify high-strength ceramic bodies because they offer superior mechanical strength and thermal shock resistance. When clearing faults, internal pressures can exceed 100 atmospheres—ceramic withstands these forces without fracturing. Additionally, the material's thermal conductivity draws heat away from the element during normal operation, reducing aging effects and extending service life compared to insulating materials.
Conclusion and Technical Support
The physical design of a Square Body High Speed Fuse directly enables its exceptional performance in protecting sensitive power electronics. From material selection to dimensional optimization, every aspect of Yinrong construction serves to enhance current-carrying capability, interrupt fault currents efficiently, and maintain reliability throughout thousands of operating hours.
For detailed application engineering assistance or to request samples for your specific requirements, contact our technical team today. Yinrong specialists can help you select the optimal Square Body High Speed Fuse configuration for your power conversion, motor drive, or UPS application.
