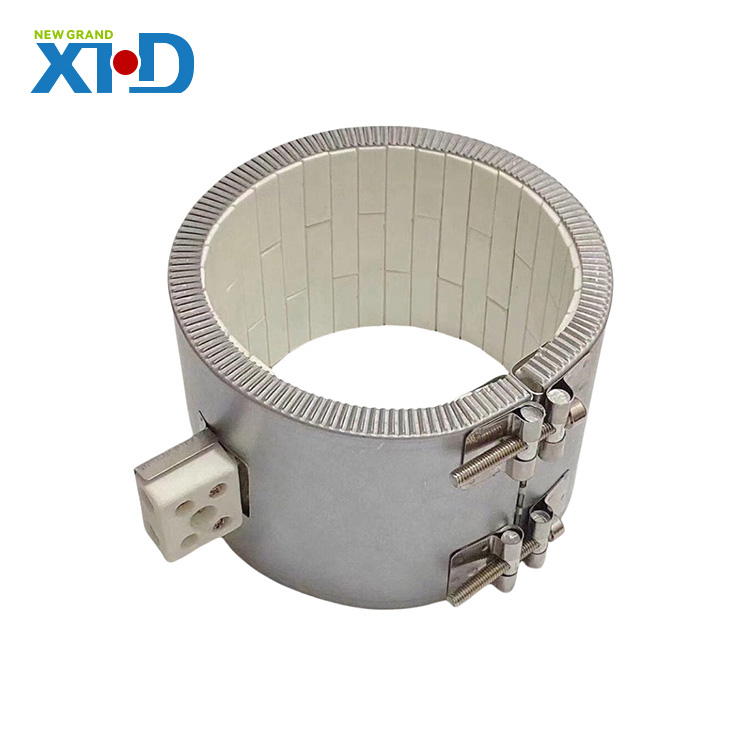

How Does the Design of a a Ceramic Band Heater Improve Heating Efficiency
2026-01-13
In the world of industrial heating, achieving uniform, reliable, and energy-efficient heat transfer is paramount for processes like plastic injection molding or extrusion. While several options exist, the ceramic band heater stands out for its superior performance. At Xinhongda, we leverage decades of engineering expertise to refine this design, ensuring our clients benefit directly from these inherent efficiency advantages. But what specific design elements make it so effective?
The core design of a ceramic band heater is a masterclass in focused thermal engineering. Unlike older technologies, its architecture directly targets and minimizes common sources of energy waste.
Key Design Features for Optimal Efficiency:
-
High-Temperature Ceramic Insulation: The molded ceramic segments provide exceptional electrical insulation and thermal stability. They withstand temperatures exceeding 750°C, preventing breakdown and ensuring consistent heat flow toward the target barrel, not into the surrounding air.
-
Uniform Coil Embedding: The resistance wire (nichrome or similar) is precision-wound and fully embedded within the ceramic grooves. This creates perfect, consistent contact, eliminating hot spots and cold gaps for even heat distribution.
-
Rugust Metal Cladding: The stainless-steel outer sheath protects the internal components and, crucially, ensures maximum surface contact with the barrel. This minimizes air gaps—a major source of thermal loss—and improves heat conduction.
-
Optimized Heat Transfer Surface: The inner diameter is often machined to a precise finish or custom-sized to match the application barrel perfectly, further enhancing conductive heat transfer.
The following table summarizes how these design choices directly combat inefficiency:
| Design Component | Function | Efficiency Impact |
|---|---|---|
| Ceramic Insulation | Contains and directs heat inward | Reduces radial heat loss to the environment |
| Embedded Coil | Provides uniform heat generation | Eliminates uneven temperatures and energy spikes |
| Metal Cladding | Maximizes contact with barrel | Improves conductive transfer; minimizes air gap loss |
| Compact Form Factor | Concentrates heat on target area | Delivers focused energy, reducing warm-up time and waste |
Ceramic Band Heater FAQ
Q: How long does a ceramic band heater typically last compared to a mica heater?
A: A well-manufactured ceramic band heater from a quality supplier like Xinhongda significantly outlasts mica heaters. While mica heaters may degrade faster under thermal cycling, the robust ceramic construction resists oxidation and physical breakdown, often providing 2-3 times the service life in demanding applications.
Q: Can ceramic band heaters be repaired if the coil breaks?
A: Generally, no. The coil is permanently encased within the solid ceramic insulation and metal cladding for safety and performance integrity. Attempting to repair it compromises the unit. The correct action is to replace the heater, ensuring continued safety, efficiency, and process reliability.
Q: Are ceramic band heaters suitable for all temperature ranges?
A: They excel in medium to high-temperature applications, typically ranging from 300°C to 750°C (572°F to 1382°F). For very low-temperature processes, other heater types might be considered. Consulting with an expert at Xinhongda can ensure you select the optimal heater for your specific temperature profile.
In summary, the efficiency of a ceramic band heater is no accident—it is the direct result of intentional design focusing on superior insulation, uniform heat generation, and optimal mechanical contact. By choosing a heater built with these principles, you invest in reduced energy consumption, consistent product quality, and lower long-term operational costs.
