How Does Temperature Affect the Performance of a Single Mode Laser Diode

2026-06-24

Temperature is one of the most critical environmental factors influencing the operation of photonic semiconductors. For engineers and system integrators working with Single Mode Laser Diode modules, understanding thermal behavior is not optional—it is essential for maintaining wavelength stability, output power consistency, and long-term reliability. At Wavespectrum, we have observed that even a 5°C shift in case temperature can alter key specifications enough to degrade system performance in telecom, sensing, and medical applications.

This article examines the physical mechanisms behind temperature-induced changes, provides quantitative reference data, and offers practical mitigation strategies for users of Single Mode Laser Diode products.

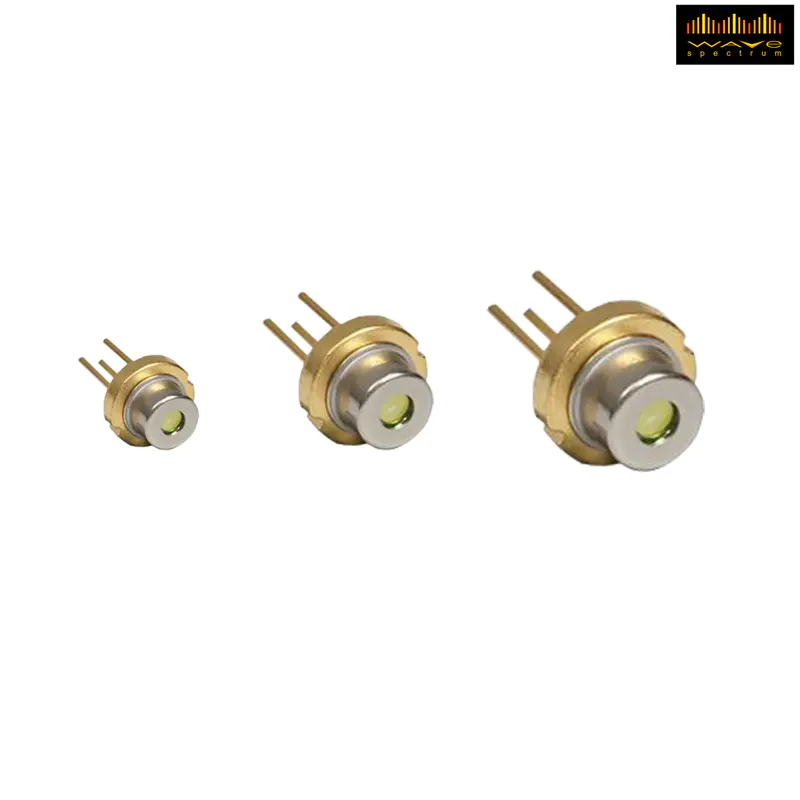

Single Mode Laser Diode

1. Wavelength Shift: The Dominant Thermal Effect

The peak emission wavelength of a Single Mode Laser Diode changes with temperature primarily due to two phenomena:

  • Refractive index variation with temperature (dn/dT) in the active layer

  • Bandgap shrinkage in the semiconductor material (Eg decreases as T rises)

For standard InGaAsP or AlGaAs materials, the typical coefficient is 0.3–0.4 nm/°C. This means a 25°C to 65°C swing produces a 12–16 nm drift—enough to miss the passband of a dense wavelength-division multiplexing (DWDM) filter.

Temperature (°C) Wavelength (nm) Relative Power (mW) Threshold Current (mA)
15 1549.2 18.5 12.1
25 1550.0 18.0 14.3
45 1551.6 16.2 18.7
65 1553.4 13.8 24.5

Table 1: Typical performance drift of a 1550 nm Single Mode Laser Diode under constant bias current (data representative of Wavespectrum WS‑1550‑SM series).


2. Output Power and Slope Efficiency Degradation

As junction temperature rises, the internal quantum efficiency drops due to increased non-radiative recombination (Auger effect) and intervalence band absorption. The slope efficiency (mW/mA) decreases linearly with temperature. For a constant-current drive, this results in measurable power roll-off.

Conversely, operating a Single Mode Laser Diode at low temperature (e.g., 10°C) boosts efficiency but risks condensation on the facet unless hermetic sealing is employed—Wavespectrum modules include integrated TEC and dry‑gas sealing to address this.


3. Threshold Current Increase

The threshold current (Ith) follows an exponential relationship with temperature:

Ith(T) = Ith(25°C) × exp[(T - 25)/T0]

where T0 (characteristic temperature) ranges from 60 K to 150 K for high‑quality devices. A lower T0 indicates higher thermal sensitivity. For a Single Mode Laser Diode with T0 = 80 K, raising T from 25°C to 55°C increases Ith by approximately 45%, forcing the drive circuit to supply more current to reach lasing threshold—this in turn generates additional heat, creating a positive feedback loop.


4. Lifetime and Reliability Implications

Accelerated aging tests show that the median failure time of a Single Mode Laser Diode halves for every 10°C increase in junction temperature (Arrhenius model). The primary wear-out mechanisms include:

  • Facet catastrophic optical damage (COD) at elevated power density

  • Ohmic contact degradation due to interdiffusion

  • Solder creep in the die-attach layer, increasing thermal resistance

Wavespectrum performs 100% thermal cycling from –40°C to +85°C on all Single Mode Laser Diode shipments, ensuring that derating curves are validated per Telcordia GR‑468.


5. Practical Thermal Management Strategies

To maintain stable performance, consider these proven approaches:

Strategy Effectiveness Implementation Cost Recommended For
TEC (thermoelectric cooler) with PID control ★★★★★ High DWDM, coherent sensing
Passive heat sink + thermal pad ★★★ Low Short‑range, low‑power links
Current derating (reducing bias at high T) ★★★★ None (software) All systems
Wavelength lock using etalon feedback ★★★★★ Very High Precision spectroscopy

Wavespectrum offers plug‑and‑play TEC‑controlled butterfly packages that stabilize the Single Mode Laser Diode junction temperature within ±0.05°C, effectively nullifying all the issues described above.


Frequently Asked Questions (FAQ) About Single Mode Laser Diode Thermal Performance

Q1: Can I operate a Single Mode Laser Diode without a TEC if my ambient temperature is stable at 25°C?

A1: Technically yes, but only if your application tolerates the inherent wavelength drift of 0.3–0.4 nm/°C and you maintain the case temperature within ±1°C using a large heat sink. However, even with stable ambient, self‑heating from the bias current raises the junction temperature by 5–15°C above the case. For any application requiring fixed wavelength over > 10 minutes of operation—such as Raman spectroscopy or coherent detection—we strongly recommend a TEC. Wavespectrum provides TEC‑less versions only for low‑duty‑cycle or battery‑operated devices where size and power constraints override spectral precision.

Q2: How do I measure the actual junction temperature of my Single Mode Laser Diode during operation?

A2: The most practical method is the wavelength‑shift method: measure the peak wavelength at a known low‑current (non‑lasing) condition at 25°C, then again at your operating bias. Using the manufacturer’s supplied dλ/dT coefficient (e.g., 0.35 nm/°C), calculate ΔT = Δλ / (dλ/dT). Add this ΔT to the 25°C baseline. Alternatively, some Wavespectrum modules include an integrated thermistor and a lookup table that directly outputs junction temperature via the monitoring pin. For lab environments, a thermal camera can inspect the submount, but this is less accurate (±2°C). The wavelength method, combined with forward‑voltage change (ΔVf/ΔT ≈ –2 mV/°C), gives the best correlation.

Q3: What happens if I exceed the maximum rated case temperature (e.g., 70°C) for a Single Mode Laser Diode?

A3: Exceeding the absolute maximum rating triggers a cascade of failures: first, the threshold current rises beyond the driver’s compliance voltage, causing the laser to drop out of lasing mode (coherence loss). Second, the increased internal optical power density accelerates facet oxidation, leading to sudden COD within minutes to hours. Third, the solder layer under the chip undergoes recrystallization, permanently increasing thermal resistance—even after cooling, the device will never recover its original slope efficiency. In practice, Wavespectrum devices include a hardware over‑temperature shutdown that cuts bias current at 72°C to prevent permanent damage. If you anticipate ambient > 65°C, please consult our engineering team for a custom‑selected Single Mode Laser Diode with high‑T0 epitaxy (up to 150 K) and Au‑Sn eutectic die attachment.


Conclusion

Temperature is not a secondary parameter—it is a primary design variable for any Single Mode Laser Diode system. From wavelength accuracy to lifespan, every performance metric hinges on thermal control. By implementing proper heatsinking, TEC regulation, and current derating, you can achieve stable, repeatable results that meet rigorous industrial standards.

At Wavespectrum, we engineer our Single Mode Laser Diode products with built‑in thermal sensors, calibrated lookup tables, and comprehensive characterization data for every batch. Whether you need a 1310 nm source for OTDR or a 1550 nm laser for FMCW LiDAR, our application notes provide temperature‑compensated drive profiles to simplify your design.


Ready to stabilize your laser performance?
Contact our photonics support team today for a thermal design review of your Single Mode Laser Diode application. Visit Wavespectrum official website or email us directly—we will respond within 4 business hours with tailored recommendations, test data, and sample evaluation kits. Let us help you keep your wavelength locked and your system reliable, from prototype to production.
